25 6. Conveyor Unit Section 6-6. PCB Guide 18 Rear S.T .D 19 20 1 1 12 10 2 2 5 8 9 1 3 4 6 7 17 15 13 16 14 18 Rear S.T .D 19 20 1 1 12 10 2 2 5 8 9 1 3 4 6 7 17 15 13 16 14 No. Part No. Part Name Q'ty Remarks Date…
24
6. Conveyor Unit Section

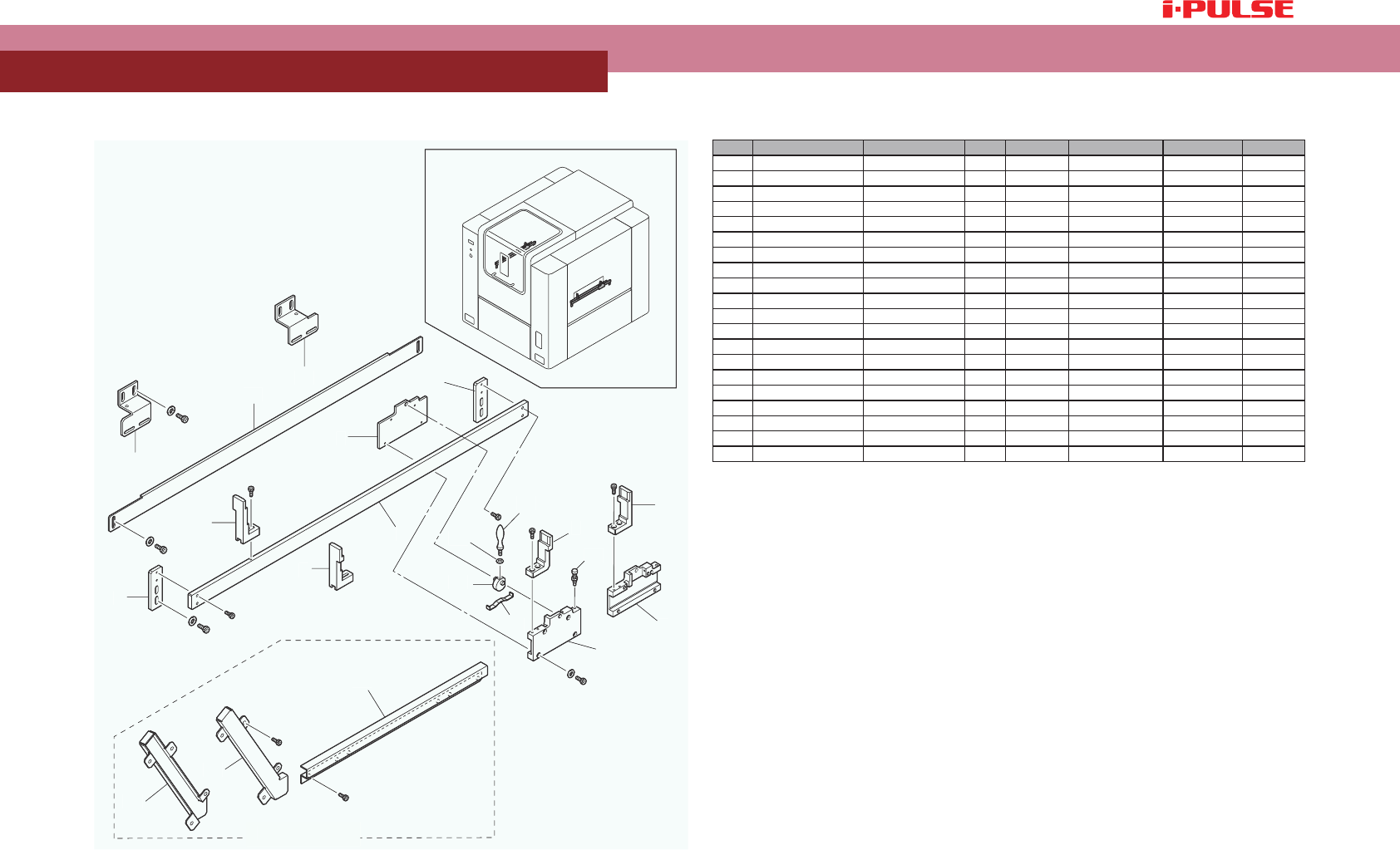

6-5. Shatter
17
21
20
25, 26
24
16
1
10
11
22
9
6
12
13
2
8
14
18
7
4
15
3
5
19
23
17
21
20
25, 26
24
16
1
10
11
22
9
6
12
13
2
8
14
18
7
4
15
3
5
19
23
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE2-M9501-00 PLATE,BASE 2
2 LE2-M9502-01 BRACKET,SHUTTER 2
3 LE2-M9503-00 ANGLE,DOG 1 (L Type)
4 LE2-M9504-00 ANGLE,DOG 1 (R Type)
5 LE2-M9505-00 PLATE,DOG 2
6 LE2-M9506-00 SHAFT,JOINT 2
7 LE2-M95A1-00 SHEET,TUNGSTEN 2
8 LE2-M950A-00 PLATE,SHUTTER 2
9 LE2-M950B-00 AIR CYLINDER 2
10 LE2-M950C-01 SLIDE SHAFT 4
11 LE2-M950D-01 SLIDE UNIT 4
12 LE2-M950E-00 WIRE SPRING 2
13 90990-28J079 WASHER,PLAIN 2
14 LE2-M950G-00 BRACKET,SWITCH 2 (R Type)
15 LE2-M950H-00 BRACKET,SWITCH 2 (L Type)
16 LE2-M950J-00 STAY,SENSOR 2
17 LE2-M950K-00 BRACKET,VALVE 2
18 LE2-M950L-01 COLLAR,JOINT 4
19 $TS4-01M JOINT 4
20 $TL6-01 JOINT 2
21 LG0-M90AK-00 MUFFLER 4
22 $SC4-M5A SPEED CONTROLLER 4
23 LE2-M90H1-00 LIMIT SW 4
24 LC9-M26H0-00 PHOTO SENSOR 2
25 LE2-M6544-00 SHT(R) SV ASSY 1 (R Type)
26 LE2-M6545-00 SHT(L) SV ASSY 1 (L Type)
25
6. Conveyor Unit Section

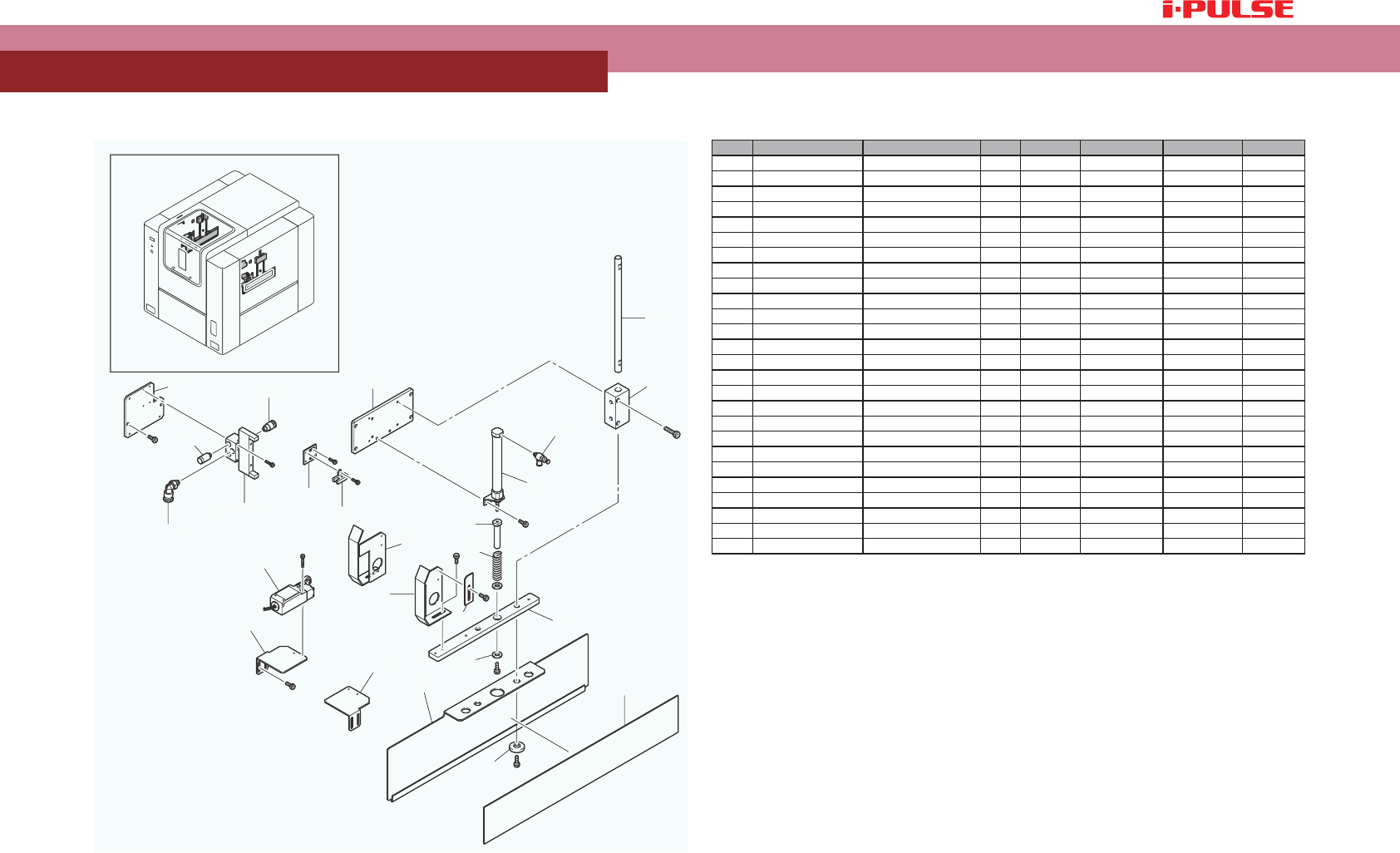

6-6. PCB Guide
18
Rear S.T.D
19
20
11
12
10
2
2
5
8
9
1
3
4
6
7
17
15
13
16
14
18
Rear S.T.D
19
20
11
12
10
2
2
5
8
9
1
3
4
6
7
17
15
13
16
14
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE2-M9601-00 GUIDE,PCB 2
2 LE2-M9602-00 PLATE,PCB 4
3 LE2-M9603-00 BLOCK,ADJUSTER 1 (R Type)
4 LE2-M9603-10 BLOCK,ADJUSTER 1 (L Type)
5 LE2-M9604-00 PLATE,ADJUSTER 2
6 LE2-M9605-00 BLOCK,PCB 1 (R Type)
7 LE2-M9605-10 BLOCK,PCB 1 (L Type)
8 LE2-M9606-00 BLOCK,PCB 1 (R Type)
9 LE2-M9606-10 BLOCK,PCB 1 (L Type)
10 LE2-M9607-00 PLATE,PCB 2
11 LE2-M9608-03 BRACKET,SENSOR 1 (R Type)
12 LE2-M9608-13 BRACKET,SENSOR 1 (L Type)
13 LE2-M9609-00 CAM,ADJUSTER 2
14 LE2-M960A-00 LEAF SPRING,PCB 2
15 LE2-M96A1-00 GRIP 2
16 90990-28J120 WASHER,PLAIN 2
17 90990-33J035 BOLT STOPPER 2
18 LE2-M960C-00 COVER,CABLE 2
19 LE2-M960D-00 COVER,CABLE 1 (R Type)
20 LE2-M960E-00 COVER,CABLE 1 (L Type)
26
7. Marker Pen Unit Section (Option)

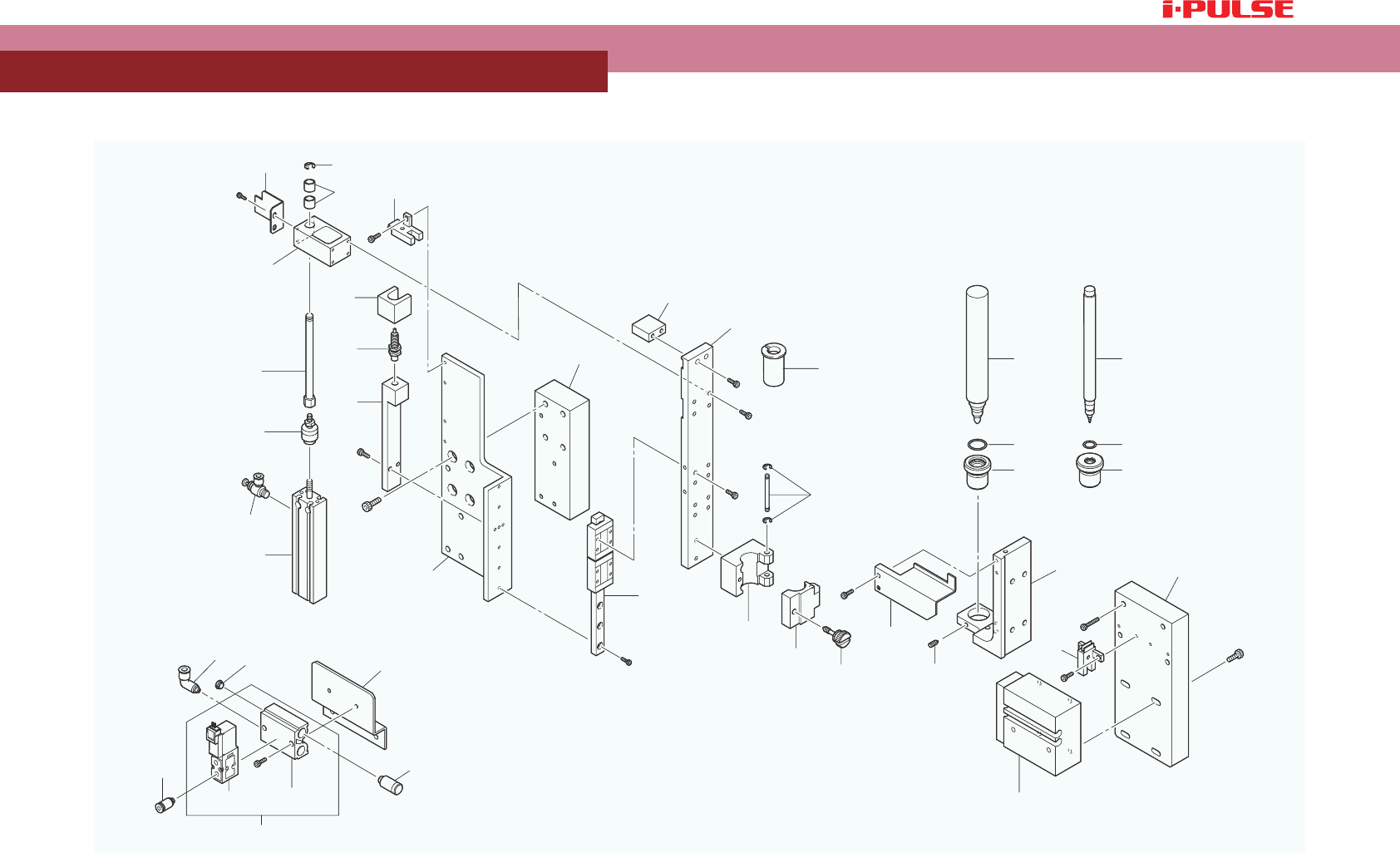

7-1. Marker Pen Unit (Option)
