14 4. X-Ray Section 4-2. X-Ray Camera No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 LE2-M714V-00 BASE,ACS 1 2 LE2-M7142-00 PLATE,CAMERA 1 3 LE2-M7143-00 PLATE,CAMERA 1 4 LE2-M714W-00 STAN…

100%1 / 32
13
4. X-Ray Section

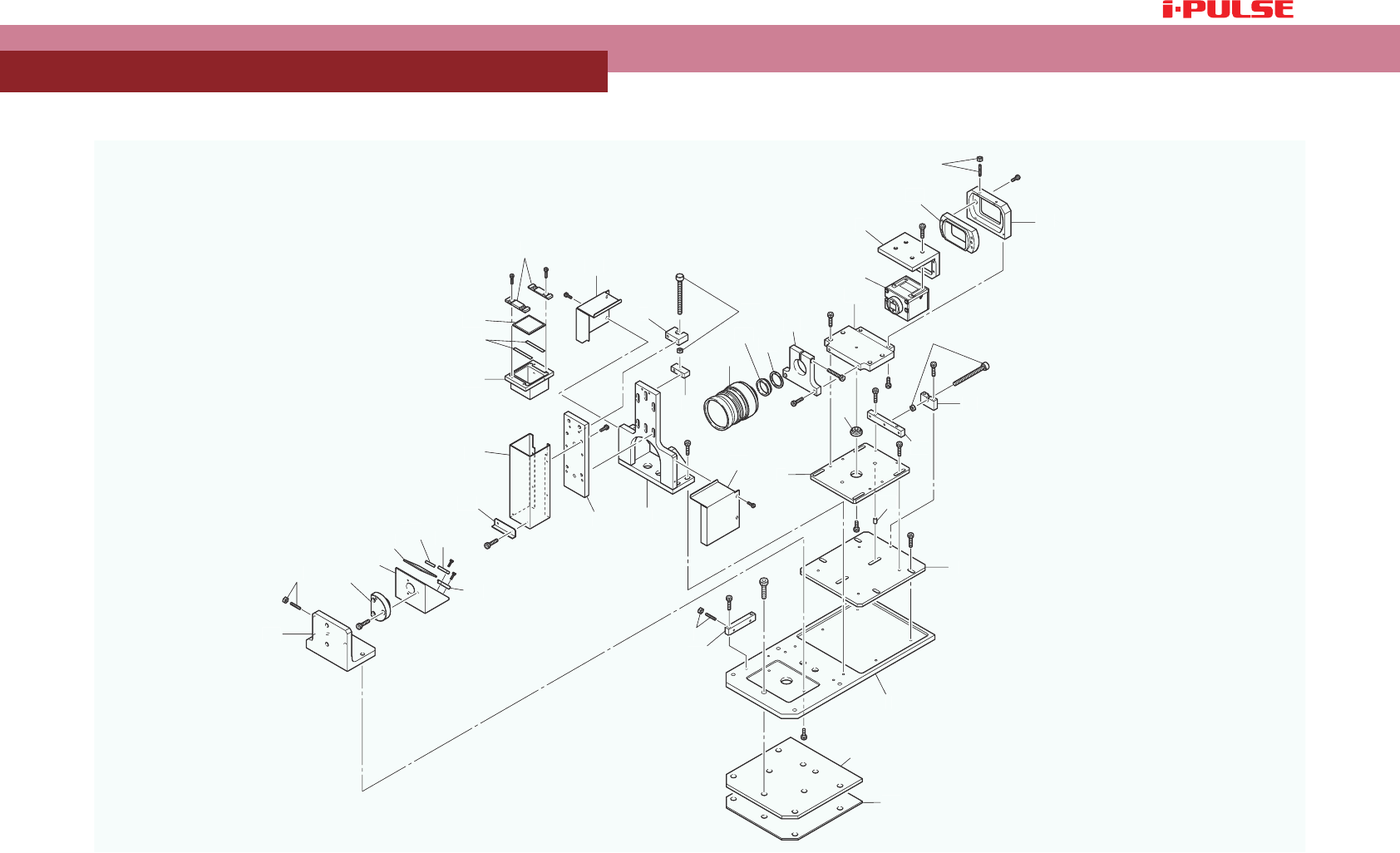

4-2. X-Ray Camera
6
33
24
20
29
5
41
15
27
1
2
3
30
23
22
8
7
9
38
13
14
25
32
12
35
36
37
31
34
10
11
26
21
17
18
41
16
40
39
19
4
28
43
6
33
24
20
29
5
41
15
27
1
2
3
30
23
22
8
7
9
38
13
14
25
32
12
35
36
37
31
34
10
11
26
21
17
18
41
16
40
39
19
4
28
43
14
4. X-Ray Section
4-2. X-Ray Camera
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE2-M714V-00 BASE,ACS 1
2 LE2-M7142-00 PLATE,CAMERA 1
3 LE2-M7143-00 PLATE,CAMERA 1
4 LE2-M714W-00 STAND,ACS 1
5 LE2-M7163-00 PLATE,ACS 1
6 LE2-M7146-01 GUIDE,ACS 2
7 LE2-M7147-00 BLOCK,ACS 1
8 LE2-M7148-00 BLOCK,ACS 1
9 LE2-M7164-00 BRACKET,CAMERA 1
10 LE2-M7216-00 BLOCK,STOPPER 1
11 LE2-M714B-00 BLOCK,CAMERA 1
12 LE2-M721A-00 PIN 2
13 LE2-M7162-00 PLATE,CAMERA 1
14 LE2-M714E-00 HOLDER,CAMERA 1
15 LE2-M714F-00 BLOCK,STOPPER 1
16 LE2-M714G-00 BRACKET,MIRROR 1
17 LE2-M714H-00 BLOCK,MIRROR 1
18 LE2-M714J-00 HOLDER,MIRROR 1
19 LE2-M7122-00 BLOCK,LIGHT 2
20 LE2-M714T-01 BRKT,ACS 1
21 LE2-M71A2-00 MIRROR 1
22 90990-49J003 BOLT ADJUST 1
23 90990-49J002 BOLT ADJUST 1
24 LE2-M71A6-00 URETHANE SHEET 1
25 90990-33J037 BOLT STOPPER 2
26 LE2-M714K-00 COVER,ACS 1
27 LE2-M714U-00 PLATE 1 (t=4)
28 LE2-M714L-00 COVER,ACS 1
29 LE2-M714M-00 COVER,ACS 1
30 LE2-M714N-00 COVER,ACS 1
31 LE2-M7165-01 HOLDER,LENS 1
32 LE2-M7161-00 PLATE,CAMERA 1
33 LE2-M71AJ-00 ACS 1
34 90990-20J011 PIN DOWEL 4
35 LE2-M71A7-00 CCTV LENS 1
36 LE2-M71AG-00 EXETENSION TUBE 1
37 LE2-M71AH-01 EXTENSION TUBE 1
38 LE2-M71AE-00 CCD CAMERA 1
39 LE2-M7123-00 BLOCK,LIGHT 2
40 LE2-M7154-00 RUBBER SHEET 1
41 90990-33J030 BOLT STOPPER 8
42 LG0-M11HC-01 GAURD,FINGER 2
43 LE2-M714U-10 PLATE 4 (t=0.5)
15
5. Vision Head Section
5-1. Vision Head
2
29
14
19
1
17
32
26
38
16
36
39
39
39
37
18
31
12
8
39
24
35
37
34
23
11
5
30
21
27
28
15
20
22
34
35
39
3
10
6
31
12
33
4
25
39
33
7
13
9
2
29
14
19
1
17
32
26
38
16
36
39
39
39
37
18
31
12
8
39
24
35
37
34
23
11
5
30
21
27
28
15
20
22
34
35
39
3
10
6
31
12
33
4
25
39
33
7
13
9
