MDOC-SOFT50038-001 3/15
1 Model and Version
Supported model and software version for this function are as follows.
Table 1.1 Models and Version
Model Version Note
YS12 Series mounter,
YS100, YS88, YS24
YG12 Series mounter
V3.10STD R1.000 or later
YS24(X)DL V3.21STD R1.000 or later
YC8 V3.30STD R1.000 or later
2 Overview
A board can stay between the downstream machine and the upstream machine in this version
(Refer to Fig.2.1). By this function, a large size board which could not stay on the waiting
position can stay there because the board can be transferred to the waiting position, and the
transfer cycle time can be improved.
Fig.2.1 Stride Board Buffering
This Machine
Upstream
Board Board Board
Downstream
Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50038-001 4/15
3 Basic Specifications
A) About the production board count
The number of produced board is counted up when the board reaches at the exit position
as before. When this function is used, the number of produced board is counted up when
the board reaches at the exit sensor because the board cannot be stopped and be
transferred to the downstream machine.
B) About the log
When there is a board between the downstream machine and the upstream machine (“the
board wait striding the machine” state), the board is treated as a board of the downstream
machine. Therefore, the transfer time from the “the board wait striding the machine” state to
the board fixing position, is measured as transfer cycle time of the downstream machine.
The transfer time of the upstream machine is displayed by reaching time to the exit position
as before.
C) About the recovery method after the transfer error
When the transfer error occurred, according to the instructions of the error message, please
move the board to the transfer destination position and restart auto-running.
When the board is stacked between machines, “Ea7337: BOARD TRANSFER ERROR” is
displayed, please move the board to the wait position of the downstream machine and
restart auto-running (cf. figure 3.1).
About the other transportation errors, please refer to "Chapter.5. Error message."

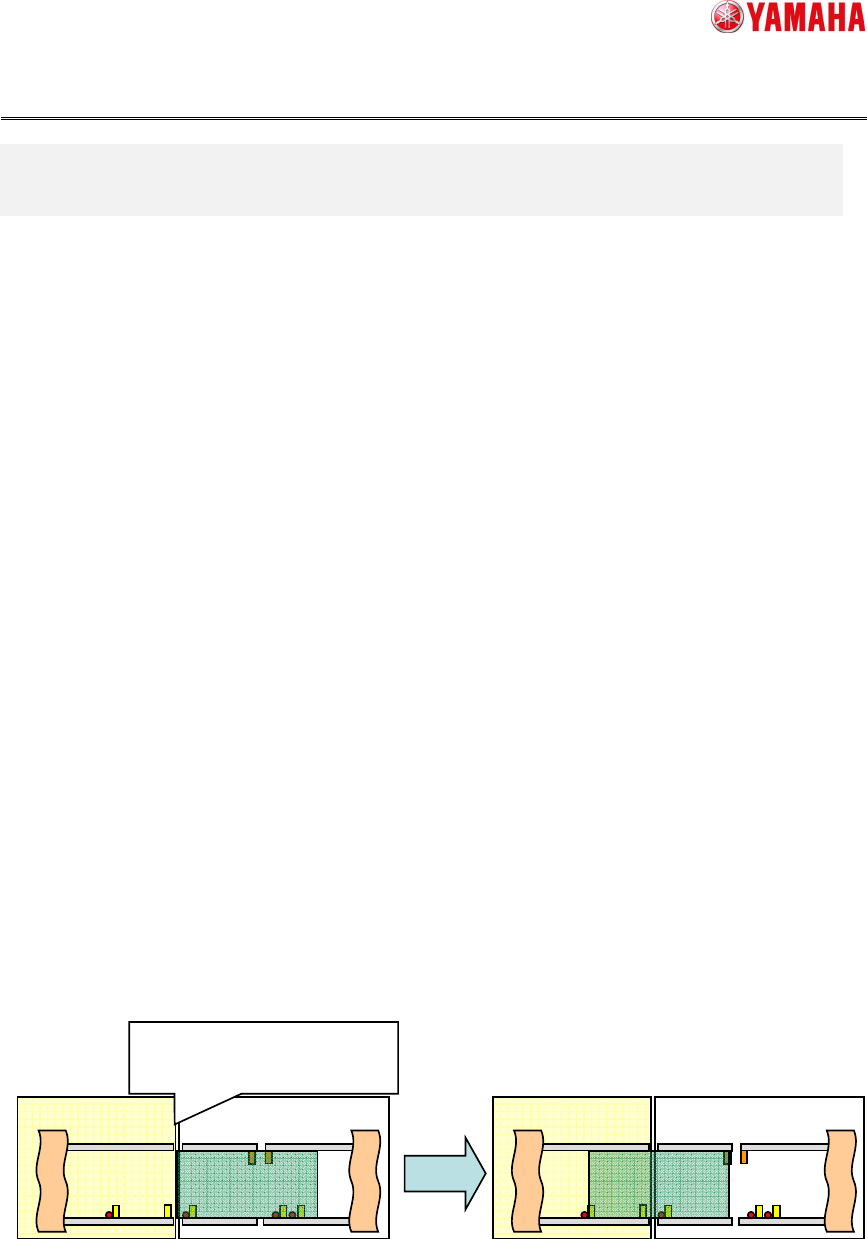

Fig.3.1 Recovery method after the transfer error
This Machine
The board is stacked between
machines, and the transfer error
“Ea7337” occurred.
This Machine Upstream Machine
Upstream Machine
Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50038-001 5/15
D) About the display of Enable or Disable state of this function [▲01]
The Enable / Disable state of this function in the current production is displayed on [Unit] –
[Conveyor] screen (cf. figure.3.2).

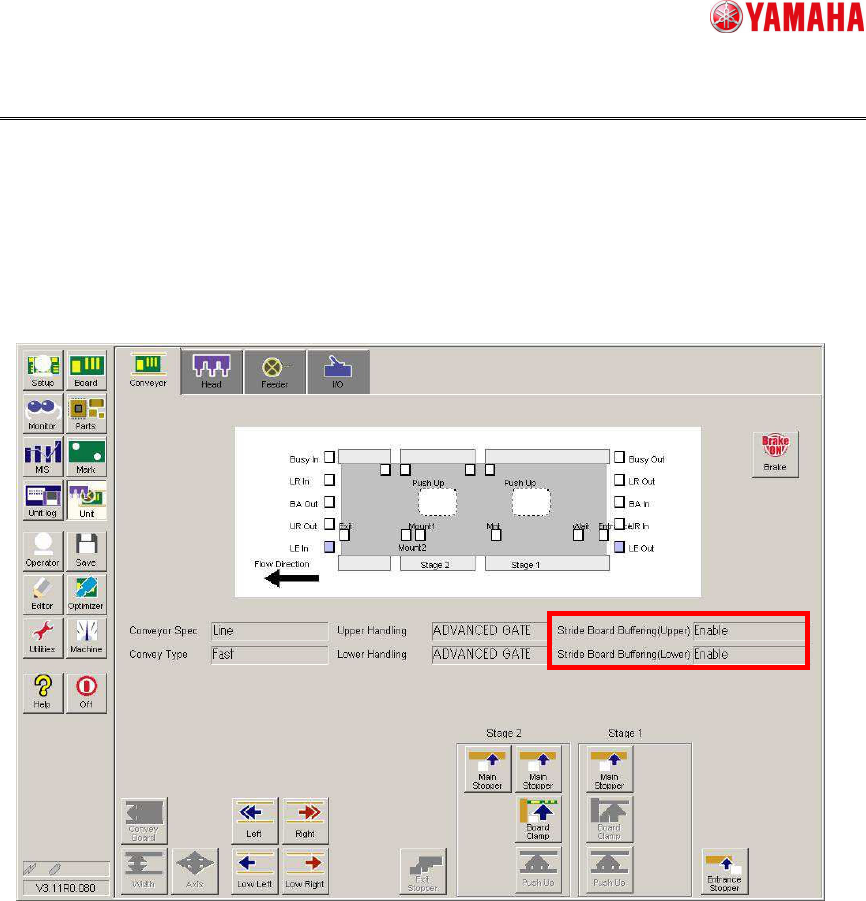

Fig.3.2 [Unit]–[Conveyor] screen
