No. Title Cause and Solution
7388
Unknown board is detected at the
exit position sensor.
Unknown board is detected at the exit
position sensor.
When the board is not necessary for
the production, please remove the
board and restart auto-running.
When the board is produced by
inserting the board to the wait
position of the downstream machine,
please operate the following
procedures.
1. Reset the downstream machine
and this machine.
2. Press the [EMERGENCY STOP]
button of the downstream machine
and this machine.
3. Insert the board from the exit
position of this machine to the wait
position of the downstream machine.
4. Restart auto-running.
29556
CONVEYOR INTERLOCK ERROR
The entrance sensor at the lower
machine was detected.
There is possibility that the board exist
between machines.
When the function of “Stride Board
Buffering” is effective, W Axis cannot be
moved.
Please press the [EMERGENCY
STOP] button of the downstream
machine and this machine, and
remove the board of the “the board
wait striding the machine” state.
When the downstream machine was
turned off, please turn on the
machine.
Note.1 The [Fast Trans Delay Timer] setting value is the timer to delay the transfer start
timing of the upstream board at sync transfer. The suitable values are different in the
chattering timer, the conveyer speed, the line constitution, etc. When these errors occur,
please set each 30msec big value than a present value, and confirm the operating
properly.
Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50038-001 9/15
6 Limitation
Please note that this function has the following limitations.
This function does not work other than “ADVANCED_GATE".
Only when the “ADVANCED GATE 2” is used as the transfer signal cable, this function
becomes effective. When this function is used other than “ADVANCED GATE 2” as the
transfer signal cable, interlock errors etc. occur, and normal operation cannot be done.
When this machine is with the buffer conveyor (include d-YTF) in the downstream side,
“Stride Board Buffering” function is not available in the downstream side.
Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50038-001 10/15
7 Appendix
7.1 Automatic settings
The work of this chapter is not necessary unless line constitution is changed.
The following setting is necessary when line constitution is changed or when upstream /
downstream machine is changed. However, the mechanical change of the conveyor in
upstream machine or this machine or downstream machine exists, please refer to "Chapter.7.2.
Manual Settings".

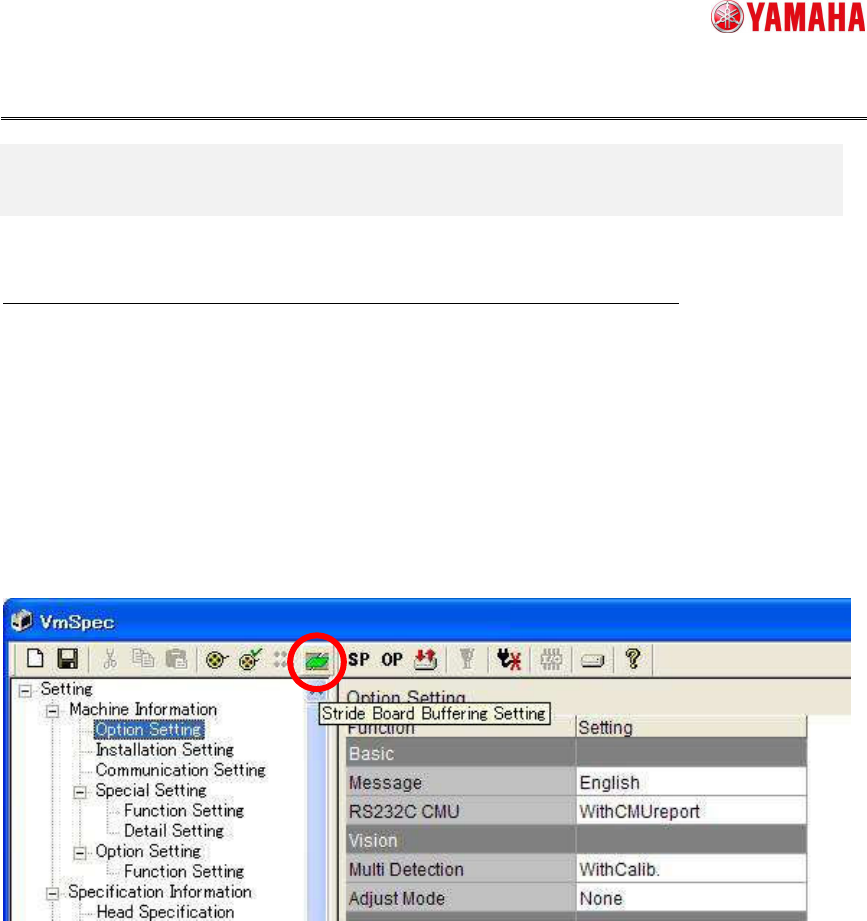

Please tap on [VmSpec] – [Toolbar] – [Stride Board Buffering Setting] button (See Fig.7.1).
When it is taped, [Stride Board Buffering Setting] screen opens.
Fig.7.1 VmSpec Screen
