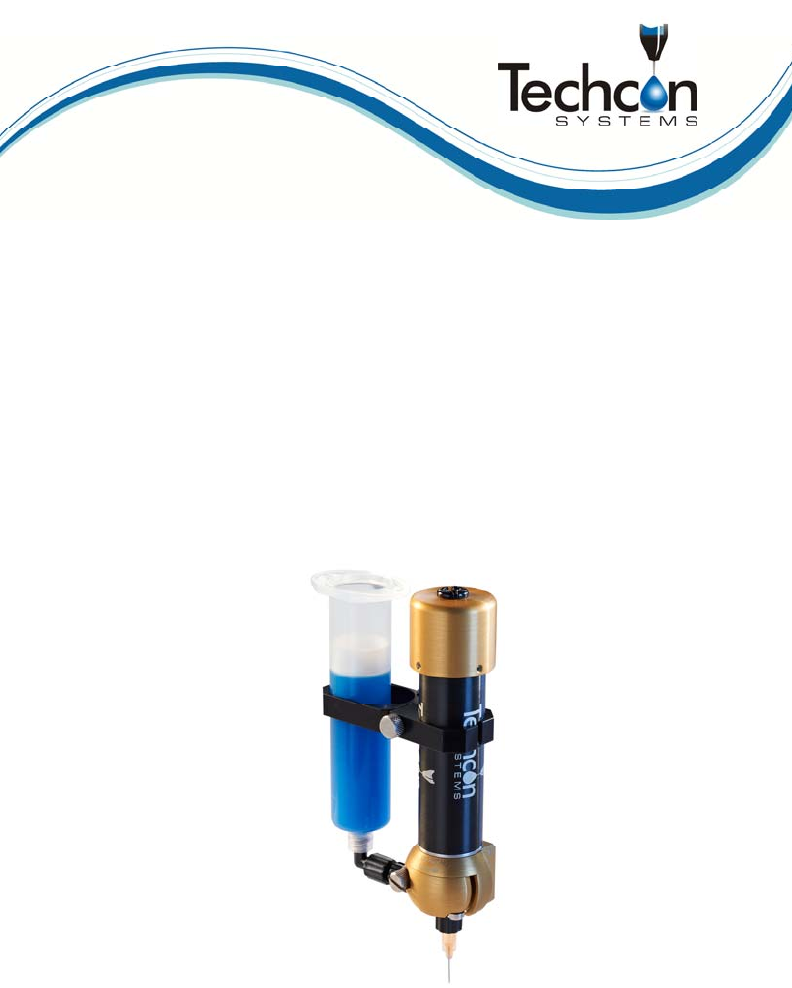

Techcon Systems TS5000DMP-DCX Series Disposable Material Path Rotary Auger Valve User Guide
Techcon Systems
TS5000DMP-DCX Series
Disposable Material Path
Rotary Auger Valve
User Guide
2
CONTENTS
Page number
1. Specifications…………………………………………………………………3
2. Unpacking and Inspection…………………………………………………….4
3. Description...…………………………………………………….….………...4
4. Theory of Operation…………………………………………….….…………5
5. Set-Up Instructions……………………….…………………….….…………6
6. Typical Set-Up…………...…………………………………….…………..…7
7. Determining Dispensing Output……………………………………………8-9
8. DMP Removal/Replacement…………….……………………….…….…….9
9. Spare Parts…………………………………………………………………...10
10. DMP Insert Options.………………………..………….…….………….......11
11. Accessories………..………………………..………….…….….……….......11
12. Trouble Shooting………..………………………..………….…….………...12
13. Warranty……………………………………………………………………..13
3
1. SPECIFICATIONS
TS5000DMP-DCX- TS5000DMP- DCX-SL TS5000DMP- DCX-SR
Size
5.88'' Length X 3.56''
(149.35mm X 90.42mm)
5.88'' Length X 3.56''
(149.35mm X 90.42mm)
5.88'' Length X 3.56''
(149.35mm X 90.42mm)
Weight 0.73 lb (331g) 0.73 lb (331g) 0.73 lb (331g)
Body width 1.56” (39.6mm) 1.30” (33mm) 1.30” (33mm)
Door open
location
Right hand side Left hand side Right hand side
Fluid Inlet
Port
Female Luer lock Female Luer lock Female Luer lock
Fluid Outlet
Port
Male Luer Lock Male Luer Lock Male Luer Lock
Maximum
Fluid Pressure
30 psi (2bar) 30 psi (2bar) 30 psi (2bar)
Operating
Frequency
Exceeds 300 cycles/min. Exceeds 300 cycles/min. Exceeds 300 cycles/min.
Mounting 1'' (25.4mm) Channel 1'' (25.4mm) Channel 1'' (25.4mm) Channel
Wetted Parts Delrin®, Nylon, Viton® Delrin®, Nylon, Viton® Delrin®, Nylon, Viton®
Viscosity
Range
30,000cps – 1,300,000cps 30,000cps – 1,300,000cps 30,000cps – 1,300,000cps
