1. SPECIFICATIONS

TS5000DMP-DCX- TS5000DMP- DCX-SL TS5000DMP- DCX-SR

Size

5.88'' Length X 3.56''

(149.35mm X 90.42mm)

5.88'' Length X 3.56''

(149.35mm X 90.42mm)

5.88'' Length X 3.56''

(149.35mm X 90.42mm)

Weight 0.73 lb (331g) 0.73 lb (331g) 0.73 lb (331g)

Body width 1.56” (39.6mm) 1.30” (33mm) 1.30” (33mm)

Door open

location

Right hand side Left hand side Right hand side

Fluid Inlet

Port

Female Luer lock Female Luer lock Female Luer lock

Fluid Outlet

Port

Male Luer Lock Male Luer Lock Male Luer Lock

Maximum

Fluid Pressure

30 psi (2bar) 30 psi (2bar) 30 psi (2bar)

Operating

Frequency

Exceeds 300 cycles/min. Exceeds 300 cycles/min. Exceeds 300 cycles/min.

Mounting 1'' (25.4mm) Channel 1'' (25.4mm) Channel 1'' (25.4mm) Channel

Wetted Parts Delrin®, Nylon, Viton® Delrin®, Nylon, Viton® Delrin®, Nylon, Viton®

Viscosity

Range

30,000cps – 1,300,000cps 30,000cps – 1,300,000cps 30,000cps – 1,300,000cps

Encoder DMP Options

Techcon Systems can offer the TS5000DMP-DCX with an encoder fitted to the

DC motor. This configuration is available with a right hand side door opening.

Due to machine integration restrictions, the encoder option is available with the

flexibility of 3 encoder positions:

For spare parts, technical drawings, dimensional drawings, wiring diagrams or

encoder information, relating to the encoder valve option, please contact Techcon

Systems.

2. UNPACKING AND INSPECTION

Carefully unpack the valve and examine the items contained in the carton.

These will include:

 Valve assembly

 Valve bracket and syringe bracket

 Sample syringe kit and tip kit

 Sample DMP feed screw/chamber (1 each of 6, 8 and 16-pitch)

 User guide

Inspect the unit for any damaged which may have occurred in transit. If such

damage has occurred, notify the carrier at once. Claim for damage must be made

by the consignee to the carrier, and should be reported to the manufacturer.

3. DESCRIPTION

The TS5000DMP-DCX Series Rotary Microvalve takes a revolutionary unique

approach to solving some of the most difficult dispensing problems. Two-

component fluids present a significant dispensing challenge, and the possibility of

destroying precision valve components, upon premature curing. Highly abrasive

fluids eventually decrease accuracy that is followed by total valve failure. With

the patented Disposable Material Path (DMP) Rotary Microvalve from Techcon

Systems, those concerns are erased.

A precision molded feed screw and chamber is captured in a “clamshell” design

valve housing. Inexpensive disposable feed screw and chamber components may

be changed quickly and easily. Cleanup is reduced to simply changing out the

disposable material path. An inexpensive stock of disposable valve components

replaces an inventory of back up valves.

The accuracy of the TS5000DMP-DCX valve meets the needs of users previously

constrained to lower accuracy of time/pressure dispensing. It also meets the

maintenance cost targets of users previously relegated to recurring, maintenance of

non-disposable path valves. Current TS5000 Rotary Microvalve customers may

find the accuracy of the TS5000DMP-DCX valve meet their current accuracy

specifications.

PART NUMBER DESCRIPTION

TS5000DMP-E DMP Valve With 105° Encoder position

TS5000DMPE-0 DMP Valve With 0° Encoder position

TS5000DMPE-15 DMP Valve With 15° Encoder position

13.

LIMITED WARRANTY

Manufacturer warrants this product to the original purchaser for a period of one (1)

year from date of purchase to be free from defects in material and workmanship,

but not against damages by misuse, negligence, accident, faulty installations and

instructions. Manufacturer will repair or replace (at factory’s option), free of

charge, any component of the equipment thus found to be defective, on return of

the component, “PREPAID” to the factory during the warranty period. In no event

shall any liability or obligation of the Manufacturer arising from this warranty

exceed the purchase price of the equipment. This warranty is only valid if the

defective product is returned as a complete assembly without physical damage.

The Manufacturer’s liability, as stated herein, cannot be altered or enlarged except

by a written statement signed by an officer of the company. In no event shall the

Manufacturer be liable for consequential or incidental damages. A return

authorization is required from Techcon Systems prior to shipping a defective unit

to the factory.

Manufacturer reserves the right to make engineering product modifications

without notice.

All returns must be issued with a Returns Authorization number, prior to return.

Send warranty returns to:

Americas and Asia

OK International

Garden Grove Division

12151 Monarch Street

Garden Grove, Ca 92841

Europe

OK International

Eagle Close

Chandler’s Ford Ind Est

Eastleigh

Hampshire

SO53 4NF

United Kingdom

www.techconsystems.com

Delrin®, Viton® and Teflon® are registered trademarks of E.I. DuPont.

T9000119_D

12. TROUBLE SHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION

No Fluid Flow

Dispense tip is plugged Replace tip

Motor does not receive signal

Make sure all connections are

secured

Motor running in reverse

Reverse motor cable

connection

Syringe barrel of dispense fluid

is empty

Replace with new syringe

barrel, of fluid

Fluid feed pressure is too low Increase feed pressure.

Inconsistent

Fluid Flow

Feed screw damaged

Replace with new feed

screw/chamber

Fluid pressure fluctuating

Make sure fluid pressure is

constant

Valve on time is too short Increase valve on time

Excessive motor reverse time

Reduce reverse time or turn

off completely.

Fluid drools after

the valve turned

off

Air trapped in fluid housing Purge valve properly

Dispense tip

clogged

Air trapped in feed screw

chamber

Purge valve properly

Air trapped in fluid reservoir Remove air from reservoir

Excessive fluid feed pressure

Reduce pressure or turn off

pressure when the valve is

idle.

Tip contacting substrate Increase dispense height

4. THEORY OF OPERATION (refer to figure 1.0)

The TS5000DMP-DCX Series Rotary Microvalve dispenses fluid with a positive

displacement action using a rotary feed screw principle. Fluid is held in a feed

reservoir (2), normally a syringe barrel or cartridge, under a positive head of air,

between 1 to 20 psi (0.07 to 1.38bar), depending upon the viscosity of the fluid.

The positive air pressure, supplied by the air line (1), forces the fluid out of the

syringe barrel (2) into the material feed path (3) then to the feed screw chamber

(5). Fluid flows from this point (5) to the dispense point (4) and is controlled by

the feed screw rotation in the feed direction. The feed screw is driven by the DC

motor (6). Applying a DC voltage signal to the DC motor (6), will rotate the feed

screw and the fluid will be forced out the dispense tip (4). The actual fluid

deposited is dependent upon adhesion of the dispensed fluid to the substrate.

Shearing of the fluid is achieved by reverse Z-motion (tip retraction). When the

motor stops, the unit remains in position for a fraction of a second (dwell) to allow

the last drop of fluid to flow out of the dispense tip. After the dwell period, the

automation equipment moves the TS5000DMP-DCX valve to the next position.

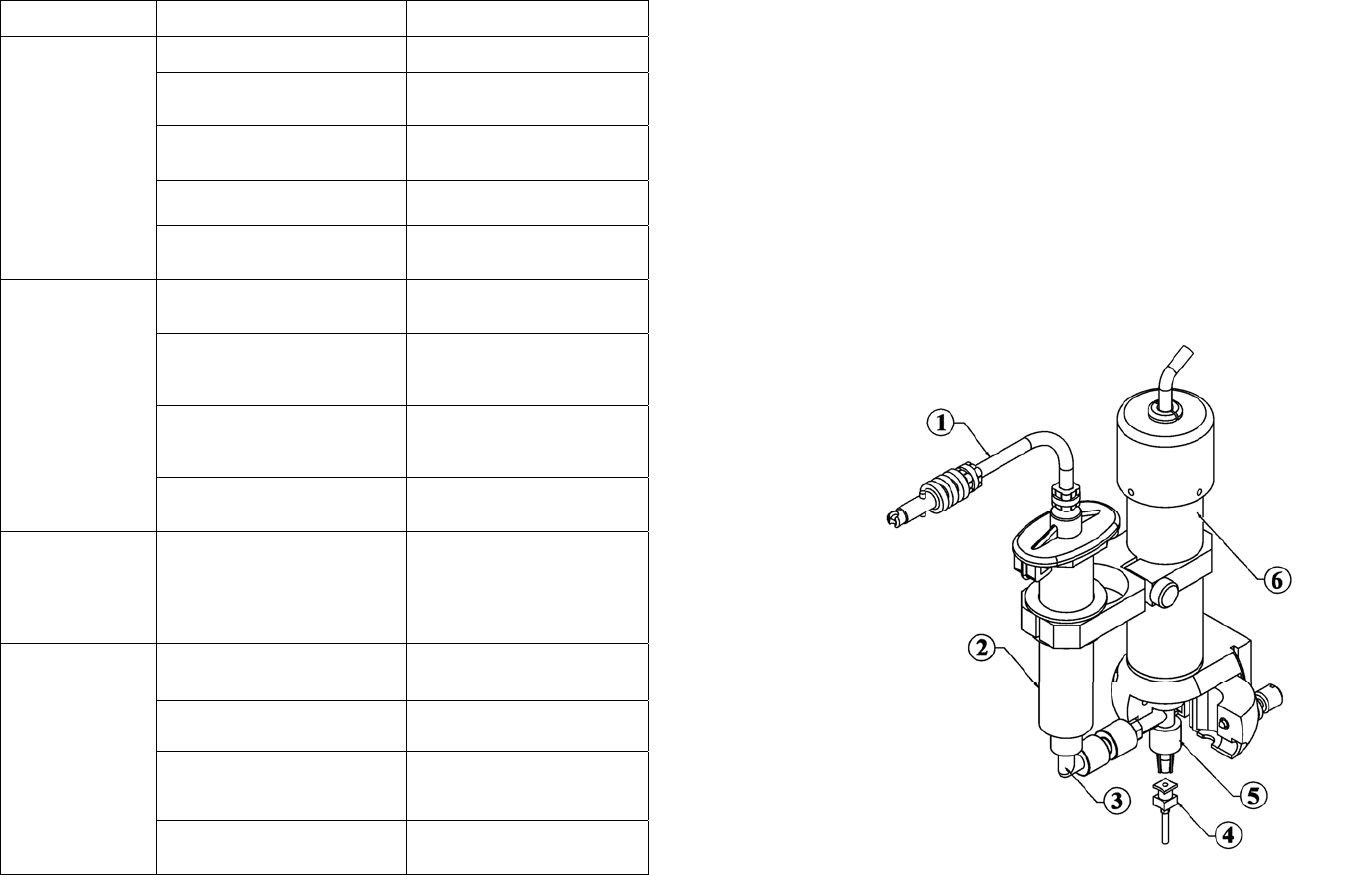

Figure 1.0
