Encoder DMP Options
Techcon Systems can offer the TS5000DMP-DCX with an encoder fitted to the
DC motor. This configuration is available with a right hand side door opening.
Due to machine integration restrictions, the encoder option is available with the
flexibility of 3 encoder positions:
For spare parts, technical drawings, dimensional drawings, wiring diagrams or
encoder information, relating to the encoder valve option, please contact Techcon
Systems.
2. UNPACKING AND INSPECTION
Carefully unpack the valve and examine the items contained in the carton.
These will include:
Valve assembly
Valve bracket and syringe bracket
Sample syringe kit and tip kit
Sample DMP feed screw/chamber (1 each of 6, 8 and 16-pitch)
User guide
Inspect the unit for any damaged which may have occurred in transit. If such
damage has occurred, notify the carrier at once. Claim for damage must be made
by the consignee to the carrier, and should be reported to the manufacturer.
3. DESCRIPTION
The TS5000DMP-DCX Series Rotary Microvalve takes a revolutionary unique
approach to solving some of the most difficult dispensing problems. Two-
component fluids present a significant dispensing challenge, and the possibility of
destroying precision valve components, upon premature curing. Highly abrasive
fluids eventually decrease accuracy that is followed by total valve failure. With
the patented Disposable Material Path (DMP) Rotary Microvalve from Techcon
Systems, those concerns are erased.
A precision molded feed screw and chamber is captured in a “clamshell” design
valve housing. Inexpensive disposable feed screw and chamber components may
be changed quickly and easily. Cleanup is reduced to simply changing out the
disposable material path. An inexpensive stock of disposable valve components
replaces an inventory of back up valves.
The accuracy of the TS5000DMP-DCX valve meets the needs of users previously
constrained to lower accuracy of time/pressure dispensing. It also meets the
maintenance cost targets of users previously relegated to recurring, maintenance of
non-disposable path valves. Current TS5000 Rotary Microvalve customers may
find the accuracy of the TS5000DMP-DCX valve meet their current accuracy
specifications.
PART NUMBER DESCRIPTION
TS5000DMP-E DMP Valve With 105° Encoder position
TS5000DMPE-0 DMP Valve With 0° Encoder position
TS5000DMPE-15 DMP Valve With 15° Encoder position
13
13.
LIMITED WARRANTY
Manufacturer warrants this product to the original purchaser for a period of one (1)
year from date of purchase to be free from defects in material and workmanship,
but not against damages by misuse, negligence, accident, faulty installations and
instructions. Manufacturer will repair or replace (at factory’s option), free of
charge, any component of the equipment thus found to be defective, on return of
the component, “PREPAID” to the factory during the warranty period. In no event
shall any liability or obligation of the Manufacturer arising from this warranty
exceed the purchase price of the equipment. This warranty is only valid if the
defective product is returned as a complete assembly without physical damage.
The Manufacturer’s liability, as stated herein, cannot be altered or enlarged except
by a written statement signed by an officer of the company. In no event shall the
Manufacturer be liable for consequential or incidental damages. A return
authorization is required from Techcon Systems prior to shipping a defective unit
to the factory.
Manufacturer reserves the right to make engineering product modifications
without notice.
All returns must be issued with a Returns Authorization number, prior to return.
Send warranty returns to:
Americas and Asia
OK International
Garden Grove Division
12151 Monarch Street
Garden Grove, Ca 92841
Europe
OK International
Eagle Close
Chandler’s Ford Ind Est
Eastleigh
Hampshire
SO53 4NF
United Kingdom
www.techconsystems.com
Delrin®, Viton® and Teflon® are registered trademarks of E.I. DuPont.
T9000119_D
12
12. TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE CORRECTION
No Fluid Flow
Dispense tip is plugged Replace tip
Motor does not receive signal
Make sure all connections are
secured
Motor running in reverse
Reverse motor cable
connection
Syringe barrel of dispense fluid
is empty
Replace with new syringe
barrel, of fluid
Fluid feed pressure is too low Increase feed pressure.
Inconsistent
Fluid Flow
Feed screw damaged
Replace with new feed
screw/chamber
Fluid pressure fluctuating
Make sure fluid pressure is
constant
Valve on time is too short Increase valve on time
Excessive motor reverse time
Reduce reverse time or turn
off completely.
Fluid drools after
the valve turned
off
Air trapped in fluid housing Purge valve properly
Dispense tip
clogged
Air trapped in feed screw
chamber
Purge valve properly
Air trapped in fluid reservoir Remove air from reservoir
Excessive fluid feed pressure
Reduce pressure or turn off
pressure when the valve is
idle.
Tip contacting substrate Increase dispense height
5
4. THEORY OF OPERATION (refer to figure 1.0)
The TS5000DMP-DCX Series Rotary Microvalve dispenses fluid with a positive
displacement action using a rotary feed screw principle. Fluid is held in a feed
reservoir (2), normally a syringe barrel or cartridge, under a positive head of air,
between 1 to 20 psi (0.07 to 1.38bar), depending upon the viscosity of the fluid.
The positive air pressure, supplied by the air line (1), forces the fluid out of the
syringe barrel (2) into the material feed path (3) then to the feed screw chamber
(5). Fluid flows from this point (5) to the dispense point (4) and is controlled by
the feed screw rotation in the feed direction. The feed screw is driven by the DC
motor (6). Applying a DC voltage signal to the DC motor (6), will rotate the feed
screw and the fluid will be forced out the dispense tip (4). The actual fluid
deposited is dependent upon adhesion of the dispensed fluid to the substrate.
Shearing of the fluid is achieved by reverse Z-motion (tip retraction). When the
motor stops, the unit remains in position for a fraction of a second (dwell) to allow
the last drop of fluid to flow out of the dispense tip. After the dwell period, the
automation equipment moves the TS5000DMP-DCX valve to the next position.
Figure 1.0
6
5. SET-UP INSTRUCTIONS
Mechanical Mounting:
Normally, the TS5000DMP-DCX Series valve is used on an automated XYZ table,
with full motion control in the three planes. It is very important that the valve is
mounted on the Z-axis gantry, in a secure manner, that will not allow loosening
during dispense operation. The Z-axis must move in a precise and repeatable
motion for successful dispensing.
The provided mounting bracket, or customer supplied bracket, must be attached to
the Z-axis in a manner that will provide the valve perpendicular travel to the
horizontal plane of the surface on which the fluid will be dispensed. The mounting
should provide a means of accurately adjusting the distance between the dispense
tip and the substrate surface such as a touchdown sensing device or a fixed
distance standoff.
Air Connection:
Filtered air supply must be precisely regulated and should be set between 1-20 psi
(0.07 to 1.38bar). The air supply is not used as the main dispensing force. It is only
required to move fluid to the feed screw chamber.
Electrical Connection:
The TS5000DMP-DCX Series valve requires an electrical connection of two wires
for the DC motor. The motor lead wires are 24
'' (609.60mm) in length. The black
lead wire should be connected to the negative or neutral lead from the motor
control voltage source. To verify the connection, check the rotation direction of
the feed screw. When correctly connected, a positive voltage signal will drive the
feed screw in a counter clockwise direction when view from the dispense tip end.
The recommended controller for the TS5000DMP-DCX Series valve is the
TS500R. If another controller is used make sure the control voltage signal is
precisely controlled. The signal should be from a regulated power supply and

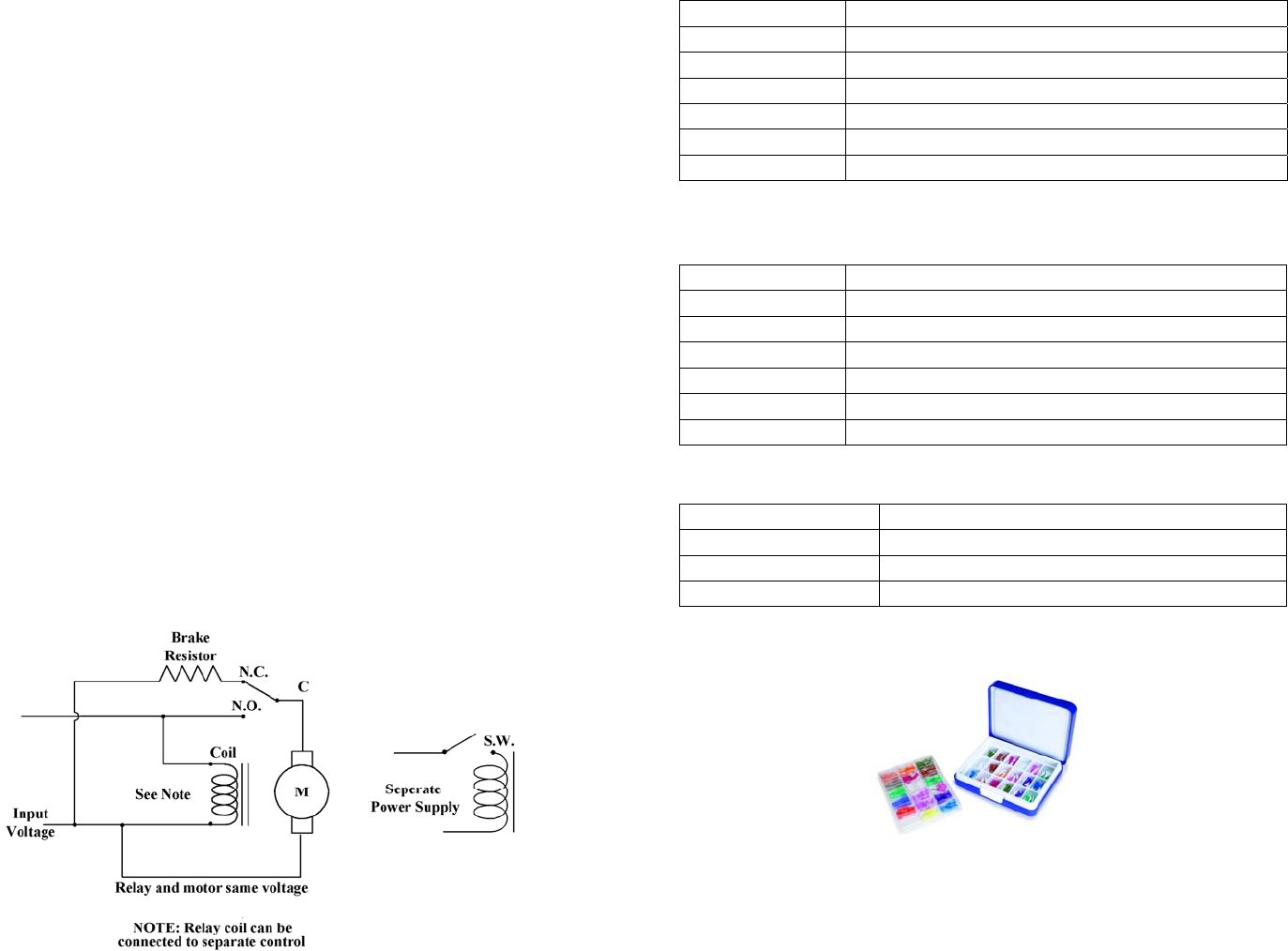

should be shunted to positive motor stop. Below is a diagram of a simple braking
circuit:
Figure 2.0
11
10.
DMP INSERT OPTIONS
11.
STANDARD ACCESSORIES
11.1 OPTIONAL ACCESSORIES
PART NUMBER DESCRIPTION
DMP6-10 6 Pitch DMP Assembly, Fixed Red Collar, 10 per pack
DMP6R-10 6 Pitch DMP Assembly, Rotating Red Collar, 10 per pack
DMP8-10 8 Pitch DMP Assembly, Fixed Black Collar, 10 per pack
DMP8R-10 8 Pitch DMP Assembly, Rotating Black Collar, 10 per pack
DMP16-10 16 Pitch DMP Assembly, Fixed Blue Collar, 10 per pack
DMP16R-10 16 Pitch DMP Assembly, Rotating Blue Collar, 10 per pack
PART NUMBER DESCRIPTION
5000-000-005 Valve Mounting Bracket
5000-015-000 TS-SS Sample Tip Kit
TS3706 Syringe Bracket Kit
TSD1135-18 6 Pin DIN Socket
71003RHB 10cc Receiver Head, 3ft (0.9M)
73003RHB 30cc Receiver Head, 3ft (0.9M)
PART NUMBER DESCRIPTION
TN00DKIT Complete Dispensing Tip Kit
9000-000-112 Sample Tip Kit
5000-000-082 TS-SS Tip Torque Tool
