2
Manual ............................. 1 unit
Ref. 0027180
Stand for AM120 & PA120 Micro Tweezers ..................................................................................... 1 unit
Stand Cable 1m ............ 1 unit
Ref. 0024227
Sponge for Modular
Tool Stands ................... 1 unit
Ref. S7034
Brass Wool .................... 1 unit
Ref. CL6210
The following items are included:
This manual corresponds to the following reference:
AM-SB
Packing List
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
Tool Connector
Wiper
Ref. CL7899
Adjustable
Cable Collector
Ref. CC1001
Tip Exchanger
Cartridge Holder
Ajustable Tool Holder
Brass Wool
(inside)
Sponge
Features and Connections
Control Unit Connector
HDTS (HT470)
AT420
AT420
AT420
ATS (AT420)
HTS (hT420)
HDTS (HT470)
AT420
AT420
AT420
ATS (AT420)
HTS (hT420)
HDTS (HT470)
AT420
AT420
AT420
ATS (AT420)
HTS (hT420)
4

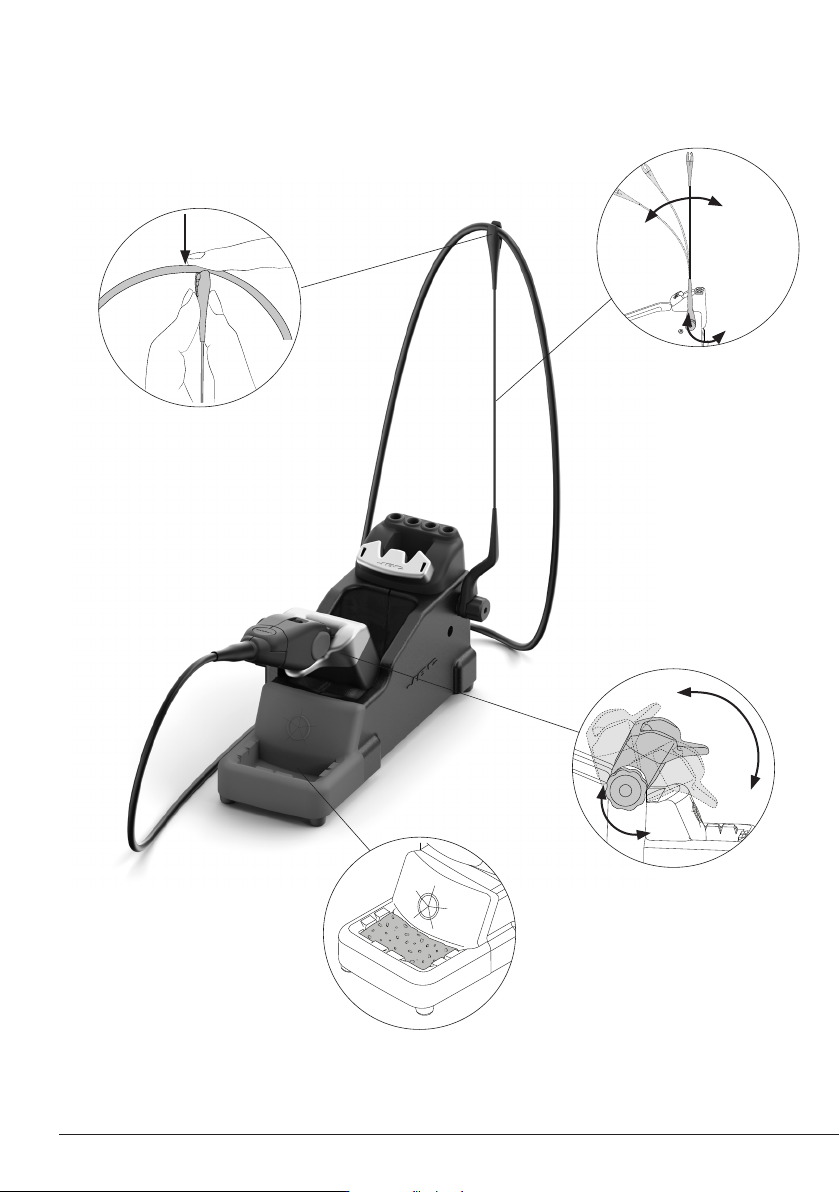

Assembly
Adjustable Cable Collector and Adjustable Tool Holder
Adjust the tool holder angle to
suit the work position.
The wiper offers different ways to
clean the cartridge tips. If desired
use the included sponge.
Insert the cable into the cable
collector clip. Do not leave the
cable longer than necessary to
reach the work area freely.
The cable collector is flexible.
It accompanies and adapts
to the movements during the
soldering process.
