6

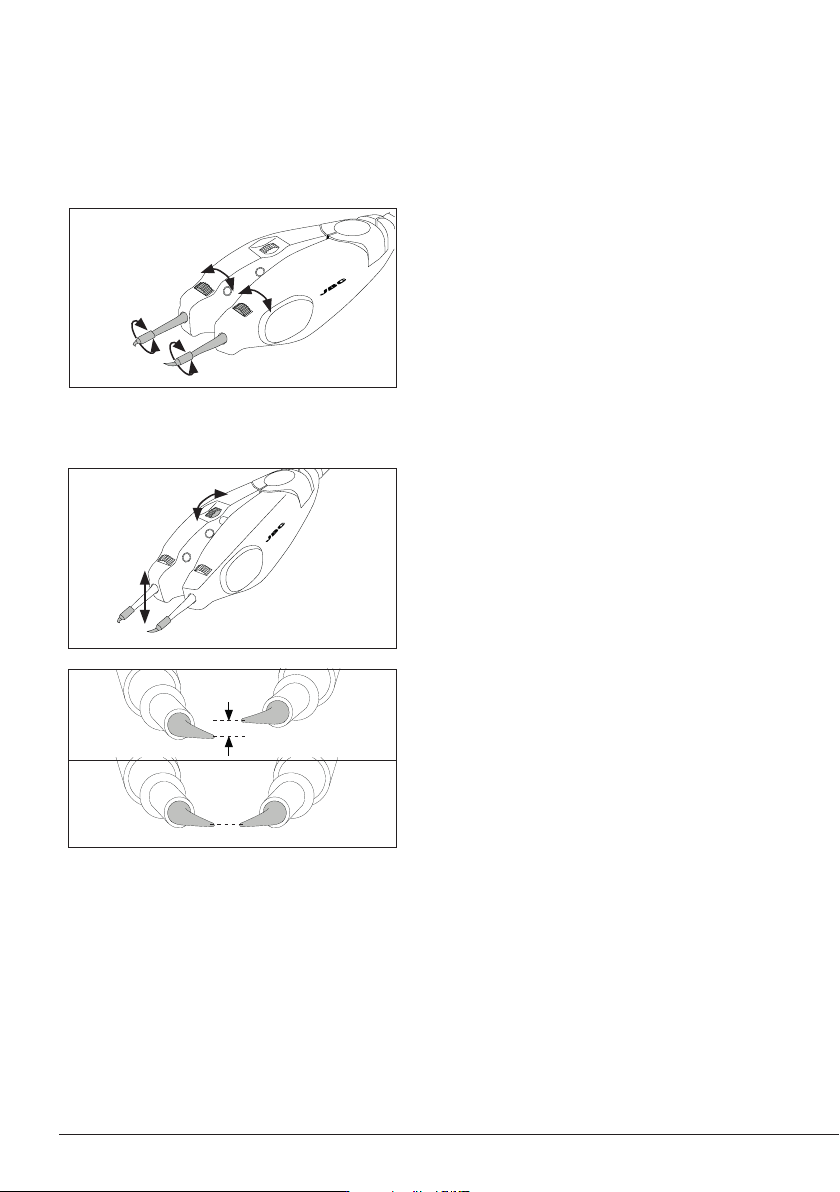

4. Rotational Cartridge Alignment
Slightly turn the wheels to align the cartridges
as required.
5. Vertical Cartridge Alignment
not aligned
aligned
Close the tweezers and the rear wheel allows
the cartridges to be equally aligned in a vertical
direction.
AM-SA
PA120-A
PA120-A
AM-SA
PA120-A
PA120-A
AM-SA
PA120-A
PA120-A
7
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm

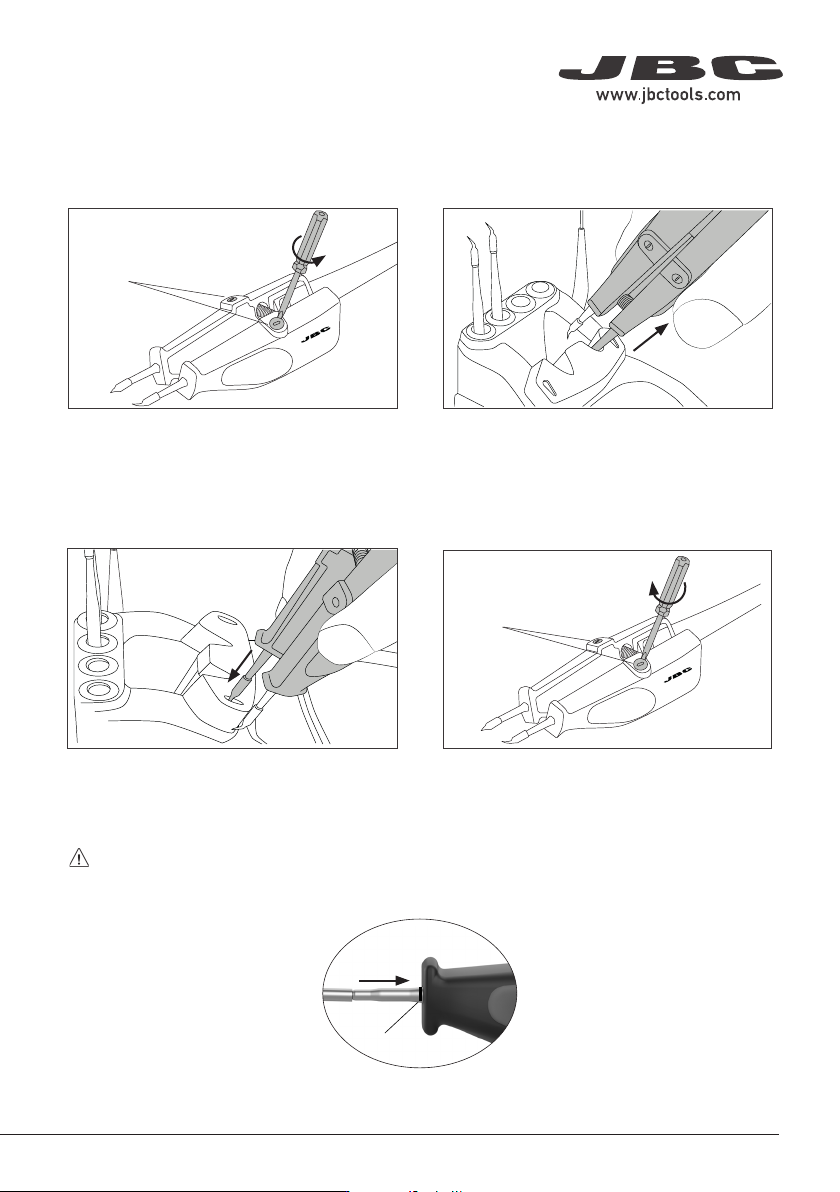

2. Removing1. Unlocking
Unlock the fixing screws. Place the cartridges in the extractor and pull
the tweezers to remove them.
Use the grooves to insert the cartridges as
far as the mark*.
3. Inserting
4. Locking
Lock the fixing screws.
Changing Cartridges - PA120 Tweezers
Mark
*Important
It is essential to insert the cartridges as far as the mark for a proper connection.
Screws
Screws
8

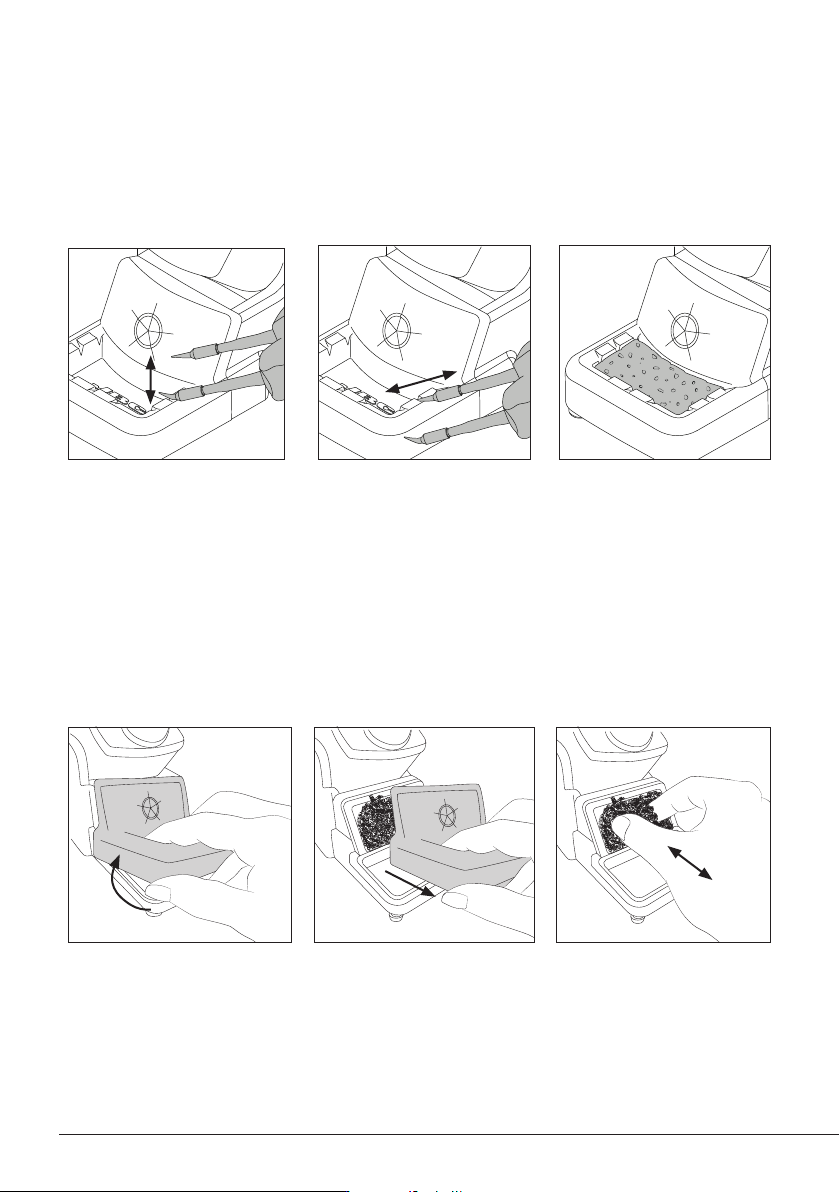

Tap gently to remove excess
solder.
Use the slots to remove the
remaining particles.
Wiper
Tapping Wiping Sponge
The softest cleaning method.
Keep the sponge damp with
distilled water when working to
avoid tip wear.
The integrated wiper offers different ways to clean the cartridge tips.
Wiper and Brass Wool Replacement
Lift the wiper at its front edge.
The wiper and brass wool can easily be removed for cleaning or replacement when they are worn.
Remove the wiper by pulling
it out.
Replace the brass wool with a
new one when it is worn out.
Place the wiper back o replace
them if desired.
