8 T a p gent ly to rem ove exces s solder . Use th e slots to re move th e remaining particles. Wiper Ta p p i n g Wiping Sponge Th e sof test c lea nin g meth od. Kee p the sp ong e dam p with dis till ed water w he n w…

100%1 / 12
AM-SA
PA120-A
PA120-A
AM-SA
PA120-A
PA120-A
AM-SA
PA120-A
PA120-A
7
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
2. Removing1. Unlocking
Unlock the fixing screws. Place the cartridges in the extractor and pull
the tweezers to remove them.
Use the grooves to insert the cartridges as
far as the mark*.
3. Inserting
4. Locking
Lock the fixing screws.
Changing Cartridges - PA120 Tweezers
Mark
*Important
It is essential to insert the cartridges as far as the mark for a proper connection.
Screws
Screws
8
Tap gently to remove excess
solder.
Use the slots to remove the
remaining particles.
Wiper
Tapping Wiping Sponge
The softest cleaning method.
Keep the sponge damp with
distilled water when working to
avoid tip wear.
The integrated wiper offers different ways to clean the cartridge tips.
Wiper and Brass Wool Replacement
Lift the wiper at its front edge.
The wiper and brass wool can easily be removed for cleaning or replacement when they are worn.
Remove the wiper by pulling
it out.
Replace the brass wool with a
new one when it is worn out.
Place the wiper back o replace
them if desired.
9
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm

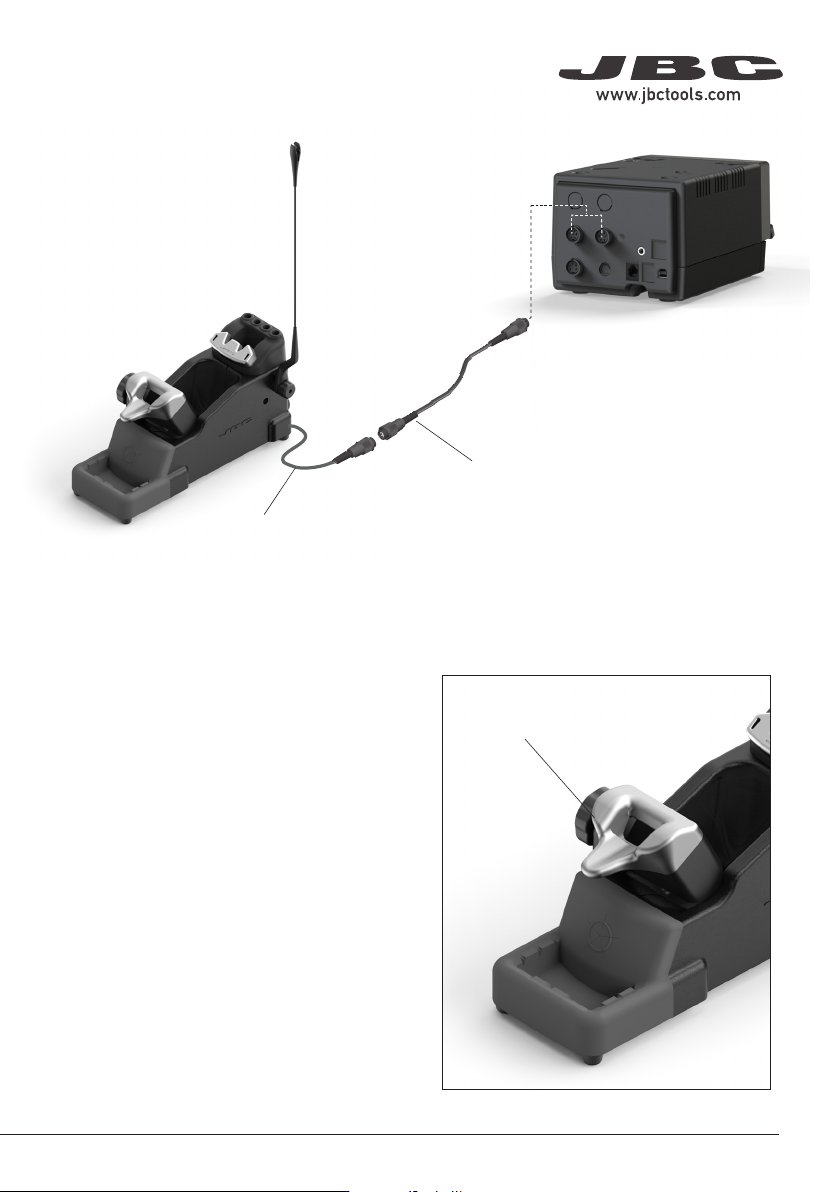

Stand Extension Cable
Ref. A1286
Length: 1.5m
Stand Cable
Accessories
Clean periodically
Maintenance
Before carrying out maintenance or storage,
always unplug the stand from the station and
the tool.
- Use a damp cloth to clean the stand. Alcohol
can be used only when cleaning metal parts.
- Check periodically that the metal parts of the
tool/stand are clean so that the station can
check the tool’s status.
- Periodically check all cables and tube
connections.
- Replace any defective or damaged parts. Use
original JBC spare parts only.
- Repairs should only be performed by a JBC
authorized technical service.
