Recommended mating shafts
HOLLOW SHAFT ENCODERS www.leinelinde.com
11

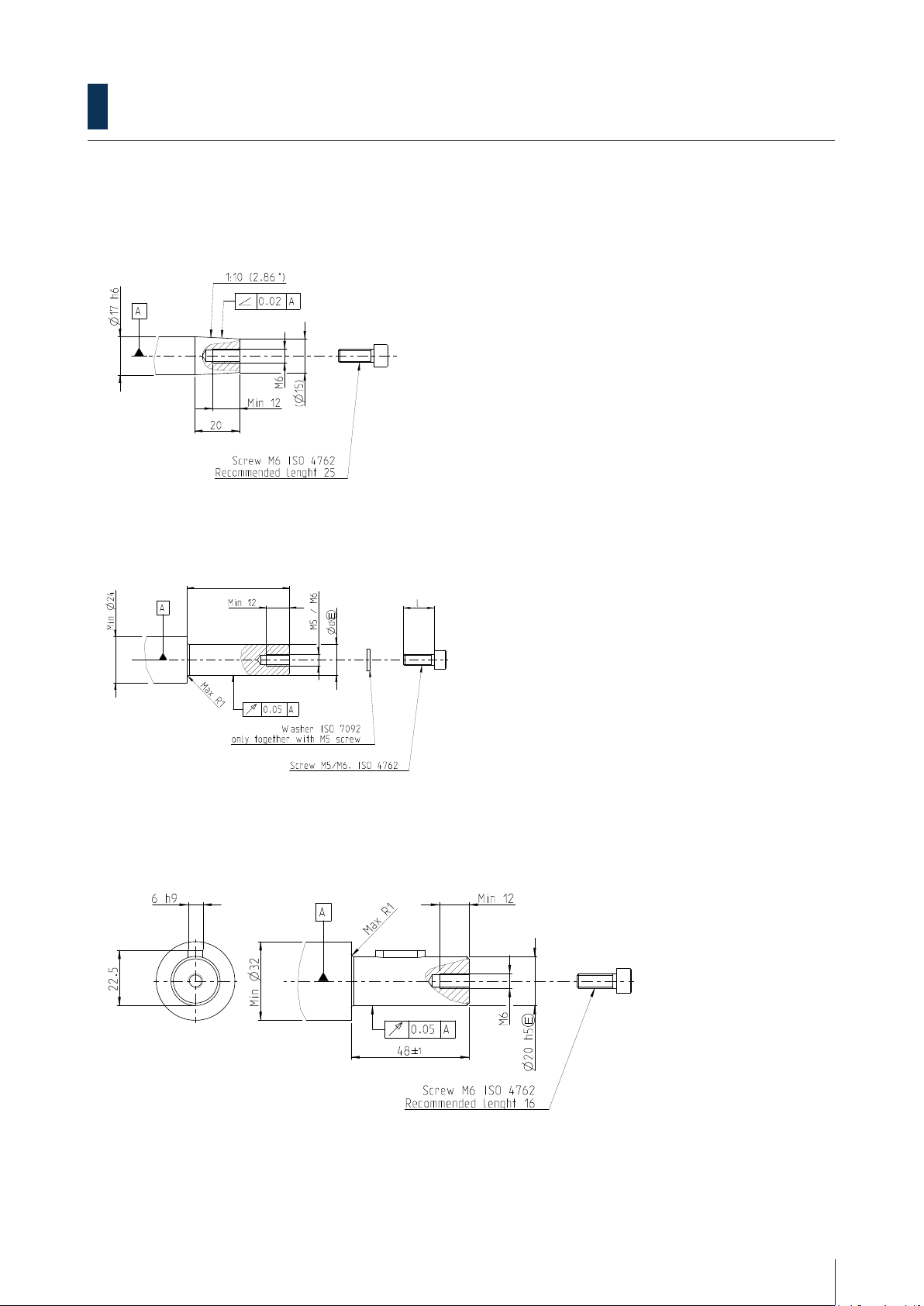

2.5 900 series
2.5.1 Taper hollow shaft with axial xing screw
2.5.2 Blind hollow shaft with axial xing screw
2.5.3 Blind hollow shaft with axial xing screw and keyway
Recommended screw length 25 mm, minimum 8 mm
thread in use. Max screw head diameter 10,5 mm.
When a 53 mm mating shaft is used the recom-
mended screw length is 16 mm. If the shaft is made
shorter the length of the screw must be prolonged
accordingly so that minimum 9 mm thread is in use.
Max screw head and washer diameter 10,5 mm.
Recommended screw length 16 mm, minimum 9 mm
thread in use. Max screw head diameter 10,5 mm.
Min 44, max 53
Recommended mating shafts
HOLLOW SHAFT ENCODERS www.leinelinde.com
12
2.6 FSI 800 series
For mounting of the FSI 862 encoder with hollow shaft, the mating shaft is required to have dimensions as given.

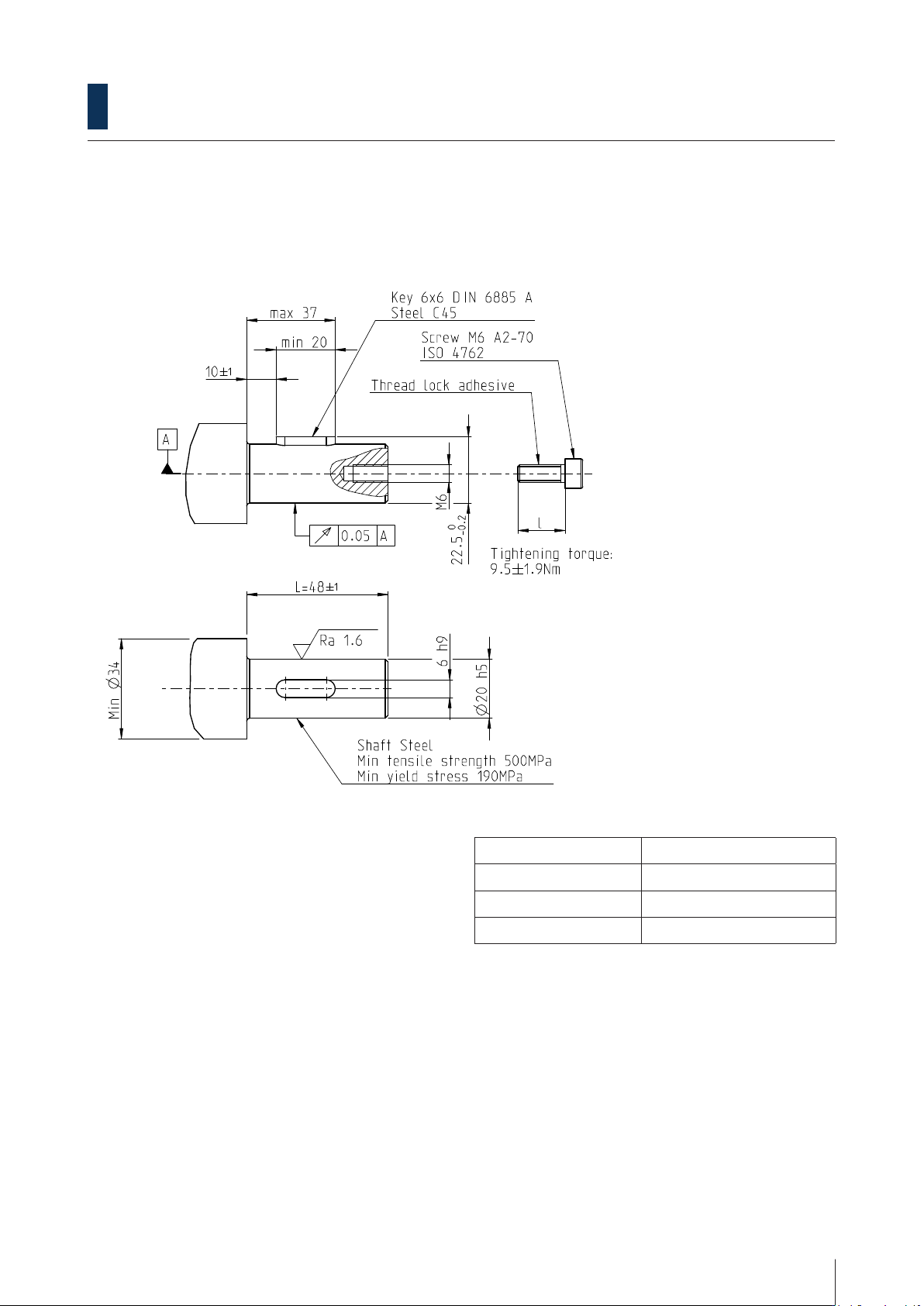

2.6.1 For hollow shaft with keyway
2.6.2 For hollow shaft with key
Shaft material characteristics
Rm min 500 MPa
Rp 0,2 / Rel 300 MPa
Coefficient of
thermal expansion
10-12
*
10e-6
Shaft material characteristics
Rm min 500 MPa
Rp 0,2 / Rel 300 MPa
Coefficient of
thermal expansion
10-12
*
10e-6
Recommended mating shafts
HOLLOW SHAFT ENCODERS www.leinelinde.com
13
2.7 FSI 900 series
2.7.1 Shaft interface 20 hk
Shaft length L (mm) Min screw length L (mm)
47 17
48 16
49 15
