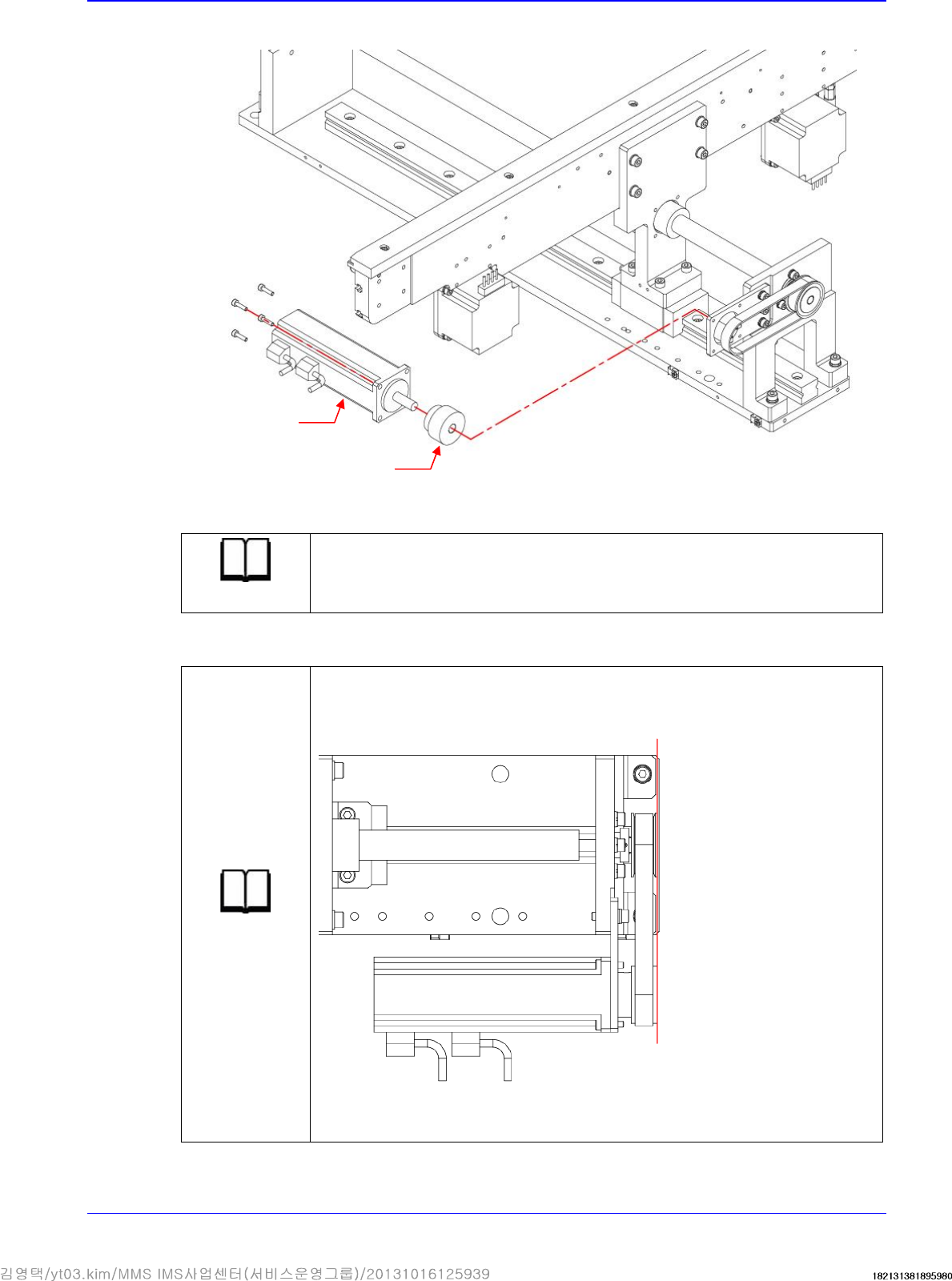

Conveyor
5-11
5. Unscrew the set screw securing the Pulley using a hex wrench and remove it.
6. Replace the motor with a new one.
Reference
The part number of the new motor is J3108062A
7. Assemble the motor in the reverse order of disassembling.
Reference
Basis for the motor and pulley assembling position
–
Distance from the
motor assembling surface to the pulley center.
measure its tension and compensate it by referring to "Belt replacement
procedure".
Pulley
Motor
Advanced High Speed Flexible Mounter
5-12

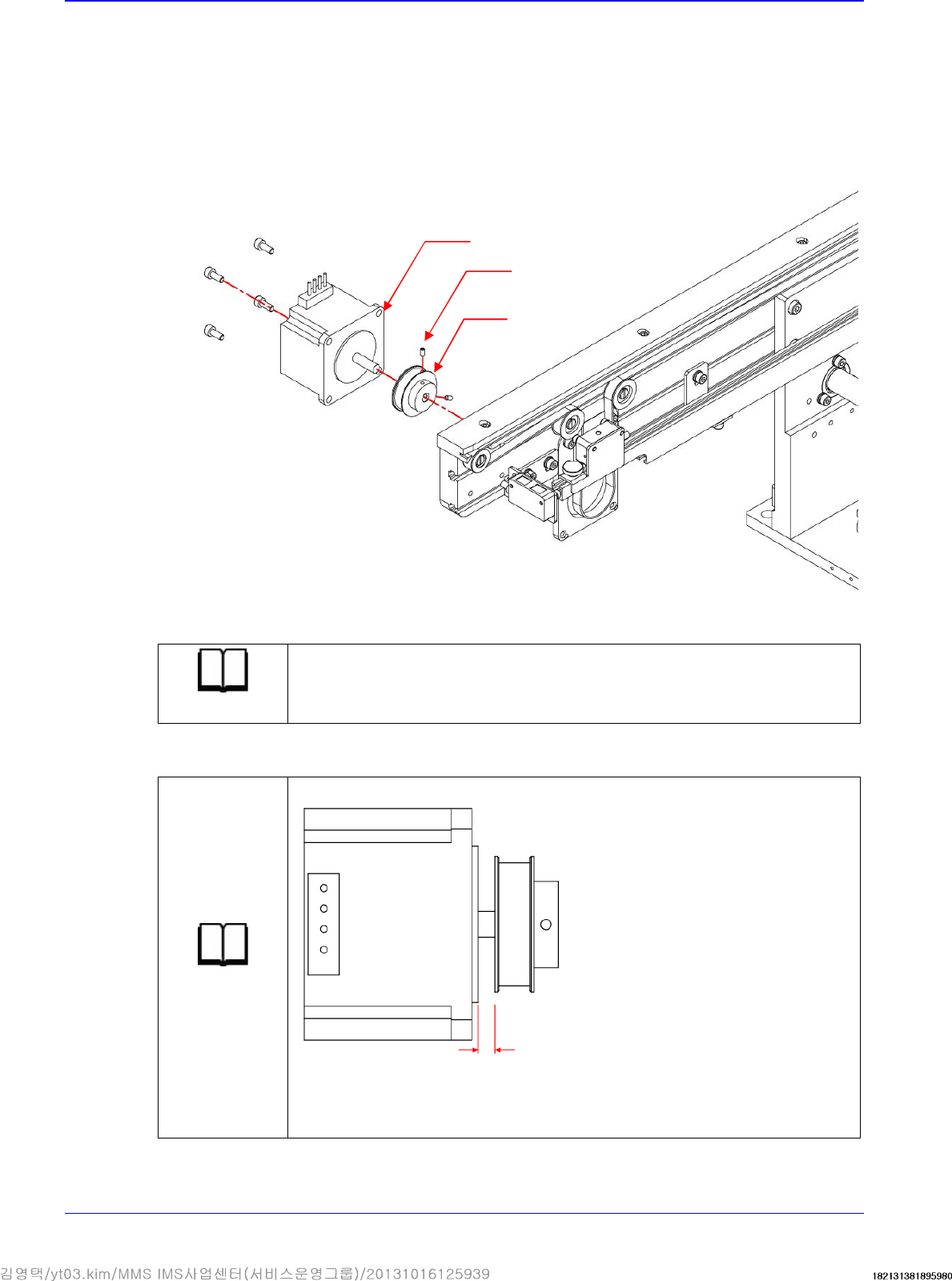

5.3.3. Entry / Exit PCB Tranfer Motor replacement procedure
1. Manipulate the teaching box to move the X-Frame to the rear side.
2. Turn Off the PC in normal way. Then turn off the main switch on the front side of the machine.
3. Remove the cable connected to the motor.
4. Unscrew the fixing bolts securing the motor using a hex wrench and remove it.
5. Unscrew the set screw securing the pulley using a hex wrench and remove it.
6. Replace the motor with a new one.
Reference
The part number of the new motor is J31041014A
7. Assemble the motor in the reverse order of disassembling.
Reference
When assembling the motor
-
pulley, refer to the following
.
measure its tension and compensate it by referring to "Belt replacement
procedure".
Pulley
Set Screw
Motor
4.1mm
Conveyor
5-13

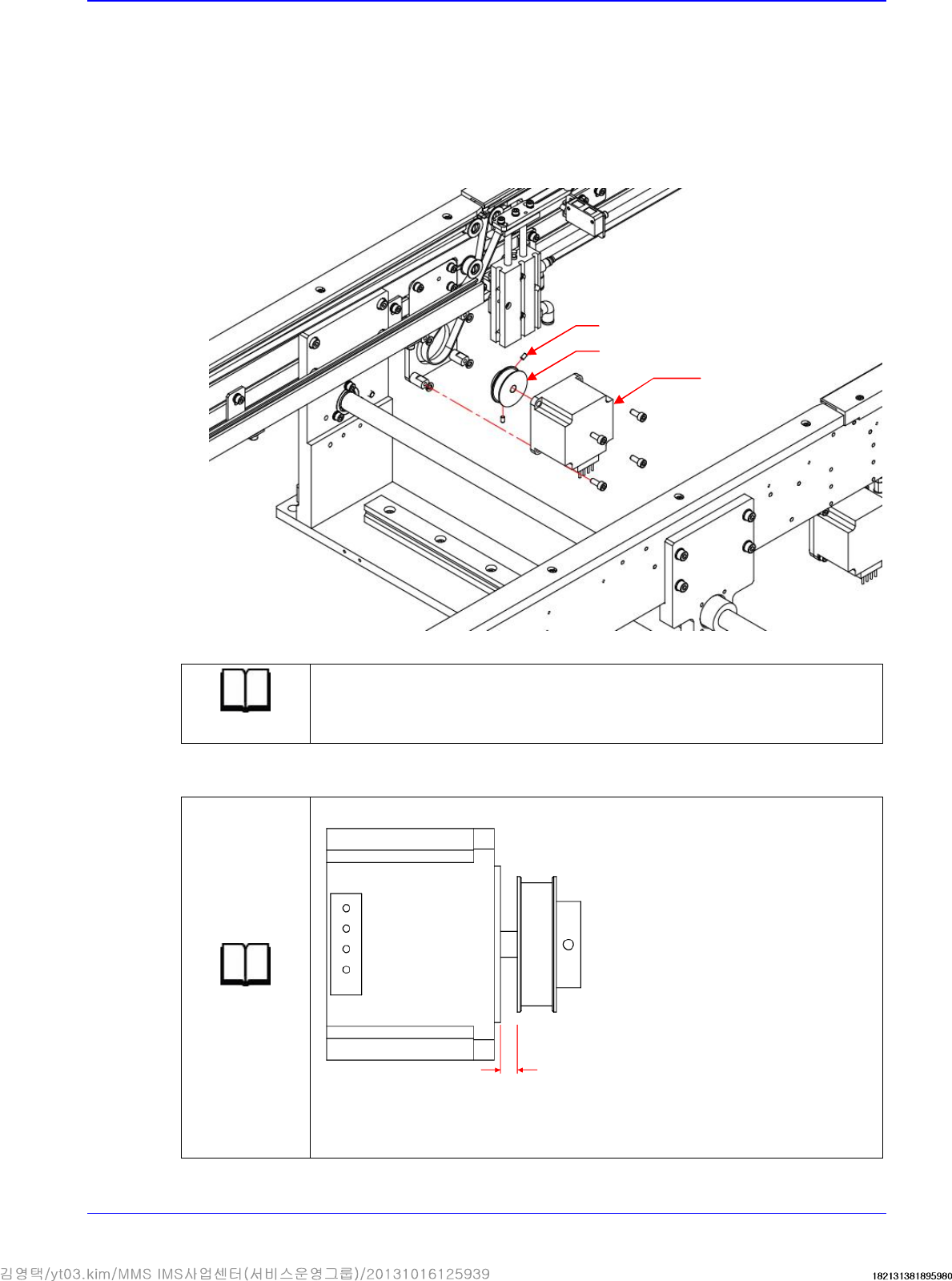

5.3.4. Work PCB Tranfer Motor replacement procedure
1. Manipulate the teaching box to move the X-Frame to the rear side.
2. Turn Off the PC in normal way. Then turn off the main switch on the front side of the machine.
3. Remove the cable connected to the motor.
4. Unscrew the fixing bolts securing the motor using a hex wrench and remove it.
5. Unscrew the set screw securing the pulley using a hex wrench and remove it.
6. Replace the motor with a new one.
Reference
The part number of the new motor is J31041014A
7. Assemble the motor in the reverse order of disassembling.
Reference
When assemblin
g the motor
-
pulley, refer to the following
.
measure its tension and compensate it by referring to "Belt replacement
procedure".
1.6mm
Pulley
Motor
Set Screw
