Conveyor
5-3
Chapter 5. conveyor
5.1. Sensor
5.1.1. Required Tools
Precision screw driver set (other supplied tools)
T wrench (other tools supplied) or hex wrench
+ shape tipped screw driver set
Nipper and cable tie
5.1.2. Common works for sensor replacement
1. Manipulate the teaching box to move the X-Frame to the rear side.
2. Turn Off the PC in normal way. Then turn off the main switch on the front side of the machine.
3. Remove the sensor cable.
4. Unscrew the fixing bolts securing the sensor using a hex wrench and remove it
5. Replace the sensor with a new one.
Reference
The part number of the
new
entry, quick load sensor
is
J3211032A
The part number of the new wait, place, outpot sensor is J3211048A
The part number of the new width home sensor is J3211048A
6. Assemble the sensor in the reverse order of disassembling.

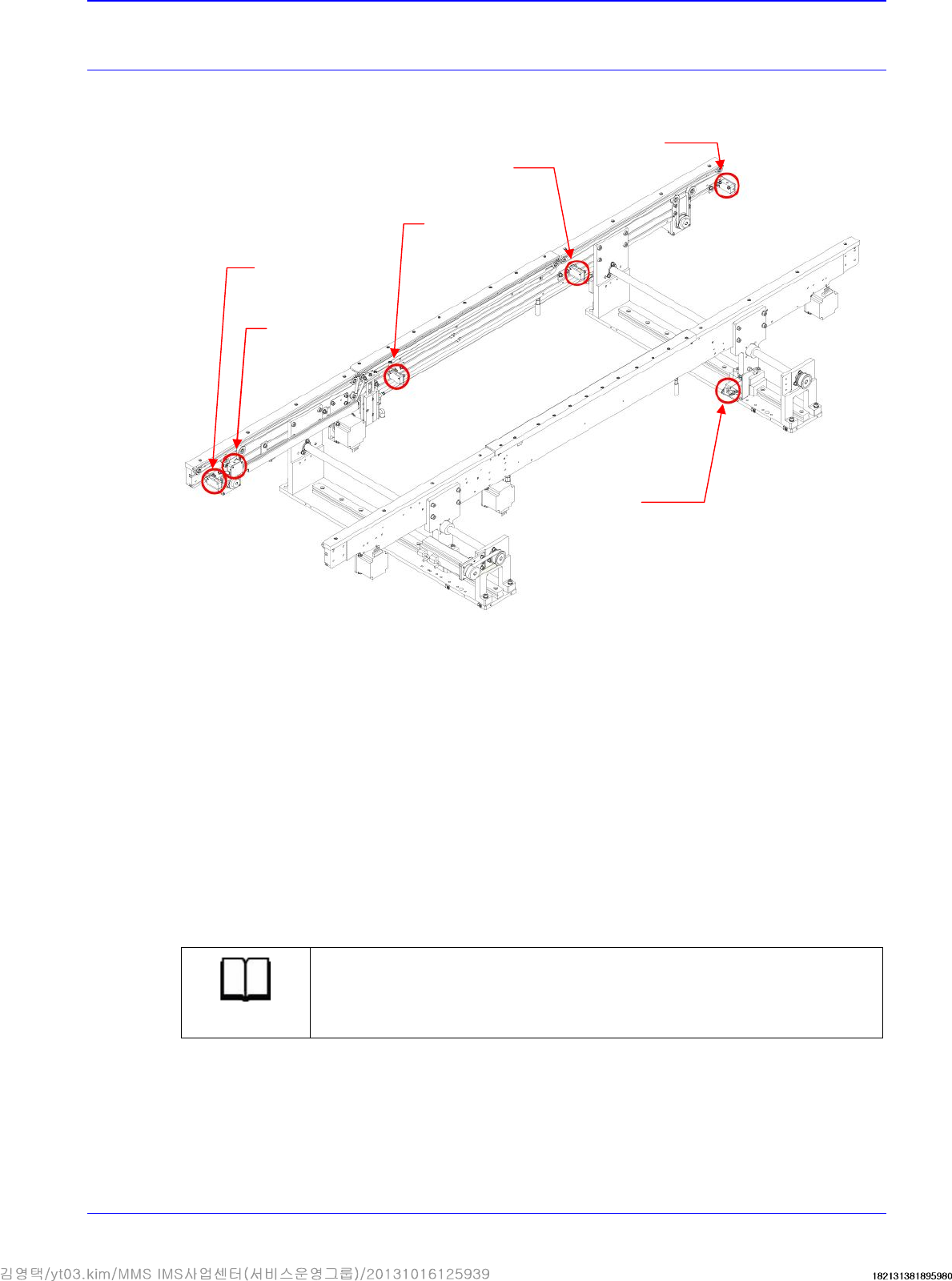

Entry Sensor
WORK ZONE
ENTRY STATION
EXIT STATION
Wait Sensor
Place Sensor
Quick Load
Sensor
Output Sensor
Width Home
Sensor
Advanced High Speed Flexible Mounter
5-4
5.2. Timing Belt
5.2.1. Required Tools
Tension Gage
T wrench (other tools supplied) or hex wrench
- shape tipped screw driver set
Calipers
5.2.2. Common works for Belt replacement
1. Manipulate the teaching box to move the X-Frame to the rear side.
2. Turn Off the PC in normal way. Then turn off the main switch on the front side of the machine.

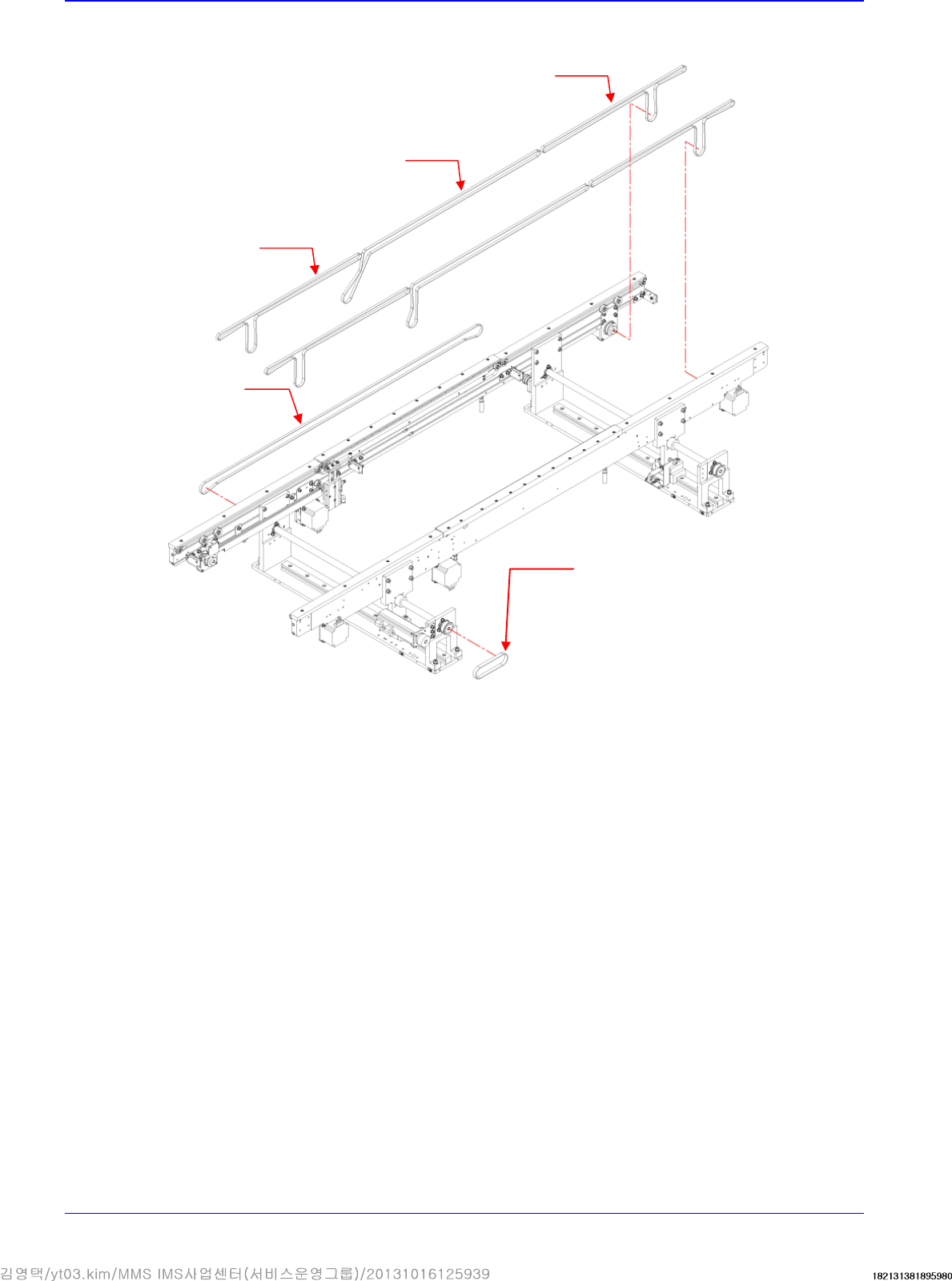

Entry PCB
Transfer belt
Work PCB
Transfer belt
Exit PCB
Transfer belt
Manual Width
adjustment belt
Automatic width
adjustment belt
