For internal use only!
ASM Assembly Systems Singapore Pte Ltd Subject to change without notice 27.07.2018
535 Yishun Industrial Park A ASM TPB2
Singapore 768775 TI2018-02Int01 Seite 3 - 19
3. Final Solution
3.1 New Head Board Design with Head Board Interface Plate
The board are design to be thicker and the new interface plate has optimized strengthening supports
and additional fastening locations for the board.
3.2 New Low Voltage Fusing Board Design
Replace the Low Voltage Fusing Board from FS04 to FS05 with an improved layout of the PCB and
change the component that have better immunity to negative spike from voltage (-1V to 60V) to (-5V to
60V).
3.3 New eSW for JTF-MW
To enable the function of downloading the latest embedded software from the machine to the JTF-MW
control card. New JTF-MW control card (part Number 03117541-01) is released and have to order
together with the kit (03155561-01) for QP2 to be retrofitted for all remaining affected machine. Please
refer to TI2017-02Dis01
for the detailed information.
3.4 D1-127453301 Feeder are in an undefined state after restart of the machine & D1-125647402
Unexpected reboot during feeder eSW download
Apply station software 710.01 SP1 Hotfix04 or later version.
3.5 Gantry Humming/Vibration during movement
Apply station software 710.01 SP1 Hotfix04. Follow retrofit instruction strictly.
4. Retrofitting instructions
4.1 New Head Board Design with Head Board Interface Plate
Parts required:
03169554-xx Head Board Plate 1pc
M4 x 10mm Cap Screws 6pcs
M3 x 10mm Cap Screws 6pcs
M3 x 30mm Cap Screws 2pcs
M3 x 50mm Cap Screws 2pcs
M3 x 40mm Standoffs 7pcs
M3 x 5mm Button Head Screws 7pcs
03163875-xx PCBA Head Interface DLM+TH2 E-series 1pc
or
03164654-xx PCBA Head Interface DLM E-series 1pc
Note: Locitite 243 is not provided and required self-purchase
locally.
For internal use only!
ASM Assembly Systems Singapore Pte Ltd Subject to change without notice 27.07.2018
535 Yishun Industrial Park A ASM TPB2
Singapore 768775 TI2018-02Int01 Seite 4 - 19

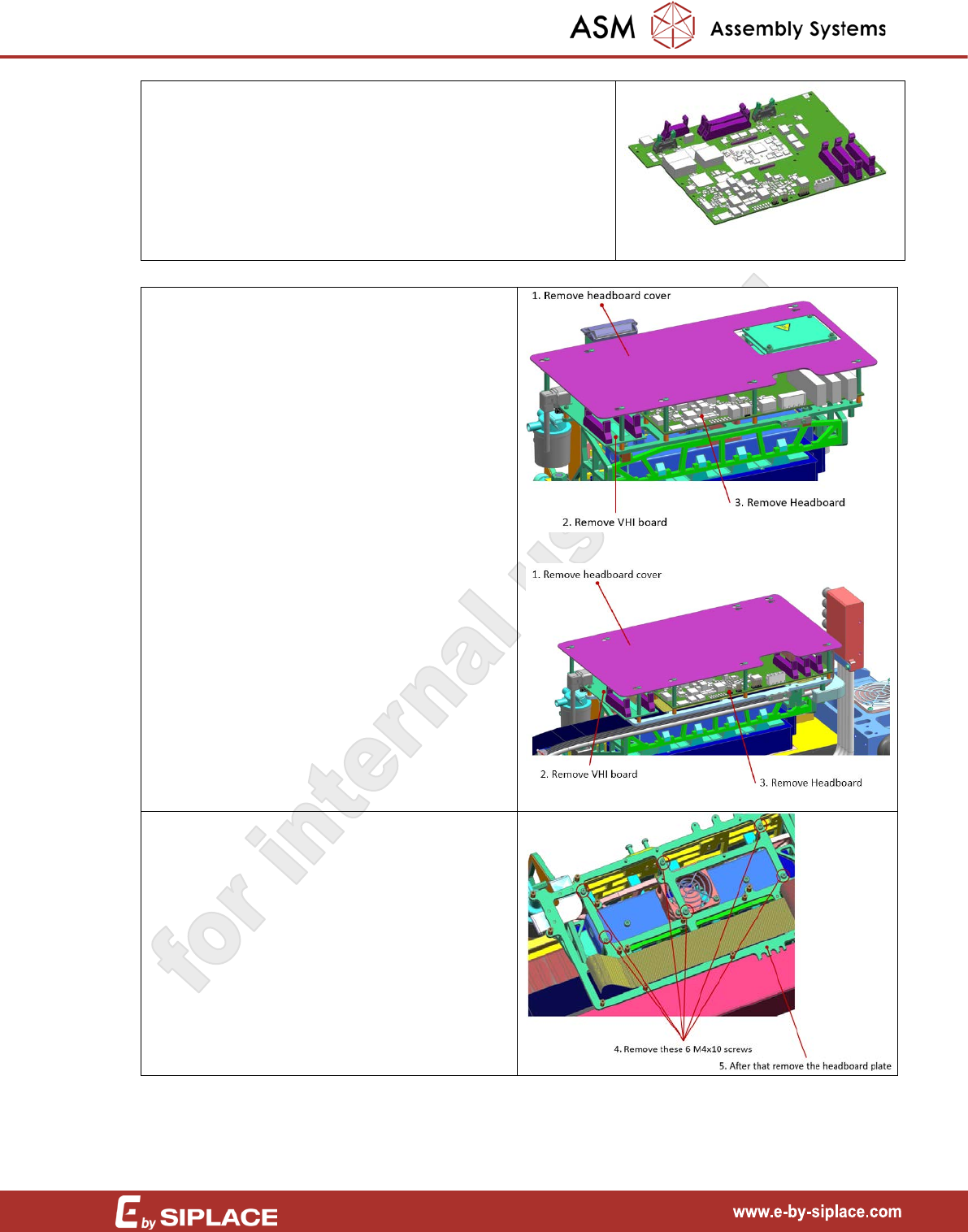

** If the machine is Flex Configuration, DLM/PP
• Power off machine
• Remove the Head board cover via loosen
the screws
• Remove the head board via removing the
standoffs/screws (between head board and
head board cover)
• Remove the VHI board via removing the
standoffs/screws (between VHI and head
board cover)
** If the machine is Speed DLM Configuration
• Power off machine
• Remove the Head board cover via loosen
the screws
• Remove the head board via removing the
standoffs/screws (between head board and
head board cover)
• Remove the VHI board via removing the
standoffs/screws (between VHI and head
board cover)
Or
• Remove the head board plate via removing
the 6pcs of M4x10 screws
For internal use only!
ASM Assembly Systems Singapore Pte Ltd Subject to change without notice 27.07.2018
535 Yishun Industrial Park A ASM TPB2
Singapore 768775 TI2018-02Int01 Seite 5 - 19
•

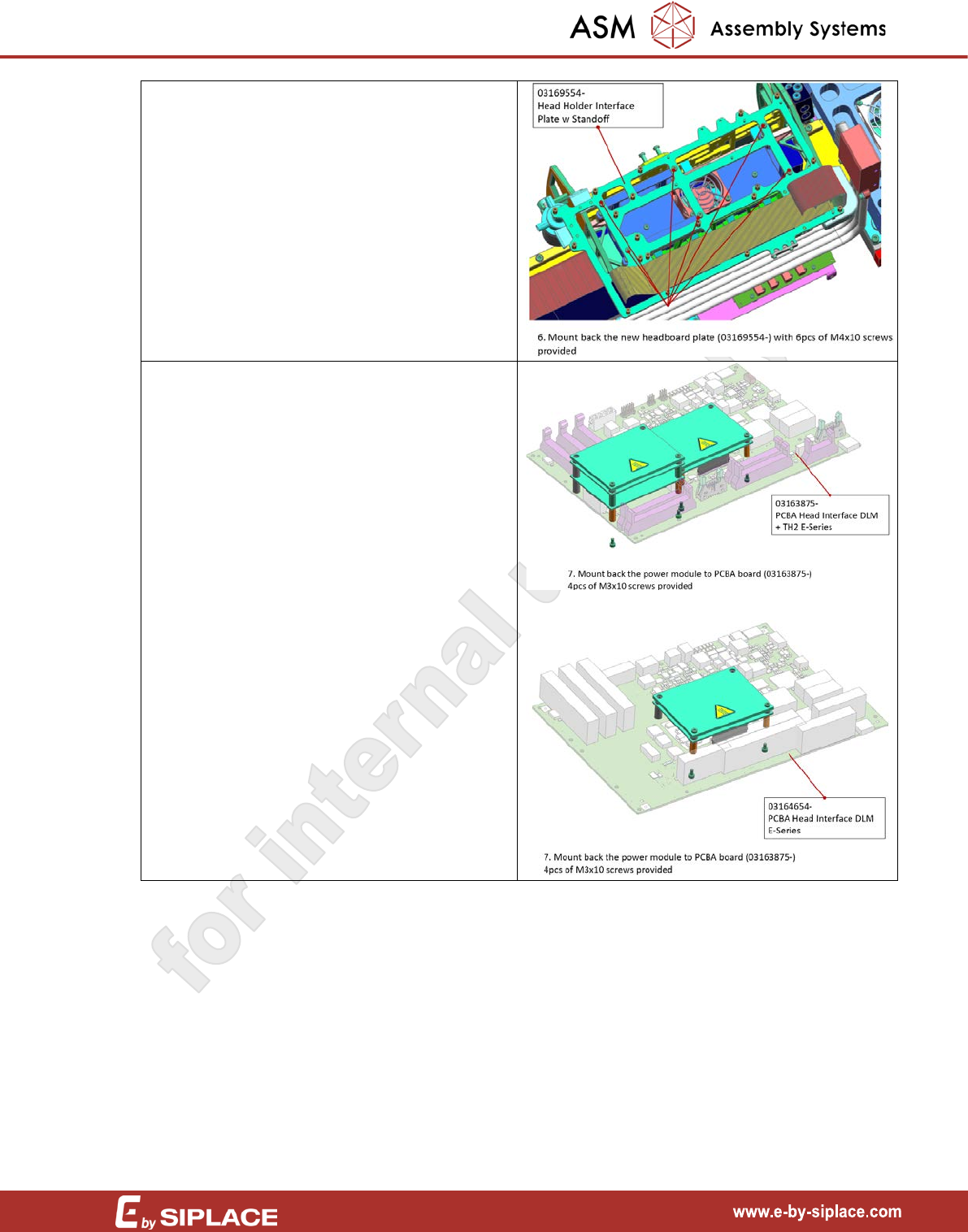

After then, you can remove the head board
plate and mount the new head holder plate
03169554-xx
** If the machine is Flex Configuration, DLM/PP
• Remove the MHCU and power module from
the old head interface board and mount it to
the new head interface board (03163875-xx)
with 4pcs of new M3x10 screws provided
** If the machine is Speed DLM Configuration
• Remove the power module from the old
head interface board and mount it to the new
head interface board (03164654-xx) with
2pcs of new M3x10 screws provided
Or
