Mount back the VHI and head board.
Replace the original 7pcs of M3x40
standoffs with new standoffs provided.
Connect back all the cables and connectors
and secure them well.
• Mount back the head board cover
Note: Ensure all M3 x 5mm Button Head screws
(7pcs) and standoffs are tightening properly.
• Power up machine and resume production
run.
Or
4.2 New Low Voltage Fusing Board Design
Parts required:
03107946-05 Low Voltage Fusing board 1pc
(use only FS05 parts, please see picture on
the right to differentiate between the old and
new board)
For internal use only!
ASM Assembly Systems Singapore Pte Ltd Subject to change without notice 27.07.2018
535 Yishun Industrial Park A ASM TPB2
Singapore 768775 TI2018-02Int01 Seite 8 - 19
•
Power off machine
• Remove all the connectors to the board
• Unscrew 6pcs of M3 x 10mm Cap Screws
to remove the old board (<FS04) from the
Power Supply Module
• Replace with new low voltage fusing
board (FS05) and secure it back to the
power supply module with 6 x M3 x 10mm
Cap Screws.
• Insert back all the connectors and
machine is ready for power up.
4.3 New eSW for JTF-MW
Tools required:
- M3 Hex screwdriver
- M4 Hex screwdriver
Parts required;
- 03117541-xx PCBA RC/JTF-MW/Stick Feeder Ctrl Bd
- 03155561Sxx JTF-MW Control Board
- 03117450-xx PCBA JTF-MW daughter board
- 03024135-xx Distance Bolt (5pcs)
- 03119141-xx Label f. Control Board JTF-MW
- 03042540-xx ISO 4762 – M3 x 5-A2-70 (7pcs)
• Remove existing Control Board and
Daughter Board.
Note: Some of the existing screws and standoff
will be used back
• Mount JTF-MW Control Board (#03117541)
with M3x9 standoff, M3x14 standoff
(#03024135) and (1x) M3x5 Hex. Cap
Screw (#03042540). Pls paste the new label
(03119141-xx over the existing at the
cover).
For internal use only!
ASM Assembly Systems Singapore Pte Ltd Subject to change without notice 27.07.2018
535 Yishun Industrial Park A ASM TPB2
Singapore 768775 TI2018-02Int01 Seite 9 - 19
•

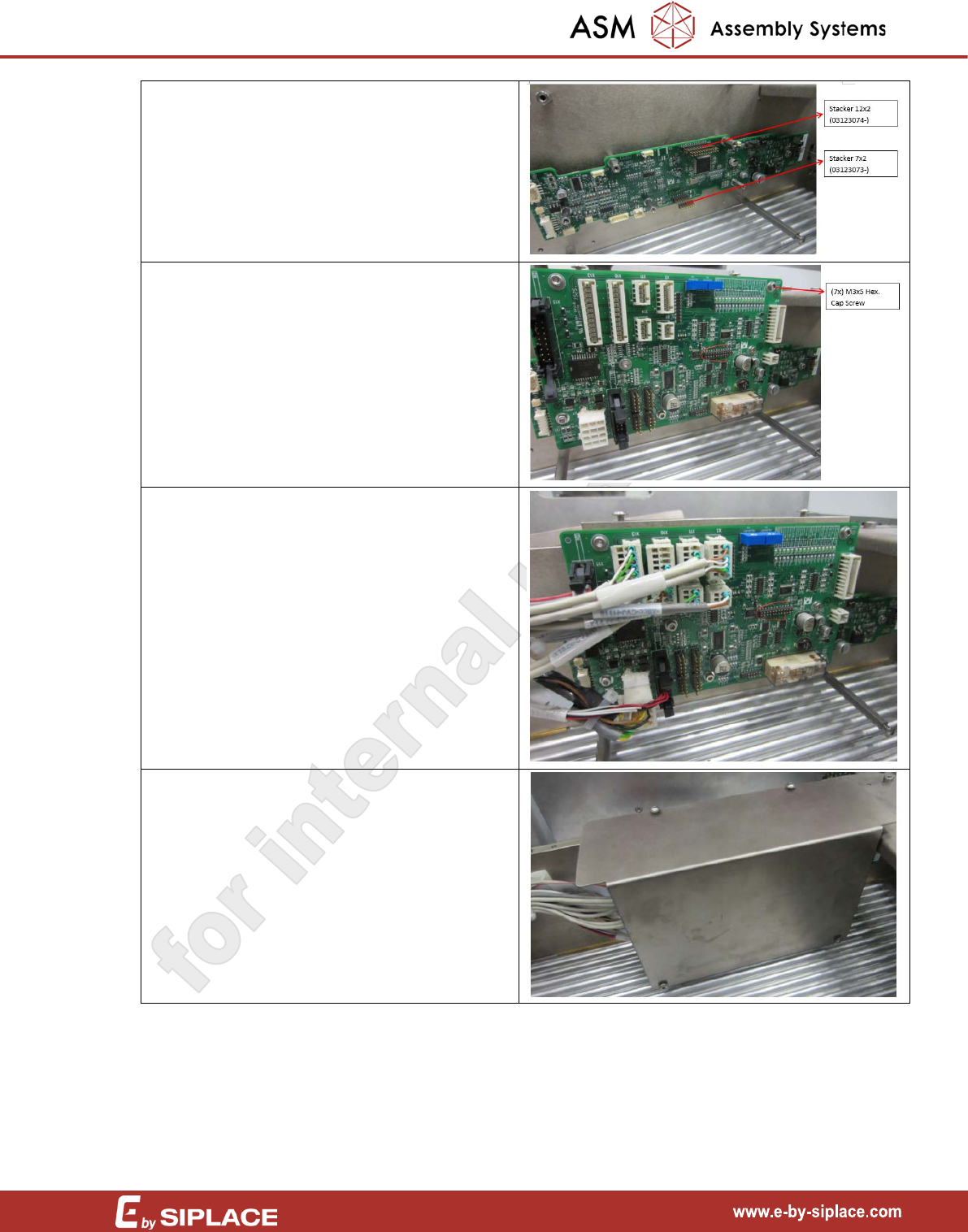

Install stacker (#03123074) and (#03123073)
to JTF-MW Control Board (#03117541)
• Mount JTF-MW daughter board (#03117450)
onto stacker 12x2 (#03123074), stacker 7x2
(#03123073), M3x25 (#03046874) and
M3x14 (#03024135) standoff using (7x)
M3x5 Hex. Cap Screw (#03042540).
• Plug connectors into daughter board
(#03117450)
•
Mount controller cover (#03117085) using
(4x) M4x6 lens flange screw (#03046903).
• Functional verification after installation -
Daughter board and JTF-MW Control Board
should be functional after boots up
4.4 D1-127453301 Feeder are in an undefined state after restart of the machine & D1-125647402
Unexpected reboot during feeder eSW download
Machine station software is required to be upgraded to 710.1 SP1 Hotfix04 as required for chapter 4.5
(this hotfix04 will consists of all the fix in hotfix03). All Feeders and FCU must download the latest eSW
version. Kindly refer to the installation manual for assistance
