- - 10 . SH UT TLE UNI T 4 6 8 9 1 0 1 2 2 2 1 4 1 6 1 7 1 8 1 9 2 4 2 3 2 5 7 7 2 6 2 7 2 8 3 1 2 9 3 0 3 3 2 2 3 4 3 3 3 3 3 5 3 6 3 7 5 2 1 2 0 2 0 1 1 1 1 1 5 1 1 3 1 3 3 8
- -

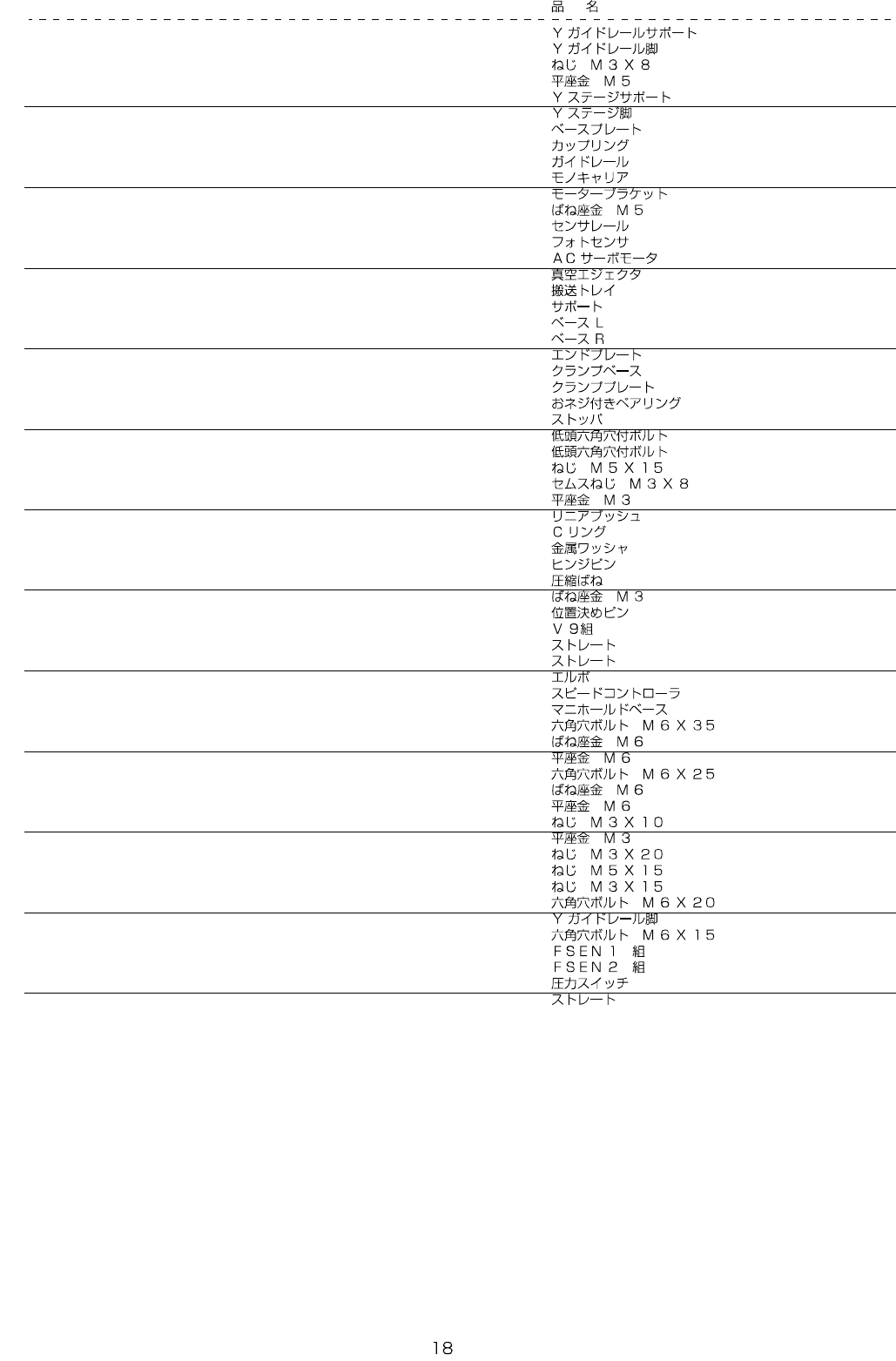

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-24074 Y GUIDE RAIL SUPPORT 1
2 401-24075 Y GUIDE RAIL LEG 1
3 - SCREW M3X8 36
4 - WASHER M5 4
5 401-24078 Y STAGE SUPPORT 1
6 401-24079 Y STAGE LEG 1
7 401-24080 BASE PLATE 1
8 401-24081 COUPLING 1
9 401-24082 GUIDE RAIL 1
10 401-24083 MONOCARRIER 1
11 401-24084 MOTOR BRACKET 1
12 - SPRING WASHER M5 4
13 401-24086 SENSOR RAIL 1
14 401-21305 PHOTO SENSOR 3
15 401-21303 AC SERVO MOTOR 1
16 401-21262 VACUUM EJECTOR 6
17 401-24087 CARRY TRAY 1
18 401-24088 SUPPORT 2
19 401-24089 BASE L 1
20 401-24090 BASE R 1
21 401-24091 END PLATE 1
22 401-24092 CLAMP BASE 2
23 401-24093 CLAMP PLATE 2
24 401-24094 BEARINGS WITH SHAFT SCREW 2
25 401-24095 STOPPER 1
26 401-24107 LOW HEAD CAP SCREW 8
27 401-24108 LOW HEAD CAP SCREW 3
28 - SCREW M5X15 4
29 - SCREW M3X8 4
30 - WASHER M3 8
31 401-24100 LINEAR BUSHING 4
32 401-24101 C RING 8
33 401-24102 METAL WASHER 4
34 401-24103 HINGE PIN 4
35 401-24104 COMPRESSION SPRING 4
36 - SPRING WASHER M3 8
37 401-24106 LOCATING PIN 1
38 401-24469 V9 ASM 1
39 401-24137 STRAIGHT 1
40 401-24138 STRAIGHT 1
41 401-24069 ELBOW 1
42 401-24070 SPEED CONTROLLER 6
43 401-24062 MANIFOLD BASE 1
44 - BOLT M6X35 8
45 - SPRING WASHER M6 8
46 - WASHER M6 8
47 - BOLT M6X25 3
48 - SPRING WASHER M6 3
49 - WASHER M6 3
50 - SCREW M3X10 8
51 - WASHER M3 2
52 - SCREW M3X20 2
53 - SCREW M5X15 18
54 - SCREW M3X15 6
55 - BOLT M6X20 5
56 - Y GUIDE RAIL FOOT 1
57 - BOLT M6X15 12
58 401-24361 FSEN1 ASM 1
59 401-24362 FSEN2 ASM 1
60 - PRESSURE SWITCH 1
61 401-24138 STRAIGHT 1
- -
10. SHUTTLE UNIT
4
6
8
9
1 0
1 2
2 2
1 4
1 6
1 7
1 8
1 9
2 4
2 3
2 5
7
7
2 6
2 7
2 8
3 1
2 9
3 0
3
3 2
2
3 4
3 3
3 3
3 5
3 6
3 7
5
2 1
2 0
2 0
1 1
1 1
1 5
1
1 3
1 3
3 8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-24052 SHUTTLE STAGE 1
2 401-24053 SHUTTLE STAGE BLOCK 1
3 401-24054 SHUTTLE BEAR MOUNT 1
4 401-24055 SHUTTLE LEG 1
5 401-24056 MULTI CONNECTOR ATTACHMENT PLATE 1
6 401-24057 ADSORPTION PIPE 1.7 6
7 401-24058 ADSORPTION PIPE GUIDE 4
8 401-24059 SHUTTLE U BLOCK 1
9 401-24060 SHUTTLE COVER 1
10 401-24061 DUST BOX 1
11 - SCREW M3X6 4
12 401-24063 ACTUATOR 1
13 401-21305 PHOTO SENSOR 3
14 401-21300 AC SERVO MOTOR 1
15 401-24064 CABLEVEYOR 1
16 401-24065 ATTACHMENT METAL FITTING 1
17 401-24066 ATTACHMENT METAL FITTING 1
18 401-24067 MULTI CONNECTOR 1
19 401-24068 MINIATURE ELBOW 6
20 - SCREW M4X6 8
21 - SCREW M4X6 4
22 401-24071 COUPLING 1
23 401-24072 COMPRESSION SPRING 6
24 401-24073 LINEAR BUSHING 6
25 - E-RING 6
26 - BOLT M6X25 2
27 - WASHER M6 2
28 - SCREW M5X12 2
29 - BOLT M6X12 2
30 - WASHER M6 2
31 - SCREW M4X14 2
32 - SCREW M5X10 4
33 - SCREW M3X6 8
34 - SCREW M4X30 4
35 - SCREW M4X15 4
36 - SCREW M5X12 2
37 - WASHER M5 2
38
#01
401-23157 RUBBER TIP 6
