1. FRAME COMPONENTS
2
3
5
2
3
4
7
9
1 0
1 2
1 3
9
1 3
1 2
1 4
1 9
1 9
2 0
2 1
2 2
2 2
2 5
2 6
2 7
2 9
3 0
1 8
3 1
1 0
1 8
3 1
3 2
3 3
3 3
3 2
3 4
3 5
3 6
3 7
3 8
3 8
3 4
3 5
3 6
3 7
3 9
4 0
4 1
2 4
2 5
2 6
2 9
3 0
2 4
4 1
3 9
4 0
4 2
4 3
4 4
2 8
1 1
1 7
1 5
1 5
2 3
1 5
1 5
1 6
1 7
1 1
4 5
8
4 7
4 8
2 7
4 7
4 8
A
A
B
B
4 9
4 9
C
C
D
D
4 6
4 6
5 0
5 0
6
1
5 1
1 6
2 3
- -

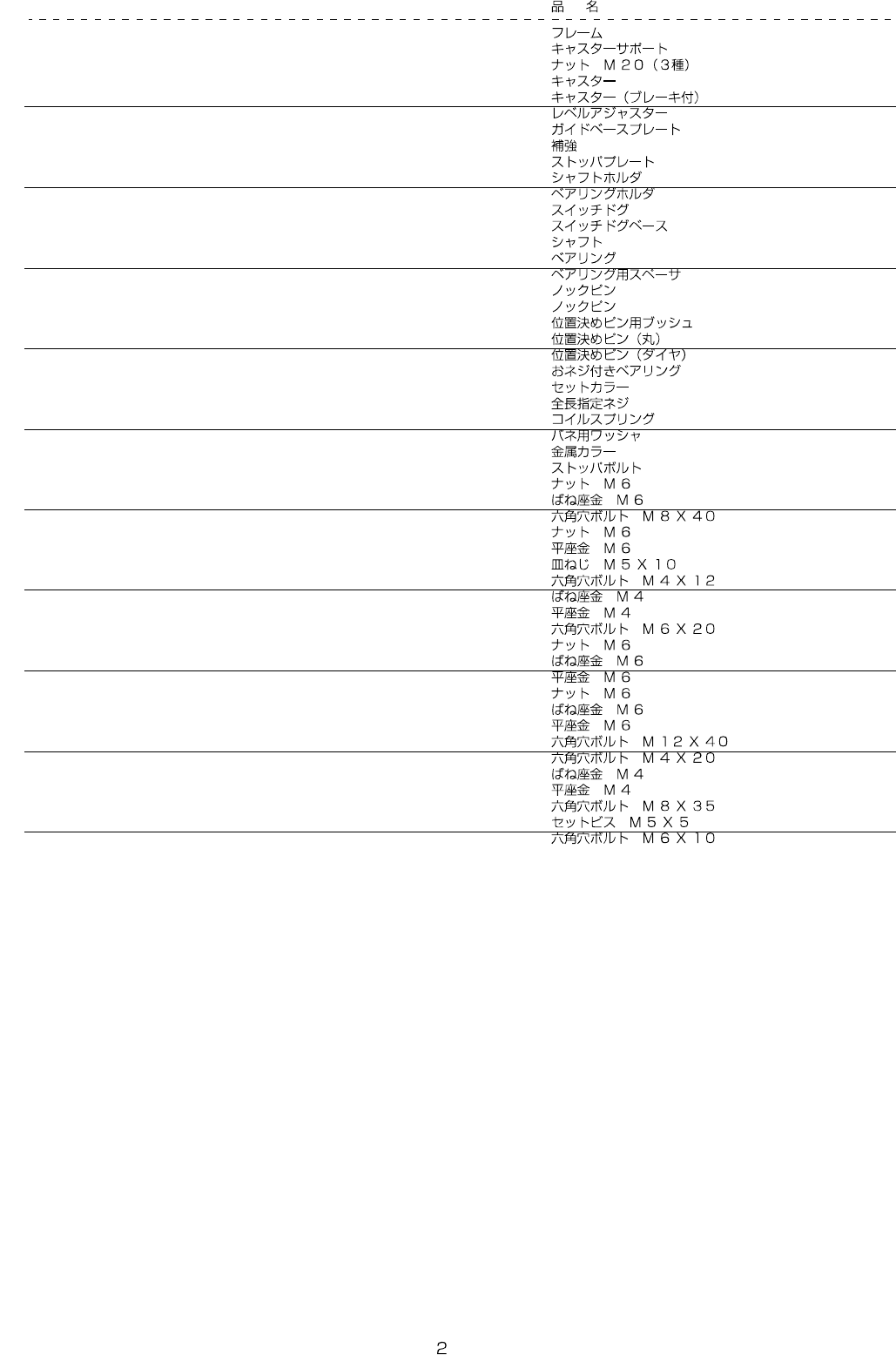

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-24497 FRAME 1
2 401-24498 CASTER SUPPORT 4
3 - NUT M20 4
4 401-24500 CASTER 2
5 401-24501 CASTER 2
6 401-24502 LEVEL ADJUSTER 1
7 401-24503 GUIDE BASEPLATE 1
8 401-24504 REINFORCEMENT 1
9 401-24505 STOPPER PLATE 2
10 401-24506 SHAFT HOLDER 2
11 401-24507 BEARING HOLDER 2
12 401-24508 SWITCH DOGS 2
13 401-24509 SWITCH DOGS BASE 2
14 401-24510 SHAFT 1
15 401-24511 BEARING 4
16 401-24512 SPACER FOR BEARINGS 2
17 401-24513 DOWEL PINS 2
18 401-24514 DOWEL PINS 2
19 401-24515 BUSHINGS FOR LOCATING PINS 2
20 401-24516 LOCATING PINS 1
21 401-24517 LOCATING PINS 1
22 401-24518 BEARINGS WITH SHAFT SCREW 4
23 401-24519 SET COLLARS 2
24 401-24520 LENGTH SPECIFIED SCREWS 2
25 401-24521 COIL SPRINGS 2
26 401-24522 WASHERS FOR SPRING 2
27 401-24523 COLLARS 2
28 401-24528 STOPPER BOLT 1
29 - NUT M6 2
30 - SPRING WASHER M6 2
31 - BOLT M8X40 8
32 - NUT M6 2
33 - WASHER M6 2
34 - SCREW M5X10 4
35 - BOLT M4X12 4
36 - SPRING WASHER M4 4
37 - WASHER M4 4
38 - BOLT M6X20 4
39 - NUT M6 2
40 - SPRING WASHER M6 2
41 - WASHER M6 2
42 - NUT M6 1
43 - SPRING WASHER M6 1
44 - WASHER M6 1
45 - BOLT M12X40 4
46 - BOLT M4X20 2
47 - SPRING WASHER M4 2
48 - WASHER M4 2
49 - BOLT M8X35 8
50 - SET SCREW M5X5 2
51 - BOLT M6X10 16
