Mechanical Drawings 21 15 6273 Is sue 2 T rans it Brac ket , ASM GA A B C D REMOVE ALL BURRS & SHARP EDGES 45 6 1 2 3 45 6 1 2 3 A B C E E PROJECTION D DRAWN APPROVED DATE C COPYRIGHT DO NO T SCALE SCALE TITLE DRAWIN…
20 Mechanical Drawings

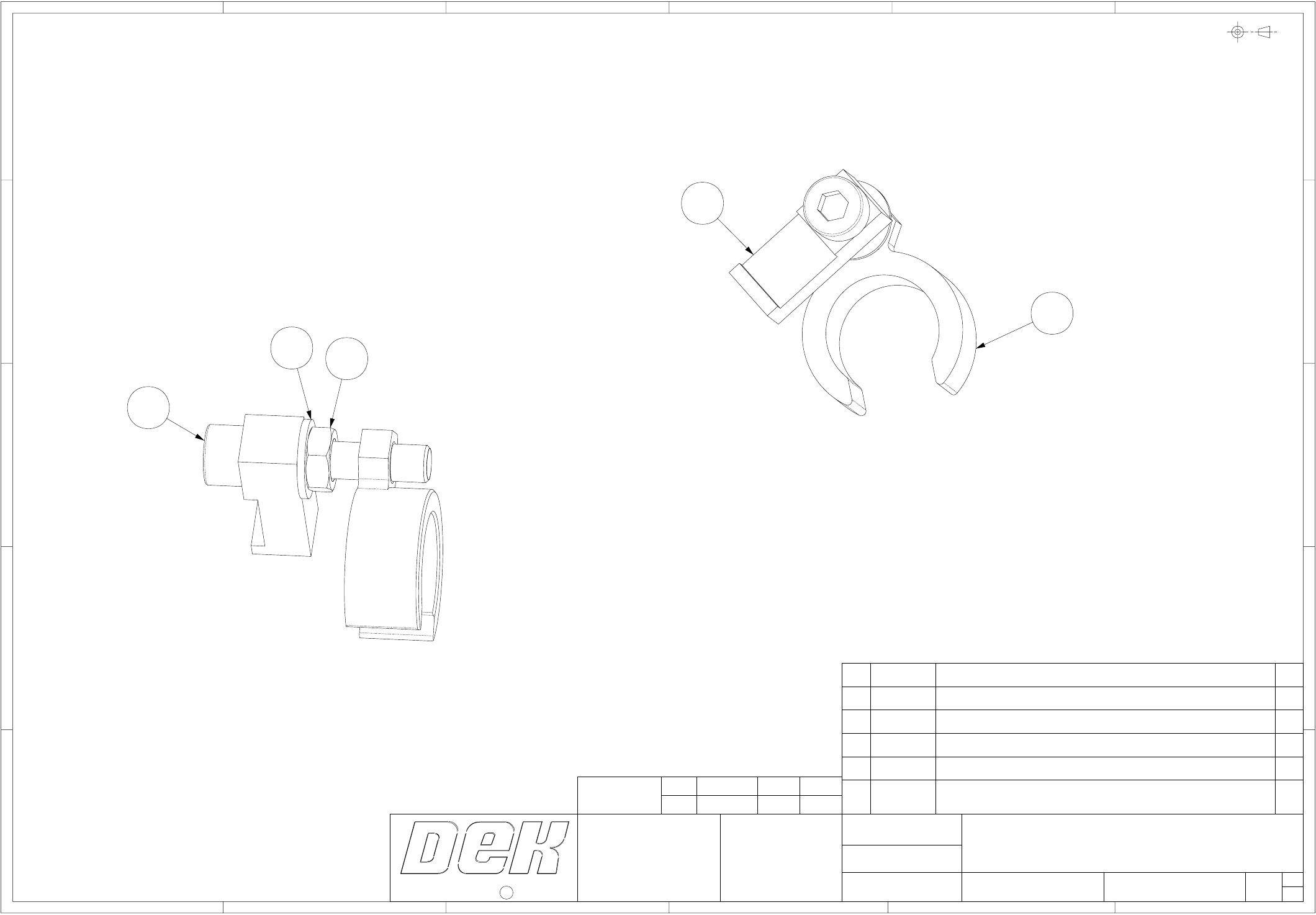

156242 Issue 1 Restrainer Actuator GA
A
B
C
D
REMOVE ALL BURRS & SHARP EDGES
456
1
2
3
456
1
2
3
A
B
C
E
E
PROJECTION
D
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2000
BOM NUMBER
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
2:1
ACR
RESTRAINER, ACTUATOR
11-Nov-98
156242
156243
SH 1
OF 1
A
2
ITEM PART NO. DESCRIPTION QTY.
1
137195 BLOCK, REAR 1
2
156291 COLLAR, SHORT 1
3
700184 SCREW M8X40 CAP HD ST.ST 1
4
700512 NUT M8 HEX. LOCK ST.ST 1
5
700605 WASH M8 PLAIN FRM A CLEAR ZN.PL 1
LATEST
ISSUE
No. DATE DCR INITIAL
01 11-Nov-98 ... ACR
RESTRAINER BOM, ACTUATORS; 156243 (SET OF THREE)
M TRAY, RESTRAINERS; 156244 (SET OF THREE)
SIMLIAR TO GA 137189
4
5
3
1
2
Mechanical Drawings 21
156273 Issue 2 Transit Bracket, ASM GA
A
B
C
D
REMOVE ALL BURRS & SHARP EDGES
456
1
2
3
456
1
2
3
A
B
C
E
E
PROJECTION
D
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
1999
BOM NUMBER
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
2:5
ACR
TRANSIT BRACKET, ASM
30-Oct-98
156273
156301
SH 1
OF 1
A
2
ITEM PART NO. DESCRIPTION QTY.
1
113072 M8 STUDDING 120 LONG 4
2
129125 TRANSIT BRACKET PASTE DISPENSER 1
3
156242 RESTRAINER, ACTUATOR 3
4
156246 TRANSIT BRACKET 2
5
156247 STOP, CARRIAGE RIGHT 1
6
156250 STOP, CARRIAGE LEFT 1
7
156416 PROFLOW MECH. TRANSIT BRACKET 1
8
156417 SQUEEGEE MECH. TRANSIT BRKT. 1
9
156841 CAMERA BRACKET 1
10
700115 SCREW M5X12 CAP HD ST.ST 9
11
700116 SCREW M5X16 CAP HD ST.ST 11
12
700501 NUT M5 NI-LOCK 985 2
13
700507 NUT M8 FULL ST.ST 12
14
700603 WASHER M5 PLAIN FORM A ST.ST 19
15
700605 WASH M8 PLAIN FRM A CLEAR ZN.PL 12
16
700624 WASHER 2BA PLAIN LARGE T2 ST.ST 4
LATEST
ISSUE
No. DATE DCR INITIAL
02 30-Sep-99 21317 ACR
1
3
4
11
13
14
15
16
2
5
6
10
12
7
8
9
22 Mechanical Drawings
156384 Issue 5 Spring Beam Assembly GA
A
B
C
D
REMOVE ALL BURRS & SHARP EDGES
456
1
2
3
456
1
2
3
A
B
C
E
E
PROJECTION
D
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2000
BOM NUMBER
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
R PIATEK
SPRING BEAM GA
04-Feb-99
156384
PART OF 156312
SH 1
OF 1
A
2
ITEM PART NO. DESCRIPTION QTY.
1
156024 CLAMP PLATE 4
2
156252 OUTER SPRING MTG. PLATE 1
3
156253 SPRING BEAM 2
4
156255 ATTACHMENT BLOCK 1
5
156287 UPPER SOLID 2
6
156288 LOWER SOLID 2
LATEST
ISSUE
No. DATE DCR INITIAL
05 20-DEC-00 26573 PH
NOTE: -
1. ITEM 6 TO BE MOUNTED ON THE OUTER FACE OF
ITEM 3 IN BOTH INSTANCES.
2. ALSO AVAILABLE AS BOM 156971.
1
4
5
6
NOTE ORIENTATION
OF HOLE
2
3
