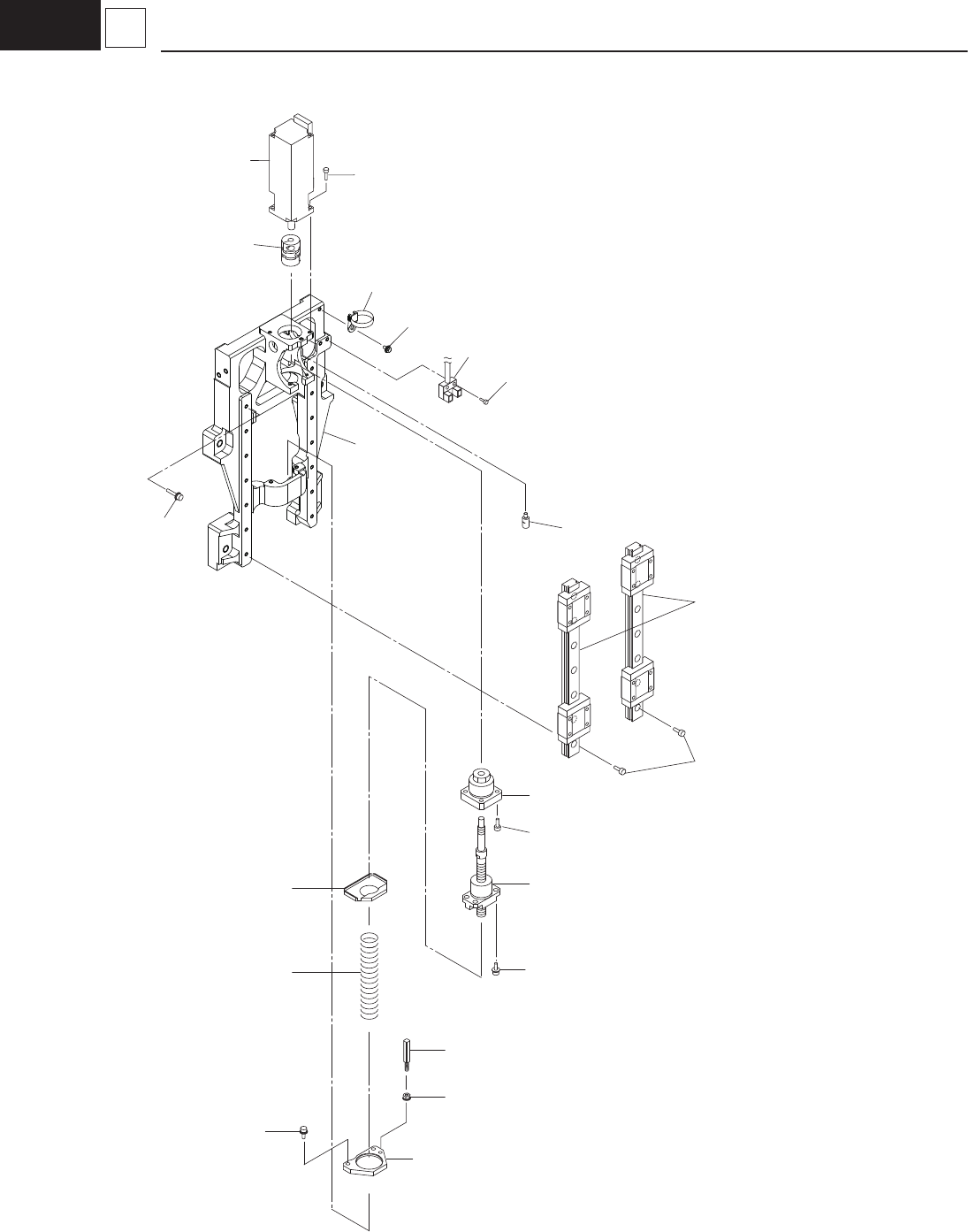

– 8 – G1 3 Base Section 1402-001 283 271 285 272 236 235 212 213 214 211 265 258 201 244 202 268 263 269 M33 B314C 266 267 282 284 285 258 239 242
– 7 –
HIGH SPEED HEAD(DDH V11)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYA-M701J-00 1005DA00 PCB-MOUNT 1
102 KYB-M850W-00 1005AB04 PIPE_FITTINGS 1
103 KYB-M702S-00 1005AB0A PIPE_FITTINGS 1
104 KYA-M700X-00 10063000 ASSY,VALVE Y0208 1
105 KYB-M220P-00 1005AB0E PIPE_FITTINGS 1
106 KYA-M700M-00 1006D40K BRACKET_PCB 1
107 KYC-M177Y-00 23N30589 ACCESS WIRING 1
108 90112-02J010 221AB014 BOLT,HEX.SOCKET HEAD 2
109 91312-04020 221AA021 BOLT,HEX.SOCKET HEAD 1
110 90990-11J009 221DA051 MACHINE SCREW 7
111 90990-11J010 221DA056 SCREW,PAN HEAD WW 2
112 90171-02J026 221HA101 WASHER,PLAIN 2
113 92902-04200 221HA104 WASHER 1
121 KYA-M700T-00 1005BC1M HNS,HEAD-IN-P 1
122 KYA-M700U-00 1005BC1P HNS,HEAD-IN-S 1
123 KYA-M700V-00 1005BC1Q HNS,DD-PULSE 1
124 KYB-M65AW-00 23N30632 WIRING 5
125 KYA-M7026-00 1006D40B SPACER 8
126 KYB-M656C-00 0916D209 ACCESS-WIRING 13
131 KYA-M7022-00 1006370B TUBE_D4 1
132 KYA-M7023-00 1006370C TUBE_D8 1
1402-001
– 9 –
HIGH SPEED HEAD(DDH V11)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201
KYA-M700S-00
0916DL1K MOTOR 1
202 KYB-M702C-00 0916DK19 COUPLING 1
211 KYB-M703T-00 1011D21U PLATE_HL-SP 1
212 KYB-M703S-00 1011D21C STOPPER_HL 1
213 95302-03700 221FA006 NUT_HEX 1
214 92902-03200 221HA103 WASHER,PLAIN 1
235 KYB-M703U-00 1011D21Z SPRING_COMP 1
236 KYB-M702K-00 0916DL21 PLATE_HL_SPRING 1
239 92902-03200 221HA103 WASHER,PLAIN 2
242 91312-03010 221AA007 ROHS;BOLT_HEX-SCT 2
244 90112-2AJ010 221AA321 BOLT,HEX.SOCKET HEAD 2
258 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 6
263 KYB-M656C-00 0916D209 ACCESS-WIRING 1
265 KYA-M7014-00 1006360D ASSY,SENSOR X314C 1
266 KYB-M7045-00 221A0468 BOLT_HEX-SCT 4
267 92902-06200 221HA106 WASHER 4
268 KYB-M65AW-00 23N30632 WIRING 1
269 90990-11J009 221DA051 MACHINE SCREW 1
271 KYF-M862L-00 0916DK29 BEARING_UNIT 1
272 KYB-M700P-00 0916DL1E HL_BALL_SCREW 1
282 KYB-M704H-00 226J2537 STOPPER 1
283 KYB-M7018-00 1011D202 GUIDE_LINEAR_HL 2
284 KYA-M700C-00 1006D328 BASE_OUTER 1
285 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 18
1402-001
