– 13 – HIGH SP E ED HEAD(DDH V 1 1 ) No. Part No. Part Name Qty . Detail Y amaha Hitachi 404 KYB-M701U-00 23D10016 ACCESSORY_SV 15 405 KYB-M703C-00 101 1300J ASSY_TOP BLOCK 15 4 11 KYB-M700V -00 1006331V ASSY_NOZZLE_SHAF…
– 13 –

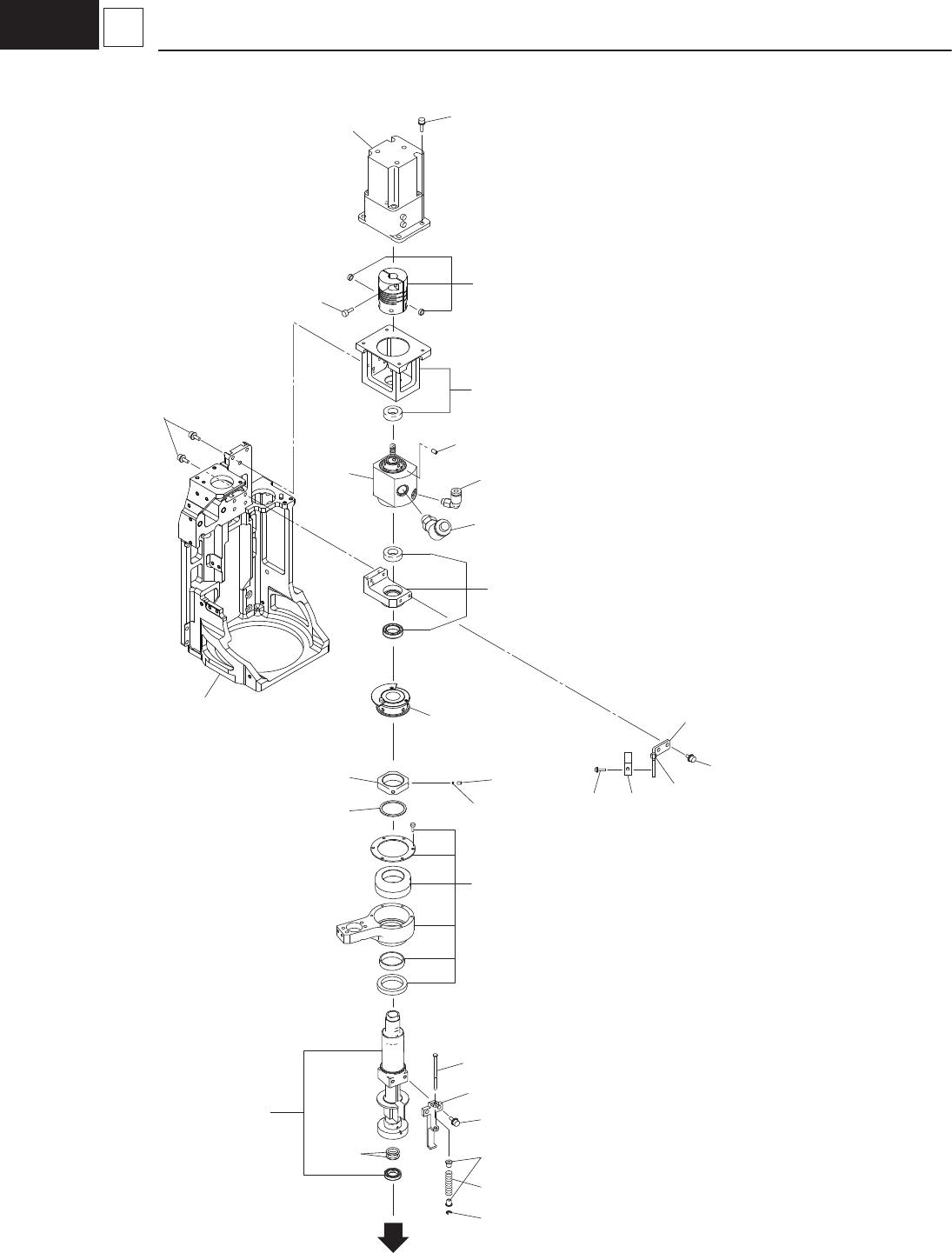

HIGH SPEED HEAD(DDH V11)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
404
KYB-M701U-00
23D10016 ACCESSORY_SV 15
405 KYB-M703C-00 1011300J ASSY_TOP BLOCK 15
411 KYB-M700V-00 1006331V ASSY_NOZZLE_SHAFT 15
412 KYB-M704E-00 226A0279 SEAL 15
413 KYA-M700J-00 1006D30F ROTOR_LOWER 1
414 KYB-M702R-00 1001DK1L SPRING_COMP_NOZ 15
415 90112-02J004 221AA121 ROHS_HEX-SCT 15
418 KYA-M700N-00 0916DK2A MOTOR_AC-SERVO 1
420 KYA-M7017-00 1006D30J SENSOR_PELEC 1
421 KYB-M701R-00 216B1811 HOLDER 15
422 KYB-M704D-00 225B0572 AIR_CLEAN_EQPT 30
423 KYB-M702B-00 0916D338 SEAL 30
426 KYA-M7025-00 1006D307 BLOCK_LINE_SENS 1
427 KYA-M7024-00 1006D306 BRACKET_LN_SENS 1
428 KYB-M702A-00 0916D31G DISK 1
432 KYB-M7029-00 0916D31F DISK 1
440 90990-01J114 221AA330 ROHS_HEX-SCT 15
441 90112-02J004 221AA121 ROHS_HEX-SCT 3
450 91312-05016 221AA031 ROHS_HEX-SCT 4
451 92902-05200 221HA105 WASHER 4
453 90990-01J117 221AA332 ROHS_HEX-SCT 2
454 91317-03035 221AA206 BOLT,HEX.SOCKET HEAD 2
455 91317-03008 221AA202 BOLT,HEX.SOCKET HEAD 4
456 92907-03200 221HA290 WASHER,PLAIN 4
462 90990-01J115 221AB009 BOLT,HEX.SOCKET HEAD 8
471 KYA-M700-00 0916DK13 ROTOR_UPPER 1
473 KYB-M704G-00 226A0293 SEAL 2
481 KYB-M702F-00 0916DK2D HOLDER 15
482 KYB-M7028-00 0916D31E SEAL 45
483 KYB-M704E-00 226A0279 SEAL 15
484 KYB-M704F-00 226A0286 SEAL 15
1402-001
