– 1 1 – HIGH SP E ED HEAD(DDH V 1 1 ) No. Part No. Part Name Qty . Detail Y amaha Hitachi 301 KYB-M704C-00 223Q0769 PULLEY_TIMING 1 302 KYB-M7041-00 21 1D9619 PLA TE 1 303 901 12-02J004 221AA121 ROHS_HEX-SCT 2 3 11 KY A-…

100%1 / 26
– 10 –

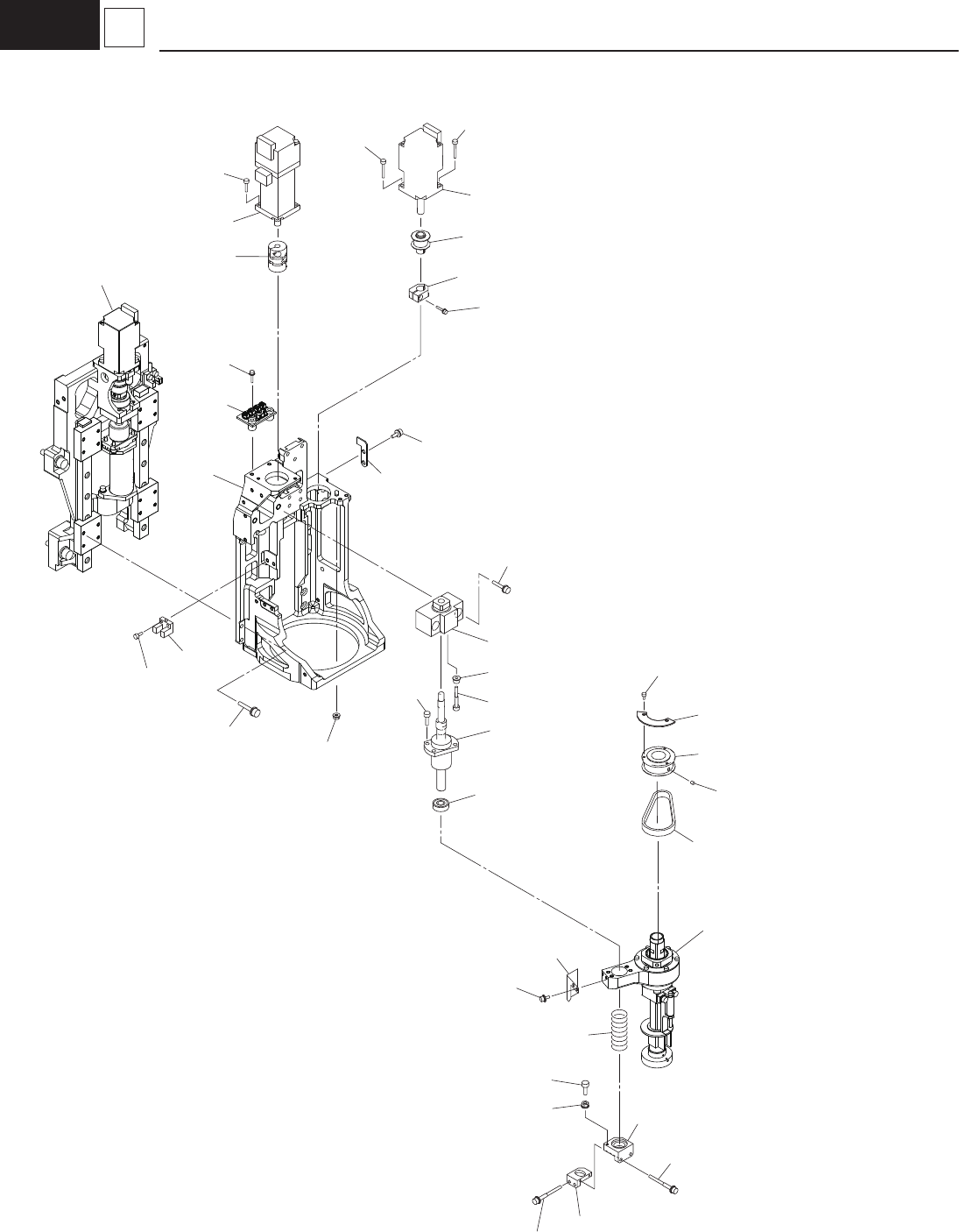

G1
4 Nozzle Leveller, and selecter
1402-001
343
339
349
393
385
347
346
339
358
342
314
303
384
344
344
392
348
349
358
322
321
311
324
319
370
See Fig. G1-6
See Fig. G3
331
330
312
313
329
391
334
382
381
301
302
383
333
U05
M32
B0503
352
360
347
337
338
339
371
– 11 –
HIGH SPEED HEAD(DDH V11)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
301
KYB-M704C-00
223Q0769 PULLEY_TIMING 1
302 KYB-M7041-00 211D9619 PLATE 1
303 90112-02J004 221AA121 ROHS_HEX-SCT 2
311 KYA-M700P-00 0916DK2B MOTOR 1
312 KYB-M704B-00 223Q0711 PULLEY_TIMING 1
313 KYB-M7042-00 211G3396 BLOCK 1
314 90112-02J010 221AB014 BOLT,HEX.SOCKET HEAD 1
319 KYB-M7012-00 1011300U ASSY_SEN_NL 1
321 KYA-M700R-00 0916DK2C MOTOR 1
322 KYB-M702C-00 0916DK19 COUPLING 1
324 KYB-M705K-00 223L0358 BELT_TIMING 1
329 KYB-M702J-00 0916DK3F SENSOR_DOG_NL 1
330 KYB-M703P-00 1011D20X PLATE_HL 1
331 KYA-M700B-00 1006D327 BASE_INNER 1
333 KYB-M702P-00 1001D308 SPRING_COMP_NL 1
334 KYB-M702G-00 0916DK3C BLOCK_NL_SPRING 1
337 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2
338 92902-03100 221HA003 WASHER,SPRING 2
339 92902-03200 221HA103 WASHER,PLAIN 22
342 91312-03010 221AA007 ROHS;BOLT_HEX-SCT 3
343 90990-02J019 221CA026 SCREW,SET 2
344 90112-2AJ010 221AA321 BOLT,HEX.SOCKET HEAD 3
345 90112-2AJ016 221AA322 BOLT,HEX.SOCKET HEAD 1
346 90189-02J2A6 221FA003 NUT,HEXAGON 1
347 90171-02J2A6 221HA102 WASHER,PLAIN 3
348 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 2
349 91312-03012 221AA008 BOLT,HEX.SOCKET HEAD 4
352 90112-2AJ006 221AA145 BOLT,HEX.SOCKET HEAD 2
358 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 18
360 90990-38J004 221HA002 WASHER,SPRING 2
362 90990-01J115 221AB009 BOLT,HEX.SOCKET HEAD 2
370 KYB-M701J-00 1011D606 PCB-MOUNT 1
371 90990-11J013 221DA050 SCREW,PAN HEAD WW 2
381 KYB-M700M-00 0916DK3Q BALL_SCREW_NL 1
382 KYB-M700R-00 1001D309 SUPPORT_UNIT_NL 1
383 KYB-M700N-00 0916DK3S BEARING_NL 1
384 91312-03020 221AA011 BOLT,HEX.SOCKET HEAD 1
385 95302-03600 221FA005 NUT_HEX 1
391 KYB-M702H-00 0916DK3D BLOCK_NL_BEARING 1
392 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 1
393 95302-03600 221FA005 NUT_HEX 1
1402-001
– 12 –
G1
5 Nozzle Shaft, Vacuum Filter, DD Motor
1402-001
456
455
456
455
426
427
432
413
A
462
462
462
453
440
422
421
423
404
428
454
405
411
411
420
B
D
C
DETAIL C
DETAIL B
DETAIL D
483
481
412
412
418
414
415
481
482
483
484
484
414
415
482
DETAIL A
441
B0302T
M31
U0001-0015
U04
473
471
450
451
See Fig. G1-6
Key No.502
B0302R
