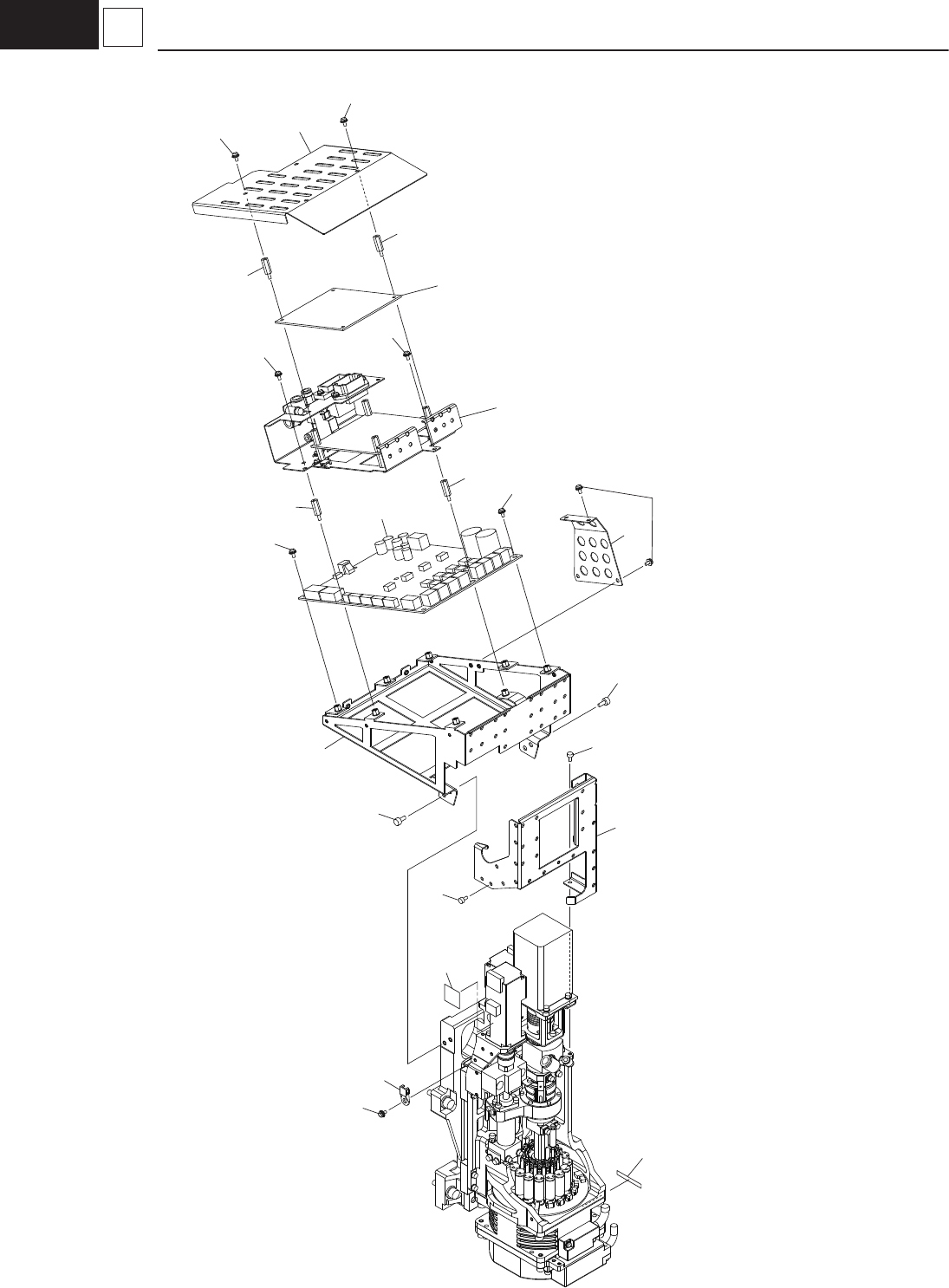

– 2 – G1 G1 HIGH SPEED HEAD(DDH V1 1) 1 Cover , Cable 1402-001 U03 12 13 13 12 7 6 4 5 12 12 12 12 13 13 10 11 8 12 34 See Fig. G2 See Fig. G1-5 Key No.420 33 12 25 10 11

– 1 –

GS-HH850

CONTENTS

G1 HIGH SPEED HEAD(DDH V11) 2

1 Cover, Cable 2

2 Electrical Box 6

3 Base Section 8

4 Nozzle Leveller, and selecter 10

5 Nozzle Shaft, Vacuum Filter, DD Motor 12

6 Center Shaft 14

– 2 –

G1 HIGH SPEED HEAD(DDH V11)

1 Cover, Cable

1402-001

U03

See Fig. G2

See Fig. G1-5

Key No.420

– 3 –

HIGH SPEED HEAD(DDH V11)

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

KYA-M700D-00

1006D40J BOX_ELE 1

5 KYB-M658U-00 4U240493 UNIT-DRIVER 1

6 KYA-M701E-00 1006D40L BRACKET_CONNECTOR 1

7 KYA-M701F-00 1006D40M COVER_ELE_BOX 1

8 KYB-M700E-00 1011D215 BRACKET_MV-CAB 1

10 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 4

11 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 4

12 90990-11J009 221DA051 MACHINE SCREW 17

13 KYA-M7026-00 1006D40B SPACER 8

21 KYA-M701G-00 1006D701 HNS,CBL-SLIP-RING 1

22 KYA-M701H-00 1006D702 HNS,CBL-HEAD-SENSOR 1

23 KYA-M702D-00 23N30172 ACCESS-WIRING 1

24 KYB-M656C-00 0916D209 ACCESS-WIRING 120

25 KYB-M65AW-00 23N30632 WIRING 1

33 KYB-M7008-00 0914014W ASSY_WARNING-HH_1 1

34 KYA-M704A-00 1006360H ASSY_NAMEPLATE 1

1402-001
