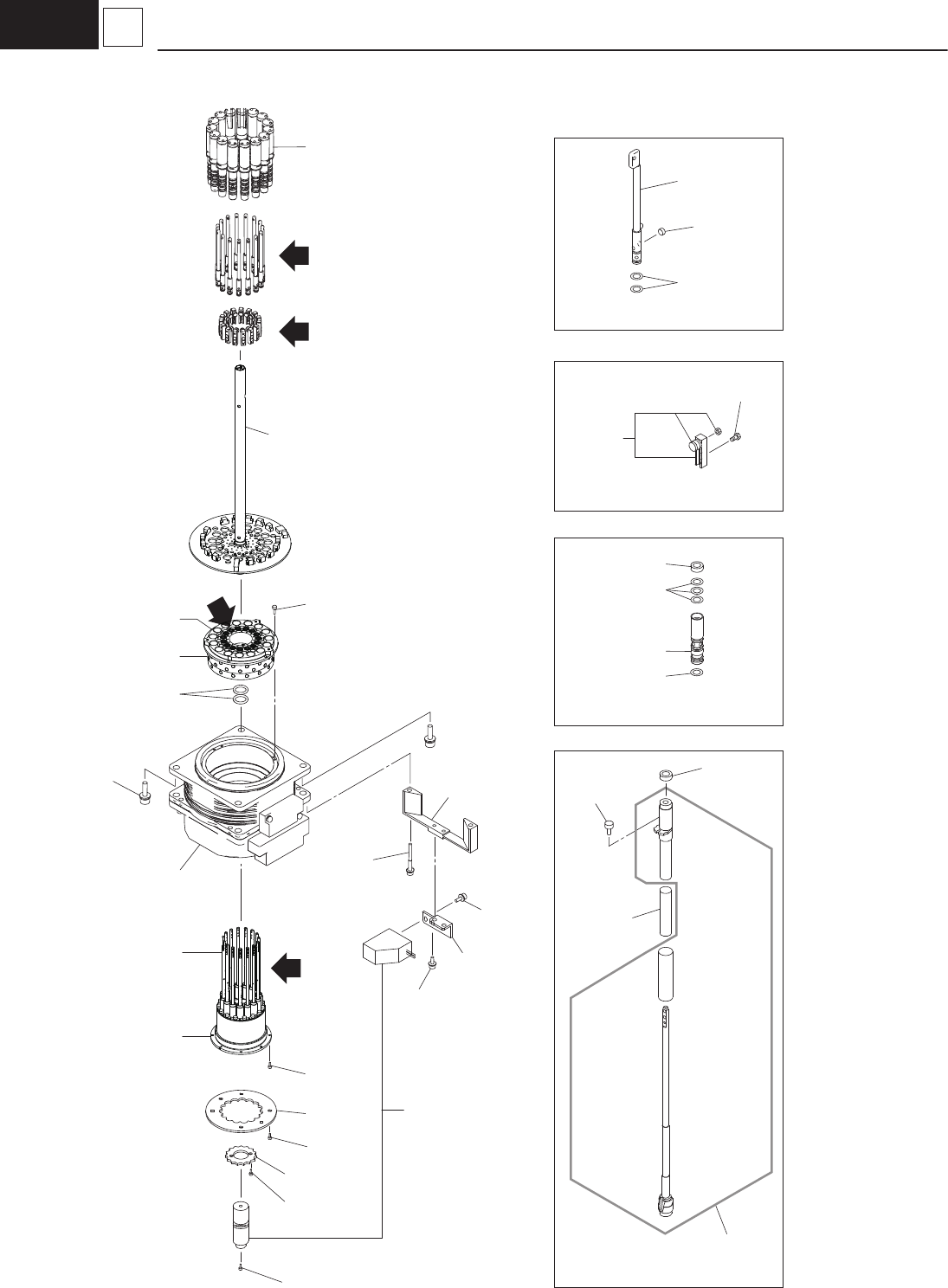

– 12 – G1 5 Nozzle Shaft, V acuum Filter , DD Motor 1402-001 456 455 456 455 426 427 432 413 A 462 462 462 453 440 422 421 423 404 428 454 405 411 411 420 B D C DET AIL C DET AIL B DET AIL D 483 481 412 412 418 414 415 4…
– 11 –
HIGH SPEED HEAD(DDH V11)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
301
KYB-M704C-00
223Q0769 PULLEY_TIMING 1
302 KYB-M7041-00 211D9619 PLATE 1
303 90112-02J004 221AA121 ROHS_HEX-SCT 2
311 KYA-M700P-00 0916DK2B MOTOR 1
312 KYB-M704B-00 223Q0711 PULLEY_TIMING 1
313 KYB-M7042-00 211G3396 BLOCK 1
314 90112-02J010 221AB014 BOLT,HEX.SOCKET HEAD 1
319 KYB-M7012-00 1011300U ASSY_SEN_NL 1
321 KYA-M700R-00 0916DK2C MOTOR 1
322 KYB-M702C-00 0916DK19 COUPLING 1
324 KYB-M705K-00 223L0358 BELT_TIMING 1
329 KYB-M702J-00 0916DK3F SENSOR_DOG_NL 1
330 KYB-M703P-00 1011D20X PLATE_HL 1
331 KYA-M700B-00 1006D327 BASE_INNER 1
333 KYB-M702P-00 1001D308 SPRING_COMP_NL 1
334 KYB-M702G-00 0916DK3C BLOCK_NL_SPRING 1
337 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2
338 92902-03100 221HA003 WASHER,SPRING 2
339 92902-03200 221HA103 WASHER,PLAIN 22
342 91312-03010 221AA007 ROHS;BOLT_HEX-SCT 3
343 90990-02J019 221CA026 SCREW,SET 2
344 90112-2AJ010 221AA321 BOLT,HEX.SOCKET HEAD 3
345 90112-2AJ016 221AA322 BOLT,HEX.SOCKET HEAD 1
346 90189-02J2A6 221FA003 NUT,HEXAGON 1
347 90171-02J2A6 221HA102 WASHER,PLAIN 3
348 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 2
349 91312-03012 221AA008 BOLT,HEX.SOCKET HEAD 4
352 90112-2AJ006 221AA145 BOLT,HEX.SOCKET HEAD 2
358 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 18
360 90990-38J004 221HA002 WASHER,SPRING 2
362 90990-01J115 221AB009 BOLT,HEX.SOCKET HEAD 2
370 KYB-M701J-00 1011D606 PCB-MOUNT 1
371 90990-11J013 221DA050 SCREW,PAN HEAD WW 2
381 KYB-M700M-00 0916DK3Q BALL_SCREW_NL 1
382 KYB-M700R-00 1001D309 SUPPORT_UNIT_NL 1
383 KYB-M700N-00 0916DK3S BEARING_NL 1
384 91312-03020 221AA011 BOLT,HEX.SOCKET HEAD 1
385 95302-03600 221FA005 NUT_HEX 1
391 KYB-M702H-00 0916DK3D BLOCK_NL_BEARING 1
392 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 1
393 95302-03600 221FA005 NUT_HEX 1
1402-001
– 13 –
HIGH SPEED HEAD(DDH V11)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
404
KYB-M701U-00
23D10016 ACCESSORY_SV 15
405 KYB-M703C-00 1011300J ASSY_TOP BLOCK 15
411 KYB-M700V-00 1006331V ASSY_NOZZLE_SHAFT 15
412 KYB-M704E-00 226A0279 SEAL 15
413 KYA-M700J-00 1006D30F ROTOR_LOWER 1
414 KYB-M702R-00 1001DK1L SPRING_COMP_NOZ 15
415 90112-02J004 221AA121 ROHS_HEX-SCT 15
418 KYA-M700N-00 0916DK2A MOTOR_AC-SERVO 1
420 KYA-M7017-00 1006D30J SENSOR_PELEC 1
421 KYB-M701R-00 216B1811 HOLDER 15
422 KYB-M704D-00 225B0572 AIR_CLEAN_EQPT 30
423 KYB-M702B-00 0916D338 SEAL 30
426 KYA-M7025-00 1006D307 BLOCK_LINE_SENS 1
427 KYA-M7024-00 1006D306 BRACKET_LN_SENS 1
428 KYB-M702A-00 0916D31G DISK 1
432 KYB-M7029-00 0916D31F DISK 1
440 90990-01J114 221AA330 ROHS_HEX-SCT 15
441 90112-02J004 221AA121 ROHS_HEX-SCT 3
450 91312-05016 221AA031 ROHS_HEX-SCT 4
451 92902-05200 221HA105 WASHER 4
453 90990-01J117 221AA332 ROHS_HEX-SCT 2
454 91317-03035 221AA206 BOLT,HEX.SOCKET HEAD 2
455 91317-03008 221AA202 BOLT,HEX.SOCKET HEAD 4
456 92907-03200 221HA290 WASHER,PLAIN 4
462 90990-01J115 221AB009 BOLT,HEX.SOCKET HEAD 8
471 KYA-M700-00 0916DK13 ROTOR_UPPER 1
473 KYB-M704G-00 226A0293 SEAL 2
481 KYB-M702F-00 0916DK2D HOLDER 15
482 KYB-M7028-00 0916D31E SEAL 45
483 KYB-M704E-00 226A0279 SEAL 15
484 KYB-M704F-00 226A0286 SEAL 15
1402-001
