ø 0,6 ø 0,8 3,2x1,5 ø 2,2 1,8x0,8 2,2x1  ø 1,7 2,2 x 1 1,2x0,7 2,2x1 4,8x1,5 Th e AP250 -A Sold er Fe ed Iro n works w ith C250 ca r trid ge ra nge. Fi nd the m ode l that be st su its you r soldering needs in ww w .j…

Regulating the Feeder Nozzle

Depending on the component you are soldering or the cartridge being used, you can either shor-

ten or lengthen the feeder nozzle by (a max) 10 mm.

1. Loosen the screw to change the length of the nozzle.

2. Adjust it to the required length and tighten the screw.

www.jbctools.com

ø 0,6

ø 0,8

3,2x1,5

ø 2,2

1,8x0,8

2,2x1



ø 1,7

2,2 x 1

1,2x0,7

2,2x1

4,8x1,5

The AP250-A Solder Feed Iron works with C250 cartridge range. Find the model that best suits your

soldering needs in www.jbctools.com

Compatible Cartridges

C250-401 C250-402 C250-403

C250-418C250-410 C250-405 C250-406

C250-409

C250-413C250-407 C250-411

Note: All the cartridges shown are actual size.

C250-408

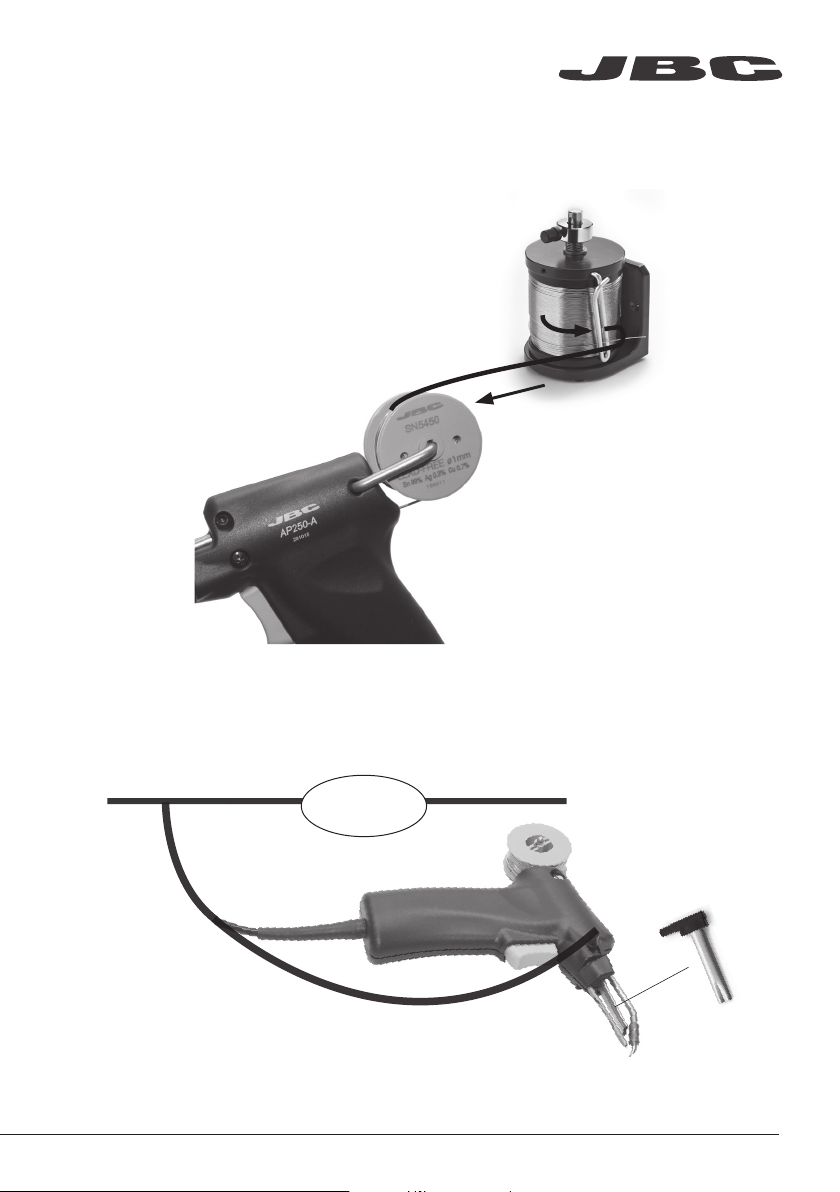

For production line work, we recommend

using our BE-SA Solder Reel Stand which can

hold up to 2.5 Kg of solder wire.

Simply wrap the solder wire twice around the

empty reel as shown.

Solder Reel Stand

Accessories

Solder Reel Stand

Ref. BE-SA

Solder Feed Iron

Ref. AP250-A

The fume extractor is an easy & safe solution to extract the fumes produced while soldering.

Fume Extractor

Ref. F1204

Suction pump

and ﬁlter
