9 Placement heads SIPLACE MultiStar (CPP M) SIPLACE MultiStar (CPP M) With component camera type 45 (Standard) with compo nent cam era type 30 (Optional) Component range a a) Please note that the placeable component rang…
8
Placement heads

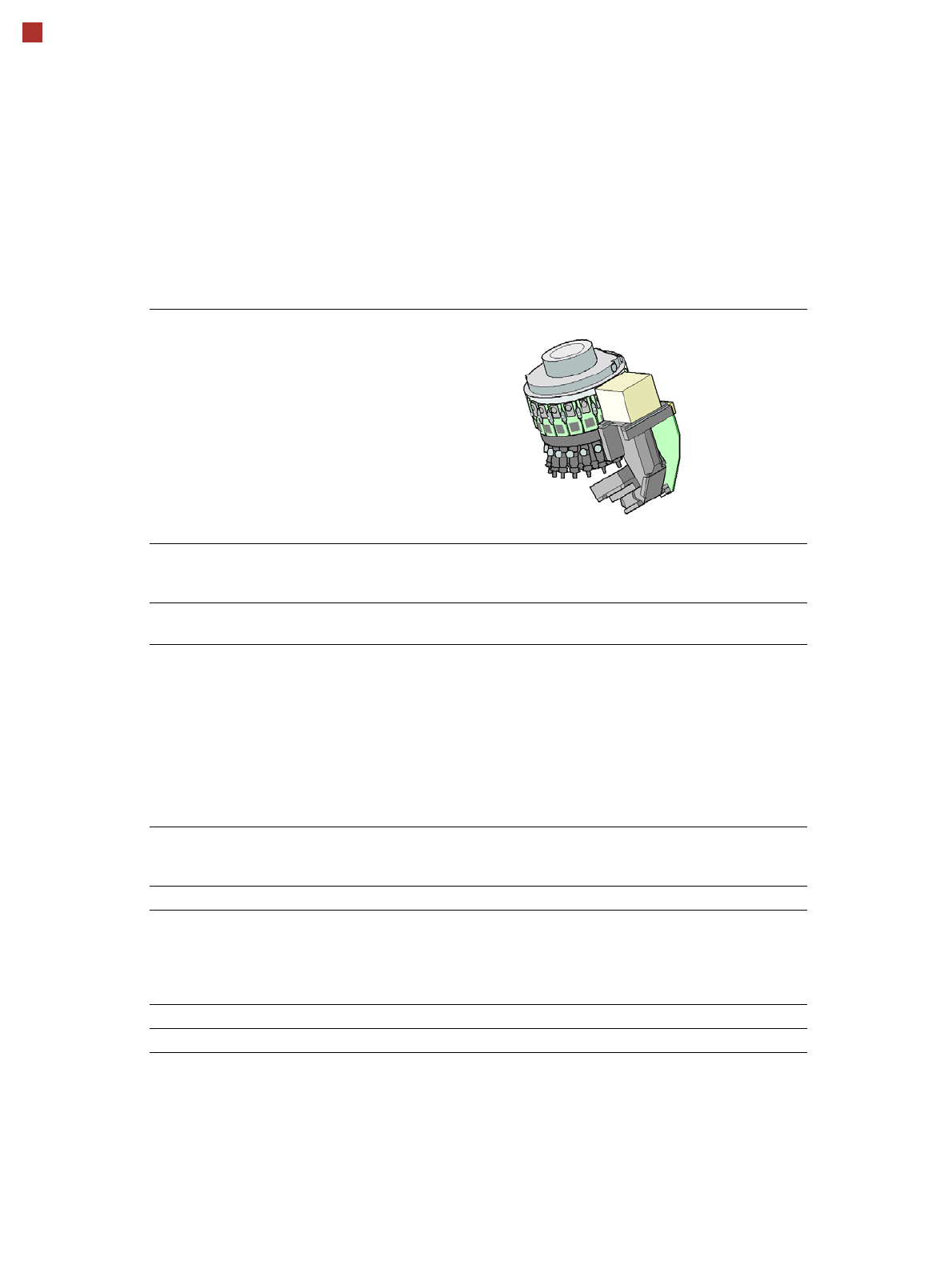

SIPLACE SpeedStar (C&P20 M3)
SIPLACE SpeedStar (C&P20 M3)
With component camera
type 48 (Standard)
With component
camera type 49
(Optional)
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-
specific standards, the component packaging tolerances and the component tolerances.
0.12 mm x 0.12 (0201 metric) to 2220, Melf, SOT, SOD, Bare-
Die, Flip-Chip
Component spec.
Max. height
Max. height
b
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
b) The maximum component height of 4 mm is only possible with the machine type
SIPLACE TX2i m 4 mm.
2 mm
4 mm
70 µm
30 µm
100 µm
50 µm
120 µm x 120 µm
8.2 mm x 8.2 mm
1 g
2 mm
c
4 mm
c
50 µm
25 µm
50 µm
25 µm
80 µm x 80 µm
8.2 mm x 8.2 mm
1 g
c) Due to the small focus area of ±0.3 mm, this camera is only recommended if its specific camera resolu-
tion is required for the components. The requirements for component camera type 49 are achieved in
the ±0.3mm range. The component camera type 49 achieves the performance rating of component cam-
era type 48 in the ±0.6mm range. The nozzle length must be adjusted in accordance with the focus area
and component thickness.
Set-down force 1.3 N ± 0.5 N (default value)
0.5 N to 4.5 N
Touchless Placement
Nozzle types 60xx 60xx
X/Y accuracy
d
Standard
With "accuracy class"
e
d) The benchmark and accuracy values are measured during the machine acceptance tests and corre-
spond to the conditions set out in the ASM scope of service and supply.
e) Setting the accuracy class in the SIPLACE Pro Component Shape Editor or Placement Position Editor.
15 µm only possible with PCBs up to a size of 250 mm x 100 mm.
± 25 µm/3
± 20 µm/3
± 15 µm/3
± 25 µm/3
± 20 µm/3
± 15 µm/3
Angular accuracy ± 0.25° / 3 ± 0.25° / 3
Illumination levels 5 5
9
Placement heads
SIPLACE MultiStar (CPP M)
SIPLACE MultiStar (CPP M)
With component camera type 45
(Standard)
with component camera
type 30
(Optional)
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-specific
standards, the component packaging tolerances and the component tolerances.
01005 to 15 mm x 15 mm 01005 to 27 mm x 27 mm
Component specifications
Max. height
b
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
b) CPP M head: in low installation position
6.0 mm
250 µm / 120 µm
c
50 µm
140 µm
70 µm
0.11 mm x 0.11 mm
15 mm x 15 mm
4 g
c) Only possible for components which are within the focal range of the camera of ± 1.3 mm.
6.0 mm
250 µm
100 µm
d
/ 200 µm
e
250 µm
e
/ 350 µm
f
140 µm
e
/ 200 µm
f
0.4 mm x 0.2 mm
27 mm x 27 mm
4 g
d) For components < 18 mm x 18 mm.
e) For components ≥ 18 mm x18 mm.
Programmable set-down force 1.0 - 15 N 1.0 - 15 N
Nozzle types 20xx, 28xx 20xx, 28xx
X/Y accuracy
f
With "accuracy class"
g
Without "accuracy class"
f) The benchmark and accuracy values are measured during the machine acceptance tests and correspond
to the conditions set out in the ASM scope of service and supply.
g) Setting the accuracy class in the SIPLACE Pro Component Shape Editor or Placement Position Editor.
± 20 µm/3
± 25 µm/3
± 20 µm/3
± 25 µm/3
Angular accuracy ± 0.18° / 3 ± 0.18° / 3
Illumination levels 5 5
Standard functions High-resolution camera, vacuum sensor, force measurement,
component sensor, integrated turning station per segment, PCB
warpage check, individual image of each component
10
Placement heads
Nozzle changer
Nozzle changer for the SIPLACE SpeedStar (C&P20 M3)
Nozzle changer for the SIPLACE MultiStar (CPP M)
4 magazines for 20 nozzles of
type 40xx/6xx
3 magazines for 20 nozzles of
type 6xx
1 magazine for 9 nozzles of
type 28xx
3 magazines for 20 nozzles of
type 20xx
Description
Nozzle changers increase the flexibility of the placement heads when it comes to processing
different components. The nozzle configuration can be rapidly adjusted to changing place-
ment jobs. Precisely defined positions and perfect nozzle seat in the garage ensure minimum
radial eccentricity on the placement head.
The nozzle changers feature a monitoring circuit.This checks whether the nozzle magazines
are seated correctly on the mount.
