- - REF.NO N OTE P ART N O D E S C R I P T I O N Qty 1 # 01 E5000 -7 25 - 0 A0 PACKAGE ACCE SSO RY ASM .(STA) 1 2 # 02 E5000 -7 25 - F A0 PACKAGE ACCESSO RY ASM . (STB) 1 3 E9690-715 -0 00 L AMP ( 1) 4 E5302-700 -0 A0 …
- -

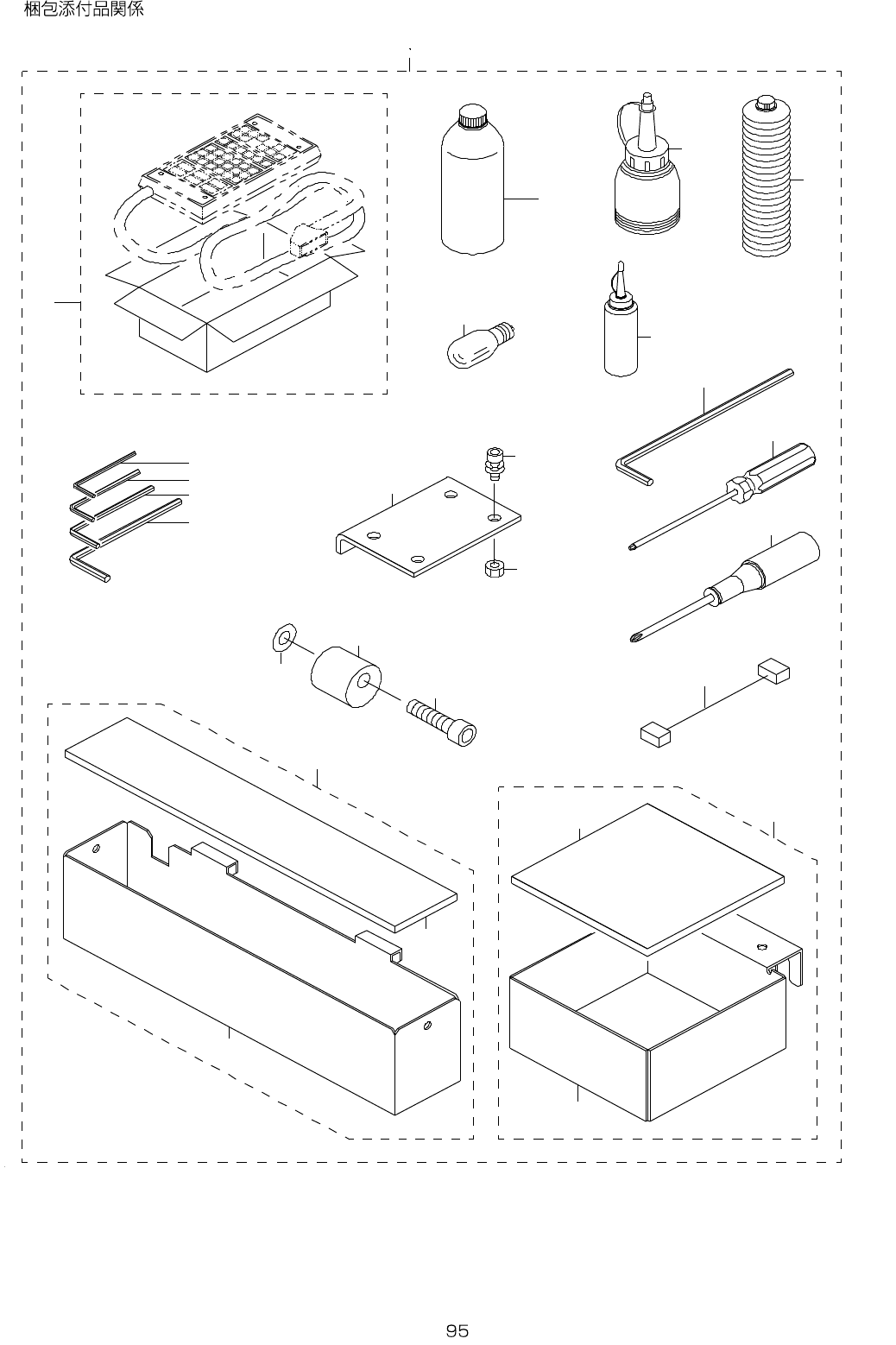

48.ACCESSORIES PART COMPONENTS
1 7
2 0
2 5
3
1 0
1 1
1 4
1 6
1 2
1 3
7
8
9
1 9
2 1
1 8
1 2
4
2 2
2 3
2 4
1 5
5
2 7
2 8
2 6
6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E5000-725-0A0 PACKAGE ACCESSORY ASM.(STA) 1
2
#02
E5000-725-FA0 PACKAGE ACCESSORY ASM.(STB) 1
3 E9690-715-000 LAMP (1)
4 E5302-700-0A0 HOD BOX PACKAGE ASM. (1)
5 WP-0641601-SC WASHER (2)
6 MDF-RX1001L0 DEFRIX OIL NO.1 800CC (1)
7 J1067-000-000 OILER (1)
8 B9121-220-0A0 OILER (CONTAINING NO.2 OIL) (1)
9 MGR-EAS400G0 GREASE (1)
10 J1066-000-00B HEXAGONAL WRENCH KEY (2MM) (1)
11 J1066-000-00C HEXAGONAL WRENCH KEY 2.5 (1)
12 J1066-000-00D HEXAGONAL WRENCH KEY (1)
13 J1066-000-00E HEXAGONAL BOWL WRENCH (1)
14 J1066-000-A0G HEXAGONAL LONG SPANNER (1)
15 J1080-000-000 BOLL SCREWDRIVER (1)
16 MAI-17002000 RECESSED HEAD DRIVER (NO.1) (1)
17 E5001-715-000 X AXIS STOPPER (1)
18 SL-6030842-TN SCREW M3 L=8 (2)
19 NM-6030001-SC NUT M3 (2)
20 E1348-700-000 SAFETY COVER STOPPER (2)
21 SM-6052502-TN HEXAGONAL-HOLE BOLT (2)
22 E9450-700-0A0 POWER SUPPLY CABLE ASM. (1)
23 E2801-725-0A0 CHIP BOX ASM. (2)
24 E2801-725-000 CHIP BOX (1)
25 E2802-721-000 CHIP CUSHION (1)
26
#02
E2803-725-0A0 CHIP BOX L ASM. (1)
27 E2803-725-000 CHIP BOX L (1)
28 E2804-725-000 CHIP CUSHION (1)
- -
49.POWER SUPPLY TRANSFORMER COMPONENTS (1-PHASE)
6
7
1 1
1 4
1 7
1 6
3
4
5
1
2
8
9
1 8
1 9
1 5
1 2
1 3
2 0
1 0
2 3
2 1
2 1
2 2
2 2
