- - 11.CAB LE COM P O N EN T S (4)(CE) 1 2 1 1 2 3 1 6 7 9 2 2 4 4 1 4 1 0 1 3 1 5 1 6 1 7 1 8 1 9 2 0 2 1 3 7 4 3 4 2 4 1 4 0 3 9 3 8 2 4 3 6 4 5 4 6 4 7
- -

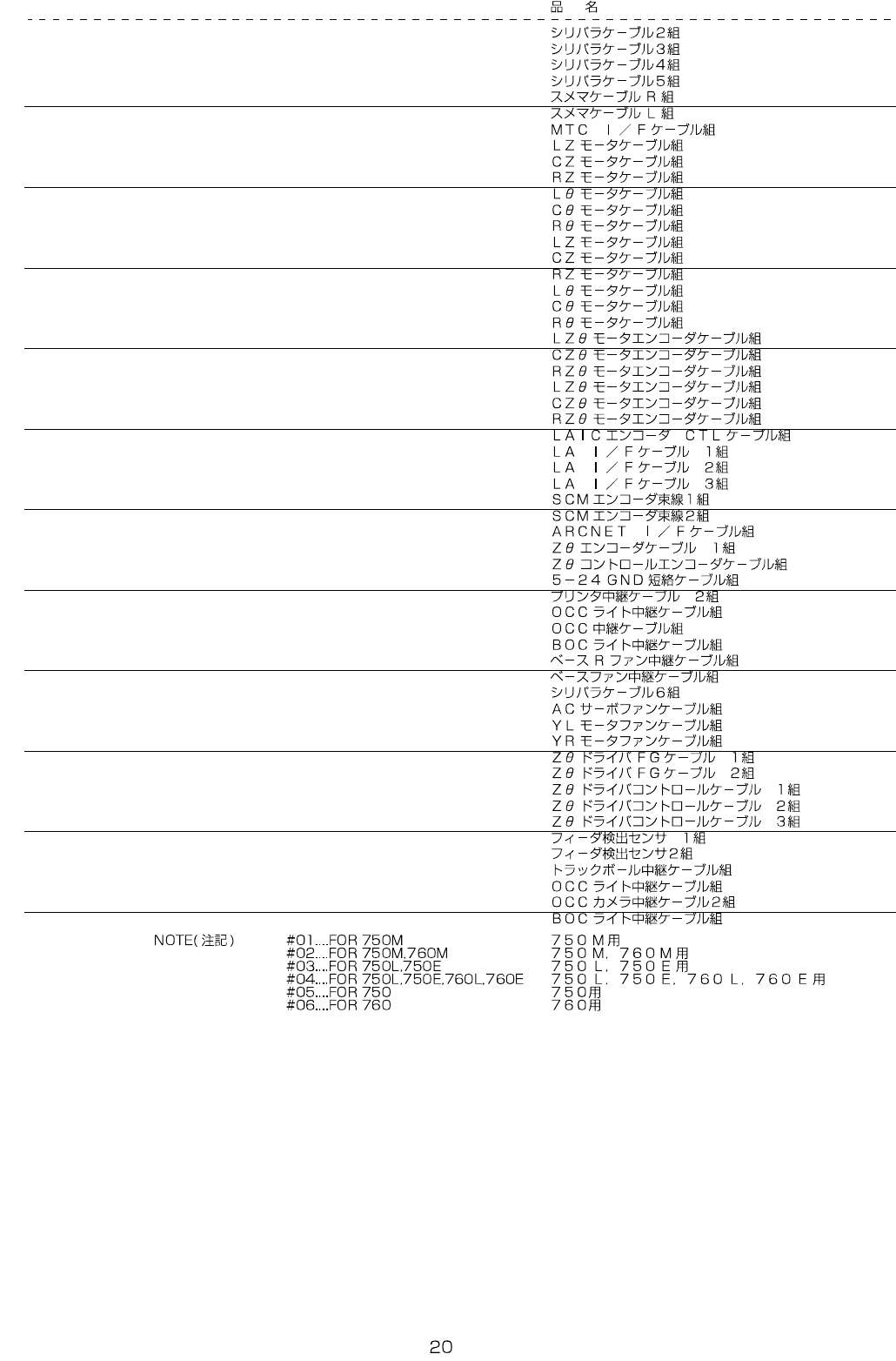

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9261-725-0A0 SERIAL PARALLEL CABLE 2 ASM. 1
2 E9262-725-0A0 SERIAL PARALLEL CABLE 3 ASM. 1
3 E9263-725-0A0 SERIAL PARALLEL CABLE 4 ASM. 1
4 E9264-725-0A0 SERIAL PARALLEL CABLE 5 ASM. 1
5 E9265-725-0A0 SMEMA CABLE R ASM. 1
6 E9266-725-0A0 SMEMA CABLE L ASM. 1
7 E9267-725-0A0 MTC I/F CABLE ASM. 1
8
#02
E9269-725-0A0 LZ MOTOR CABLE ASM. 1
9
#01
E9270-725-0A0 CZ MOTOR CABLE ASM. 1
10
#02
E9271-725-0A0 RZ MOTOR CABLE ASM. 1
11
#02
E9272-725-0A0 MOTOR CABLE ASM. 1
12
#01
E9273-725-0A0 MOTOR CABLE ASM. 1
13
#02
E9274-725-0A0 MOTOR CABLE ASM. 1
14
#04
E9269-725-AA0 LZ MOTOR CABLE ASM. 1
15
#03
E9270-725-AA0 CZ MOTOR CABLE ASM. 1
16
#04
E9271-725-AA0 RZ MOTOR CABLE ASM. 1
17
#04
E9272-725-AA0 MOTOR CABLE ASM. 1
18
#03
E9273-725-AA0 MOTOR CABLE ASM. 1
19
#04
E9274-725-AA0 MOTOR CABLE ASM. 1
20
#02
E9275-725-0A0 MOTOR ENCODER CABLE ASM. 1
21
#01
E9276-725-0A0 MOTOR ENCODER CABLE ASM. 1
22
#02
E9277-725-0A0 MOTOR ENCODER CABLE ASM. 1
23
#04
E9275-725-AA0 MOTOR ENCODER CABLE ASM. 1
24
#03
E9276-725-AA0 MOTOR ENCODER CABLE ASM. 1
25
#04
E9277-725-AA0 MOTOR ENCODER CABLE ASM. 1
26
#06
E9330-725-0A0 MOTOR ENCODER CABLE ASM. 1
27 E9281-725-0A0 LA I/F CABLE 1 ASM. 1
28 E9282-725-0A0 LA I/F CABLE 2 ASM. 1
29
#05
E9283-725-0A0 LA I/F CABLE 3 ASM. 1
30
#05
E9284-725-0A0 SCM ENCODER CABLE 1 ASM. 1
31
#06
E9285-725-0A0 SCM ENCODER CABLE 2 ASM. 1
32 E9286-725-0A0 ARCNET I/F CABLE ASM. 1
33 E9288-725-0A0 ENCODER CABLE 1 ASM. 1
34
#05
E9289-725-0A0 CONTROL ENCODER CABLE ASM. 1
35 E9290-721-0A0 5-24 GND SHORT CIRCUIT CABLE 1
36 E9436-725-0A0 PRINTER RELAY CABLE 2 ASM. 1
37
#02
E9451-725-0A0 OCC LIGHT RELAY CABLE ASM. 1
38
#02
E9452-721-0A0 OCC RELAY CABLE ASM. 1
39
#02
E9458-725-0A0 BOC LIGHT RELAY CABLE ASM. 1
40 E9246-725-0A0 BASE R FAN RELAY CABLE ASM. 1
41 E9247-725-0A0 BASE FAN RELAY CABLE ASM. 1
42 E9268-725-0A0 SERIAL PARALLEL CABLE 6 ASM. 1
43 E9248-725-0A0 AC SERVO FAN CABLE ASM. 1
44 E9249-725-0A0 YL MOTOR FAN CABLE ASM. 1
45 E9250-725-0A0 YR MOTOR FAN CABLE ASM. 1
46 E9296-725-0A0 DRIVER FG CABLE 1 ASM. 1
47
#05
E9297-725-0A0 DRIVER FG CABLE 2 ASM. 1
48 E9298-725-0A0 DRIVER CONTROL CABLE 1 ASM. 1
49 E9299-725-0A0 DRIVER CONTROL CABLE 2 ASM. 1
50
#05
E9301-725-0A0 DRIVER CONTROL CABLE 3 ASM. 1
51 E9389-725-0A0 FEEDER DETECT SENSOR 1 ASM. 1
52 E9390-725-0A0 FEEDER DETECT SENSOR 2 ASM. 1
53 E9580-725-0A0 TRACK BALL RELAY CABLE ASM. 1
54
#04
E9451-725-AA0 OCC LIGHT RELAY CABLE ASM. 1
55
#04
E9452-725-AA0 OCC RELAY CABLE ASM. 1
56
#04
E9458-725-AA0 BOC LIGHT RELAY CABLE ASM. 1
- -
11.CABLE COMPONENTS (4)(CE)
1 2
1 1
2 3
1 6
7 9
2 2 4 4
1 4
1 0
1 3
1 5 1 6
1 7
1 8 1 9
2 0 2 1
3 7 4 3
4 2
4 1
4 0
3 9
3 8
2 4 3 6
4 5
4 6
4 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9269-725-AA0 LZ MOTOR CABLE ASM. 1
2 E9270-725-AA0 CZ MOTOR CABLE ASM. 1
3 E9271-725-AA0 RZ MOTOR CABLE ASM. 1
4 E9272-725-AA0 MOTOR CABLE ASM. 1
5 E9273-725-AA0 MOTOR CABLE ASM. 1
6 E9274-725-AA0 MOTOR CABLE ASM. 1
7 E9275-725-AA0 MOTOR ENCODER CABLE ASM. 1
8
#01
E9276-725-AA0 MOTOR ENCODER CABLE ASM. 1
9 E9277-725-AA0 MOTOR ENCODER CABLE ASM. 1
10
#01
E9451-725-AA0 OCC LIGHT RELAY CABLE ASM. 1
11
#01
E9452-725-AA0 OCC RELAY CABLE ASM. 1
12
#01
E9458-725-AA0 BOC LIGHT RELAY CABLE ASM. 1
13
#01
E9296-725-AA0 DRIVER FG CABLE 1 ASM. 1
14
#01
E9297-725-AA0 DRIVER FG CABLE 2 ASM. 1
15 E9515-725-0A0 F OPEN SET SW RELAY CABLE ASM. 1
16 E9520-725-0A0 R OPEN SET SW RELAY CABLE ASM. 1
17 E9522-725-0A0 HOD RELAY CABLE 2 ASM. 1
18 E9524-725-0A0 SW RELAY CABLE ASM. 1
19 E9526-725-0A0 SW RELAY CABLE ASM. 1
20 E9527-725-0A0 OPERATION PANEL CABLE ASM. 1
21 E9528-725-0A0 OPERATION PANEL CABLE ASM. 1
22 E9549-725-0A0 SCM UNIT FG CABLE ASM. 1
23 E9632-715-G00 ZIPPER TUBE 0.9
24 E9535-725-0A0 PANEL COMPUTER FG CABLE ASM. 1
25 E9536-725-0A0 FDD BRACKET FG CABLE ASM. 1
26 E9537-725-0A0 COVER RUR FG CABLE ASM. 1
27 E9538-725-0A0 COVER RBR FG CABLE ASM. 1
28 E9539-725-0A0 COVER RBL FG CABLE ASM. 1
29 E9540-725-0A0 LSMEMA FG CABLE ASM. 1
30 E9541-725-0A0 COVER RUL FG CABLE ASM. 1
31 E9542-725-0A0 COVER SBL FG CABLE ASM. 1
32 E9543-725-0A0 COVER RBC FG CABLE ASM. 1
33 E9544-725-0A0 COVER FUR FG CABLE ASM. 1
34 E9545-725-0A0 COVER FBC FG CABLE ASM. 1
35 E9546-725-0A0 COVER SBR FG CABLE ASM. 1
36 E9547-725-0A0 RSMEMA FG CABLE ASM. 1
37 HN-0014900-00 CLAMP FILTER(L) 6
38 HK-0233902-50 GARBAGE CAP 1
39 HK-0528905-0B GARBAGE COVER 1
40 HK-0429901-4A CAP 2
41 SL-4040691-SC SCREW M4 L=6 14
42 WT-0430002-KN WASHER M4 18
43 HN-0017900-0D FERRITE CLAMP 2
44 E9548-725-0A0 CTL UNIT FG CABLE ASM. 1
45 HK-0616901-60 GARBAGE CAP 1
46
#02
E9436-725-0A0 PRINTER RELAY CABLE 2 ASM. 1
47
#02
E9593-725-0A0 BGA,CSP TRUNK CABLE ASM. 1
