- - 12.S AF E TY CIRCUIT UNIT (CE) T22 T21 T20 T19 T18 T17 T16 T15 T14 T13 T12 T11 T10 T9 T8 T7 T6 T5 T4 T3 T2 T1 K 1 4 K 1 3 K 1 2 K 1 1 K 1 0 K 9 K 8 K 7 K 6 K 5 K 4 K 3 K 2 K 1 S R 3 4 5 6 1 3 7 8 1 0 2 1 1 1 1 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9269-725-AA0 LZ MOTOR CABLE ASM. 1
2 E9270-725-AA0 CZ MOTOR CABLE ASM. 1
3 E9271-725-AA0 RZ MOTOR CABLE ASM. 1
4 E9272-725-AA0 MOTOR CABLE ASM. 1
5 E9273-725-AA0 MOTOR CABLE ASM. 1
6 E9274-725-AA0 MOTOR CABLE ASM. 1
7 E9275-725-AA0 MOTOR ENCODER CABLE ASM. 1
8
#01
E9276-725-AA0 MOTOR ENCODER CABLE ASM. 1
9 E9277-725-AA0 MOTOR ENCODER CABLE ASM. 1
10
#01
E9451-725-AA0 OCC LIGHT RELAY CABLE ASM. 1
11
#01
E9452-725-AA0 OCC RELAY CABLE ASM. 1
12
#01
E9458-725-AA0 BOC LIGHT RELAY CABLE ASM. 1
13
#01
E9296-725-AA0 DRIVER FG CABLE 1 ASM. 1
14
#01
E9297-725-AA0 DRIVER FG CABLE 2 ASM. 1
15 E9515-725-0A0 F OPEN SET SW RELAY CABLE ASM. 1
16 E9520-725-0A0 R OPEN SET SW RELAY CABLE ASM. 1
17 E9522-725-0A0 HOD RELAY CABLE 2 ASM. 1
18 E9524-725-0A0 SW RELAY CABLE ASM. 1
19 E9526-725-0A0 SW RELAY CABLE ASM. 1
20 E9527-725-0A0 OPERATION PANEL CABLE ASM. 1
21 E9528-725-0A0 OPERATION PANEL CABLE ASM. 1
22 E9549-725-0A0 SCM UNIT FG CABLE ASM. 1
23 E9632-715-G00 ZIPPER TUBE 0.9
24 E9535-725-0A0 PANEL COMPUTER FG CABLE ASM. 1
25 E9536-725-0A0 FDD BRACKET FG CABLE ASM. 1
26 E9537-725-0A0 COVER RUR FG CABLE ASM. 1
27 E9538-725-0A0 COVER RBR FG CABLE ASM. 1
28 E9539-725-0A0 COVER RBL FG CABLE ASM. 1
29 E9540-725-0A0 LSMEMA FG CABLE ASM. 1
30 E9541-725-0A0 COVER RUL FG CABLE ASM. 1
31 E9542-725-0A0 COVER SBL FG CABLE ASM. 1
32 E9543-725-0A0 COVER RBC FG CABLE ASM. 1
33 E9544-725-0A0 COVER FUR FG CABLE ASM. 1
34 E9545-725-0A0 COVER FBC FG CABLE ASM. 1
35 E9546-725-0A0 COVER SBR FG CABLE ASM. 1
36 E9547-725-0A0 RSMEMA FG CABLE ASM. 1
37 HN-0014900-00 CLAMP FILTER(L) 6
38 HK-0233902-50 GARBAGE CAP 1
39 HK-0528905-0B GARBAGE COVER 1
40 HK-0429901-4A CAP 2
41 SL-4040691-SC SCREW M4 L=6 14
42 WT-0430002-KN WASHER M4 18
43 HN-0017900-0D FERRITE CLAMP 2
44 E9548-725-0A0 CTL UNIT FG CABLE ASM. 1
45 HK-0616901-60 GARBAGE CAP 1
46
#02
E9436-725-0A0 PRINTER RELAY CABLE 2 ASM. 1
47
#02
E9593-725-0A0 BGA,CSP TRUNK CABLE ASM. 1
- -
12.SAFETY CIRCUIT UNIT (CE)
T22
T21
T20
T19
T18
T17
T16
T15
T14
T13
T12
T11
T10
T9
T8
T7
T6
T5
T4
T3
T2
T1
K 1 4
K 1 3
K 1 2
K 1 1
K 1 0
K 9
K 8
K 7 K6 K5 K4 K3 K2 K1 SR
3
4 5
6 1 3
7
8 1 0
2
1
1 1
1 2
- -

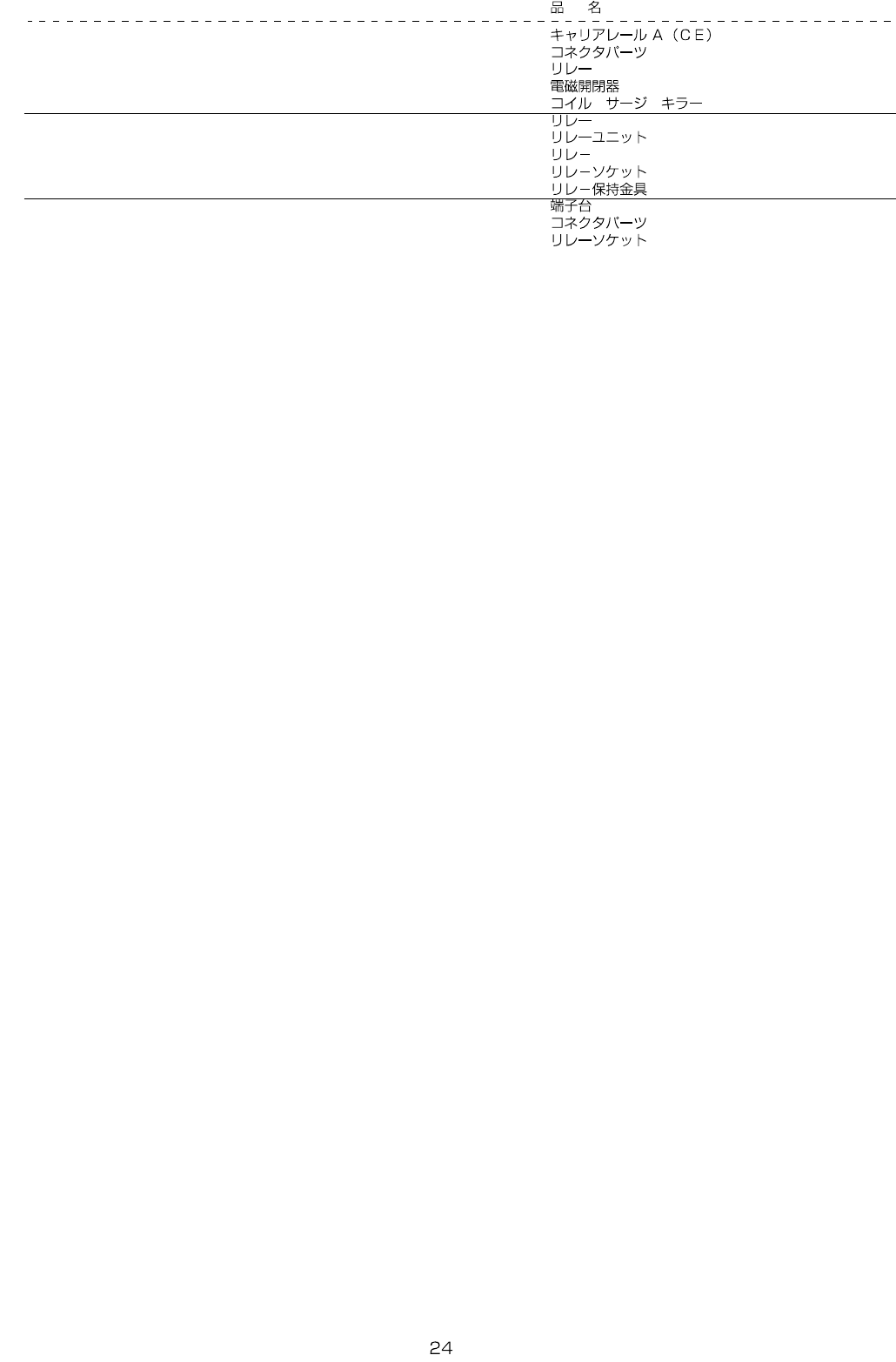

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1127-725-000 CARRIER RAIL A (CE) 1
2 HK-0498900-0D CONNECTOR PARTS 2
3 HB-0011400-00 RELAY 1
4 HA-0042800-00 ELECTROMAGNETIC SWITCH 5
5 HA-0041100-01 COIL SURGE KILLER 5
6 HB-0012400-00 RELAY 2
7 E9630-755-000 RERAY UNIT 6
8 HB-0001000-00 RELAY 1
9 HB-0002100-20 RELAY SOCKET 1
10 HB-0002100-10 RELAY HOLOER PYC-A1 2
11 HK-0498500-10 TERMINAL BASE 22
12 HK-0498900-00 CONECTOR PARTS 1
13 HB-0012400-10 RELAY SOCKET 2
