- - 23.HOD B OX COMPONENTS 2 1
- -

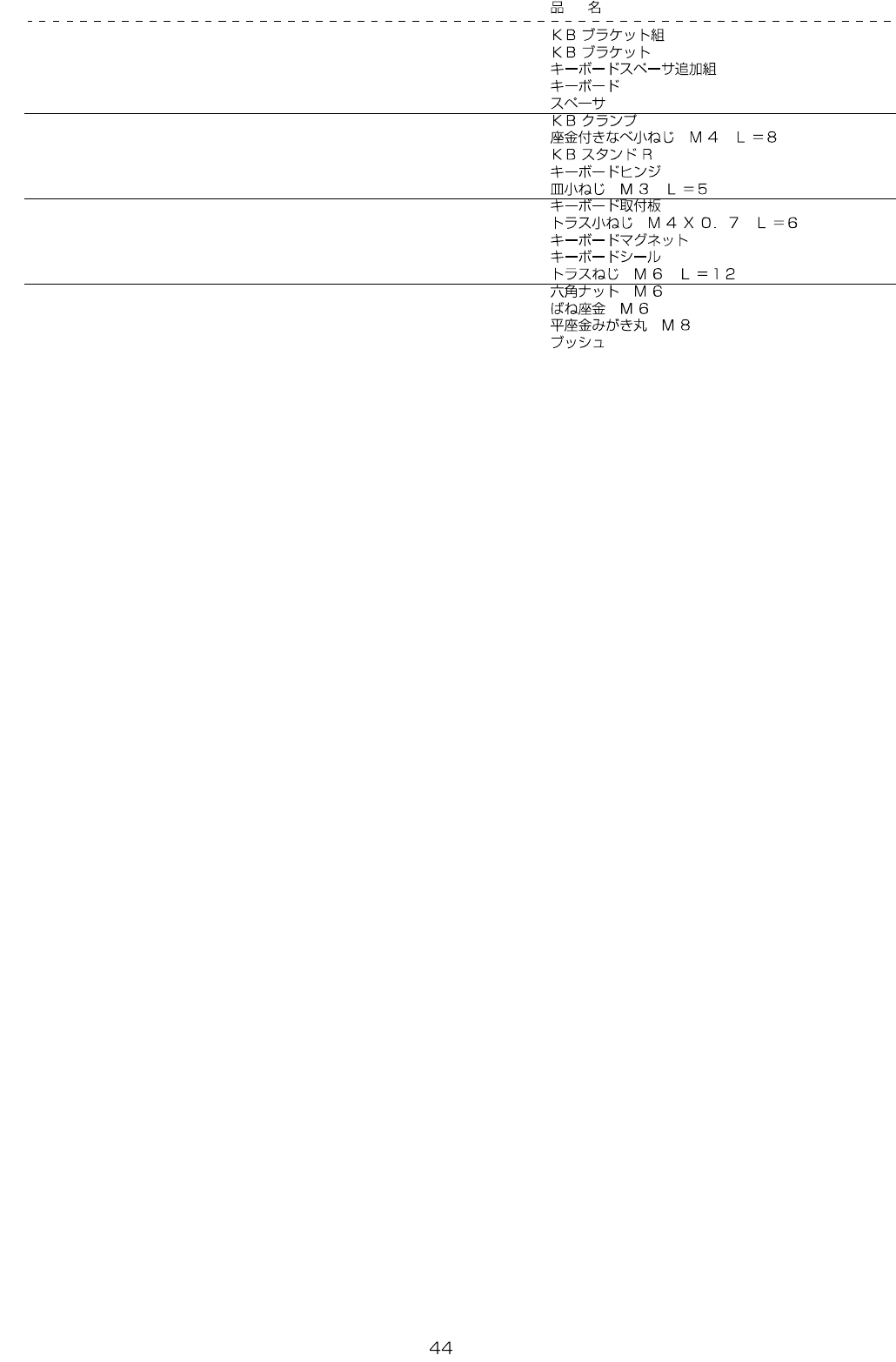

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1341-721-0A0 KB BRACKET ASM. 1
2 400-12514 KB BRACKET (1)
3 400-03318 KEY BOARD SP ASM (1)
4 400-03284 KEY BOARD (1)
5 HX-0033500-0G SPACER (2)
6 400-01440 KB CLAMP (1)
7 SL-4040891-SC SCREW M4 L=8 (2)
8 E1347-721-000 KB STAND R (1)
9 E1349-721-000 KEYBOARD HINGE (3)
10 SM-1030501-SC SCREW M3 L=5 (12)
11 E1344-721-000 KEYBOARD MOUNTING PLATE (2)
12 SM-0040601-SC SCREW M4X0.7 L=6 (4)
13 E1346-721-000 KEYBOARD MAGNET (2)
14 400-12382 KEYBOARD SEAL (1)
15 SM-0061201-SC SCREW 2
16 NM-6060003-SC NUT M6 2
17 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 2
18 WP-0841601-SC WASHER 8.4X17.4X1.6 2
19 HX-0005500-0N RUBBER BUSHING 1
- -
23.HOD BOX COMPONENTS
2
1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1700-721-000 HOD BOX ASM. 1
2
#01
E1700-721-A00 HOD ASM. 1
