- - 46.O C C COMP O NE N TS 4 5 3 6 7 1 4 9 1 0 1 3 8 1 5 1 6 1 7 1 8 1 9 4 5 2 9 3 1 3 2 3 6 3 7 3 8 3 9 4 0 4 1 4 4 2 1 4 6 2 3 2 5 2 6 2 7 2 8 4 9 5 0 5 1 4 3 3 3 3 5 3 4 5 4 5 3 5 2 2 2 2 4 8 1 3 0 2 4 2 0 5 5 4 7 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E3600-725-0A0 CAL BLOCK ASM.(STA) 1
2
#02
E3600-725-FA0 CAL BLOCK ASM.(STB) 1
3 E3601-725-0A0 CAL BLOCK UNIT ASM. (1)
4 E2061-760-000 SHIM A (1)
5 E2062-760-000 SHIM B (1)
6 E2063-760-000 SHIM C (1)
7 SL-6062092-TN SCREW M6 L=20 (2)
8 E3603-721-000 CAL PLATE (1)
9 SM-6042002-TN BOLT (2)
10 WS-0410002-KN SPRING WASHER (2)
11 WP-0430800-SC WASHER M4 (2)
12 PJ-3010405-06 STRAIGHT (1)
13 BT-0400251-EB URETHANE HOSE, BLACK (0.1)
14 E7916-725-0A0 FILTER (1)
15 SL-4040891-SC SCREW M4 L=8 (2)
16 E3604-721-000 CAL SIDE COVER (1)
17 SL-4030681-SC SCREW M3 L=6 (4)
18 E3605-721-000 CAL DIFFUSER (1)
19 SL-4030891-SC SCREW M3X8 (2)
20 E8609-721-0A0 CAL BLOCK CIRCUIT BOARD ASM. (1)
21 SL-4030681-SC SCREW M3 L=6 (4)
22 E9366-725-0A0 CAL LIGHT ON CABLE ASM. (1)
23 E3066-700-000 EJECTOR (1)
24 SL-4031681-SC SCREW M3 X 16 (2)
25 E9367-725-0A0 CAL VACUUM ON CABLE ASM. (1)
26 SL-4030881-SC SCREW M3X8 (2)
27 PJ-3040405-05 ELBOW (1)
28 PJ-3040651-01 ELBOW UNION 6XPT1/8 (1)
29 PX-0580010-00 SILENCER (1)
30 E3621-721-0A0 CAL PIECE ASM. (730) (1)
31 E3622-721-000 CAL PIECE A (1)
32 E3602-721-000 CAL STAND (1)
- -
46.OCC COMPONENTS
4
5
3
6
7
1 4
9
1 0 1 3
8
1 5 1 6
1 7
1 8
1 9
4 5
2 9
3 1
3 2
3 6
3 7
3 8
3 9
4 0
4 1
4 4
2 1
4 6
2 3
2 5
2 6
2 7
2 8
4 9
5 0
5 1
4 3
3 3
3 5
3 4
5 4
5 3
5 2
2
2 2
4 8
1
3 0
2 4
2 0
5 5
4 7
4 2
- -

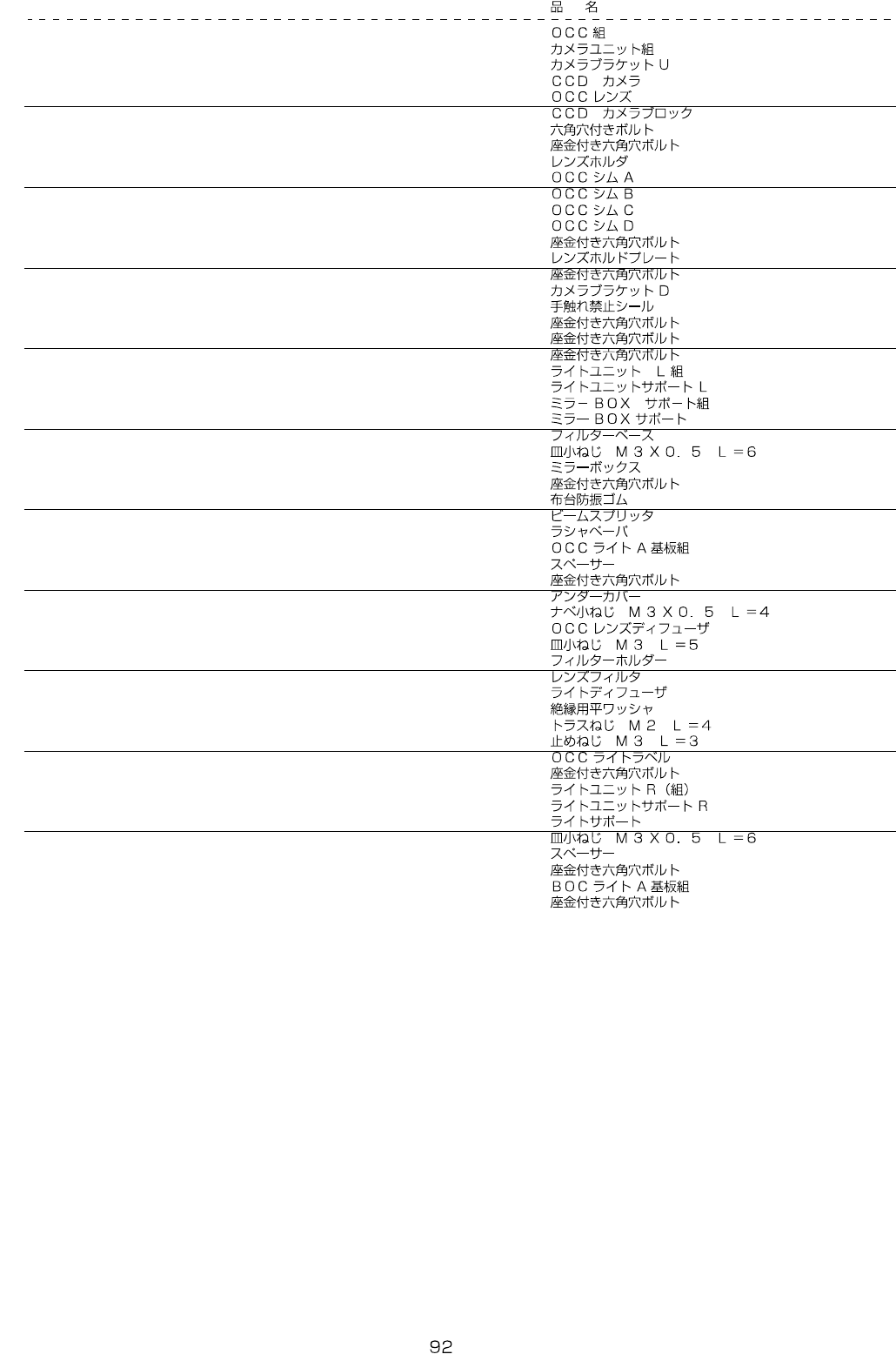

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3800-725-0A0 OCC ASM. 1
2 E3801-725-0A0 CAMERA UNIT ASM. (2)
3 E3802-725-000 CAMERA BRACKET U (1)
4 400-10386 CCD CAMERA (1)
5 E9618-721-000 OCC LENS (1)
6 E3853-715-000 CCD CAMERA BLOCK (1)
7 SM-6020752-TP SCREW (4)
8 SL-6041092-TN SCREW (4)
9 E3803-721-000 LENS HOLDER (1)
10 E3804-721-000 OCC SHIM A (1)
11 E3805-721-000 OCC SHIM B (1)
12 E3806-721-000 OCC SHIM C (1)
13 E3807-721-000 OCC SHIM D (1)
14 SL-6041092-TN SCREW (2)
15 E3808-721-000 LENS HOLD PLATE (1)
16 SL-6030692-TN BOLT (2)
17 E3809-725-000 CAMERA BRACKET D (1)
18 E3858-715-000 SEAL (1)
19 SL-6030692-TN BOLT (2)
20 SL-6030892-TN SCREW (2)
21 SL-6040892-TN BOLT (8)
22 E3811-725-0A0 LIGHT UNIT L ASM. (1)
23 E3812-725-000 LIGHT UNIT SUPPORT L (1)
24 E3813-725-0A0 MIRROR BOX SUPPORT ASM. (1)
25 E3852-725-000 MIRROR BOX SUPPORT (1)
26 E3860-725-000 FILTER BASE (1)
27 SM-1030601-SC SCREW M3 L=6 (4)
28 400-50604 MIRROR BOX (1)
29 SL-6030592-TN SCREW M3 L=5 (4)
30 118-04606 RUBBER PLUG (14)
31 E3855-721-000 BEAM SPLITTER (1)
32 E3856-721-000 A CLOTHES PAPER (1)
33 E8612-725-0A0 OCC LIGHT CIRCUIT BOARD A ASM. (1)
34 HX-0033500-0D SPACER (4)
35 SL-6031292-TN BOLT (4)
36 E3857-725-000 UNDER COVER (1)
37 SM-4030401-SC SCREW M3X0.5 L=4 (2)
38 E3858-725-000 OCC LENS DIFFEUSER (1)
39 SM-1030501-SC SCREW M3 L=5 (2)
40 E3862-721-000 FILTER HOLDER (1)
41 400-50606 LENS FILTER (1)
42 400-50605 LIGHT DIFFUSER (1)
43 HX-0028800-00 FLAT WASHER FOR INSULATION (4)
44 SM-0020401-SC SCREW M2 L=4 (4)
45 SM-8030312-TP SCREW M3 L=3 (1)
46 E3864-721-000 OCC LIGHT LABEL (1)
47 SL-6041092-TN SCREW (2)
48 E3821-725-0A0 LIGHT UNIT R ASM. (1)
49 E3822-725-000 LIGHT UNIT SUPPORT R (1)
50 E3823-725-000 LIGHT UNIT SUPPORT (1)
51 SM-1030601-SC SCREW M3 L=6 (4)
52 HX-0033500-0E SPACER (4)
53 SL-6031492-TN SCREW (4)
54 E8624-715-AA0 BOC LIGHT A CIRCUIT BOARD ASM. (1)
55 SL-6041092-TN SCREW (2)
