- - 14.COV E R COMPONENTS ( 2) (L) 1 7 1 9 2 1 2 3 2 7 3 1 2 4 2 0 1 2 2 5 2 7 2 6 2 2 1 2 2 5 1 2 1 2 1 1 1 2 1 2 1 1 1 2 1 8 1 2 1 1 1 1 1 2 2 8 2 8 1 5 1 2 1 6 1 5 1 1 1 1 1 1 1 1 1 1 1 6 1 5 1 6 1 6 1 5 B B C C 2 6…
- -

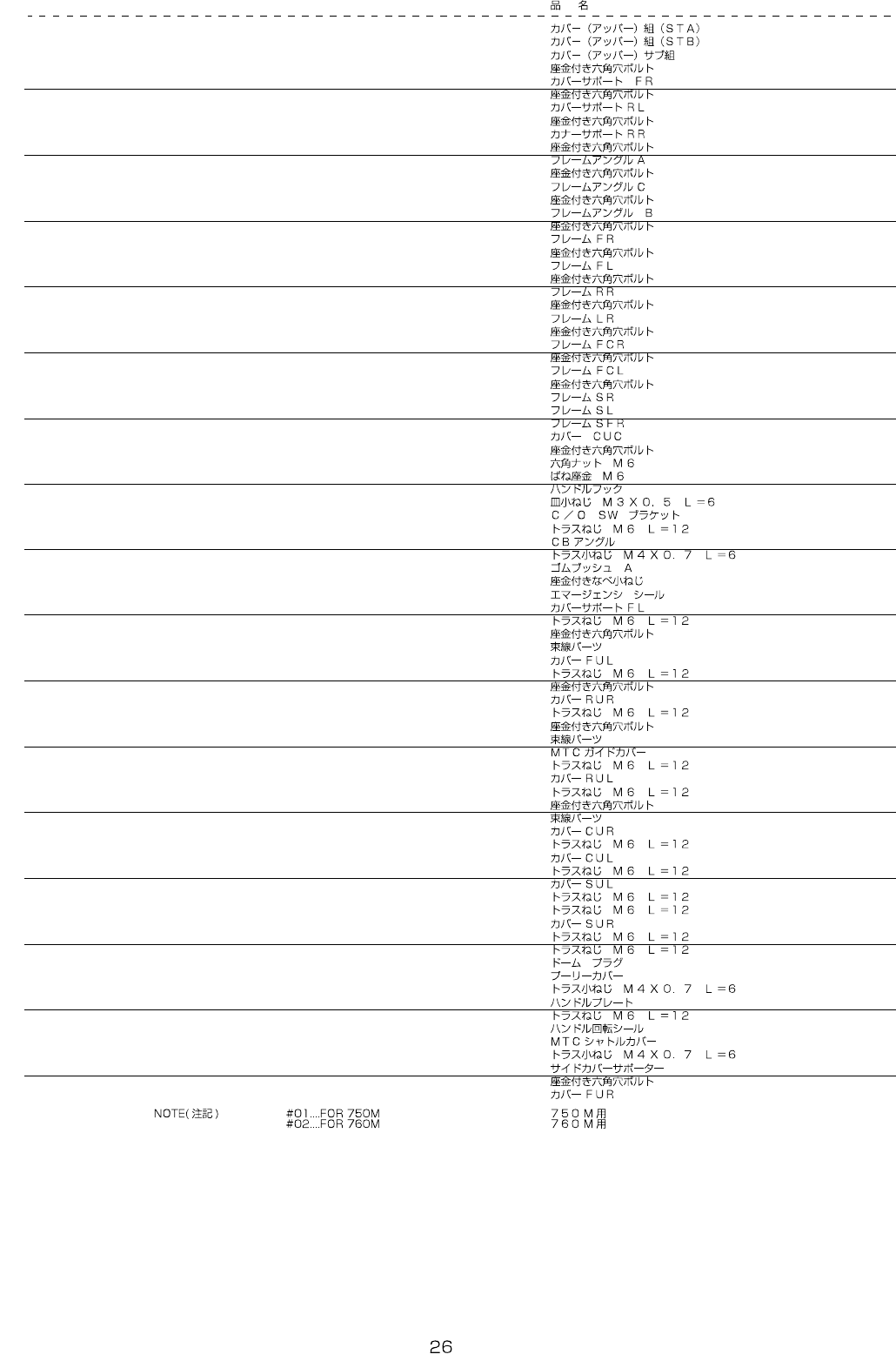

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E1330-725-0A0 COVER (UPPER) ASM.(STA) 1
2 #02 E1330-725-FA0 COVER (UPPER) ASM.(STB) 1
3 E1330-725-0B0 COVER (UPPER) SUB ASM. (1)
4 SL-6051092-TN SCREW (2)
5 E1312-725-000 COVER SUPPORT FR (1)
6 SL-6051092-TN SCREW (2)
7 E1313-725-000 COVER SUPPORT RL (1)
8 SL-6051092-TN SCREW (2)
9 E1314-725-000 COVER SUPPORT RR (1)
10 SL-6051092-TN SCREW (2)
11 E1317-725-000 FRAME ANGLE A (11)
12 SL-6051092-TN SCREW (22)
13 E1318-725-000 FRAME ANGLE C (2)
14 SL-6051092-TN SCREW (4)
15 E1369-715-000 FRAME ANGLE B (4)
16 SL-6061092-TN SCREW (8)
17 E1320-725-000 FRAME FR (1)
18 SL-6061292-TN SCREW (1)
19 E1321-725-000 FRAME FL (1)
20 SL-6061292-TN SCREW (1)
21 E1322-725-000 FRAME RR (1)
22 SL-6061292-TN SCREW (1)
23 E1323-725-000 FRAME LR (1)
24 SL-6061292-TN SCREW (1)
25 E1324-725-000 FRAME FCR (2)
26 SL-6061292-TN SCREW (1)
27 E1325-725-000 FRAME FCL (2)
28 SL-6061292-TN SCREW (1)
29 E1326-725-000 FRAME SR (1)
30 E1327-725-000 FRAME SL (1)
31 E1328-725-000 FRAME SFR (1)
32 E1309-725-000 COVER CUC (1)
33 SL-6061292-TN SCREW (2)
34 NM-6060003-SC NUT M6 (2)
35 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (2)
36 E1338-700-000 HANDLE HOOK (1)
37 SM-1030601-SC SCREW M3 L=6 (2)
38 E1319-715-000 C/O SW BRACKET (2)
39 SM-0061201-SC SCREW (4)
40 E1343-725-000 CB ANGLE (1)
41 SM-0040601-SC SCREW M4X0.7 L=6 (4)
42 HX-0005500-0A RUBBER BUSHING A (1)
43 SL-4031491-SC SCREW M3X14 (4)
44 E1326-715-000 EMERGENCY SEAL (2)
45 E1311-725-000 COVER SUPPORT FL (1)
46 SM-0061201-SC SCREW (4)
47 SL-6051092-TN SCREW (1)
48 HX-0032600-0H CABLE PARTS (1)
49 E1331-725-000 COVER FUL (1)
50 SM-0061201-SC SCREW (4)
51 SL-6051092-TN SCREW (1)
52 E1332-725-000 COVER RUR (1)
53 SM-0061201-SC SCREW (4)
54 SL-6051092-TN SCREW (1)
55 HX-0032600-0H CABLE PARTS (2)
56 E1337-725-000 MTC GUIDE COVER (1)
57 SM-0061201-SC SCREW (5)
58 E1333-725-000-A COVER RUL (1)
59 SM-0061201-SC SCREW (4)
60 SL-6051092-TN SCREW (1)
61 HX-0032600-0H CABLE PARTS (1)
62 E1334-725-000 COVER CUR (1)
63 SM-0061201-SC SCREW (4)
64 E1335-725-000 COVER CUL (1)
65 SM-0061201-SC SCREW (4)
66 E1302-725-000 COVER SUL (1)
67
#01
SM-0061201-SC SCREW (9)
68 #02 SM-0061201-SC SCREW (8)
69 E1303-725-000 COVER SUR (1)
70
#01
SM-0061201-SC SCREW (9)
71
#02
SM-0061201-SC SCREW (8)
72 HX-0032600-0M DOME PLUG (2)
73 E1315-725-000 PULLEY COVER (2)
74 SM-0040601-SC SCREW M4X0.7 L=6 (8)
75 E1316-725-000 HANDLE PLATE (1)
76 SM-0061201-SC SCREW (2)
77 E5704-700-000 SEAL (1)
78 E1336-725-000 MTC SHUTTLE COVER (1)
79 SM-0040601-SC SCREW M4X0.7 L=6 (4)
80 E1357-725-000 SIDE COVER SUPPORT (2)
81 SL-6061292-TN SCREW (2)
82 E1330-725-000 COVER FUR (1)
- -
14.COVER COMPONENTS (2)(L)
1 7
1 9
2 1
2 3
2 7
3 1
2 4
2 0
1 2
2 5
2 7
2 6
2 2
1 2
2 5
1 2
1 2
1 1
1 2
1 2
1 1
1 2
1 8
1 2
1 1
1 1
1 2
2 8
2 8
1 5
1 2
1 6
1 5
1 1
1 1
1 1
1 1
1 1
1 6
1 5
1 6
1 6
1 5
B
B
C
C
2 6
1 3
1 4
1 3
1 4
2 9
3 0
6
4
7
1 0
9
8
5
4 5
3 2
3 4
4 0
4 1
5 2
5 8
6 4
6 6
6 8
7 5
7 7
7 6
4 1
5 9
5 0
6 9
3 7
3 6
4 2
3 8
3 8
3 9
6 7
5 3
5 6
5 7
4 4
5 5
6 1
4 8
4 6
7 1
7 2
3 5
A
A
7 3
4 9
8 4
6 2
1 2
5 4
5 1
4 7
6 0
7 0
4 3
4 3
7 9
7 4
3 3
7 8
7 8
6 9
7 9
3 9
3
6 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E1330-725-DA0 COVER(UPPER) ASM.(STA) 1
2 #02 E1330-725-GA0 COVER(UPPER) ASM.(STB) 1
3 E1330-725-AB0 COVER(UPPER) SUB ASM. (1)
4 SL-6051092-TN SCREW (2)
5 E1312-725-000 COVER SUPPORT FR (1)
6 SL-6051092-TN SCREW (2)
7 E1313-725-000 COVER SUPPORT RL (1)
8 SL-6051092-TN SCREW (2)
9 E1314-725-000 COVER SUPPORT RR (1)
10 SL-6051092-TN SCREW (2)
11 E1317-725-000 FRAME ANGLE A (11)
12 SL-6051092-TN SCREW (22)
13 E1318-725-000 FRAME ANGLE C (2)
14 SL-6051092-TN SCREW (4)
15 E1369-715-000 FRAME ANGLE B (4)
16 SL-6061092-TN SCREW (8)
17 E1320-725-000 FRAME FR (1)
18 SL-6061092-TN SCREW (1)
19 E1321-725-000 FRAME FL (1)
20 SL-6061092-TN SCREW (1)
21 E1322-725-000 FRAME RR (1)
22 SL-6061092-TN SCREW (1)
23 E1323-725-000 FRAME LR (1)
24 SL-6061092-TN SCREW (1)
25 E1324-725-000 FRAME FCR (2)
26 SL-6061092-TN SCREW (1)
27 E1325-725-000 FRAME FCL (2)
28 SL-6061092-TN SCREW (1)
29 E1426-725-000 FRAME SR (1)
30 E1427-725-000 FRAME SL (1)
31 E1328-725-000 FRAME SFR (1)
32 E1409-725-000 COVER CUC (1)
33 SL-6061292-TN SCREW (2)
34 NM-6060003-SC NUT M6 (2)
35 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (2)
36 E1338-700-000 HANDLE HOOK (1)
37 SM-1030601-SC SCREW M3 L=6 (2)
38 E1319-715-000 C/O SW BRACKET (2)
39 SM-0061201-SC SCREW (4)
40 E1343-725-000 CB ANGLE (1)
41 SM-0040601-SC SCREW M4X0.7 L=6 (4)
42 HX-0005500-0A RUBBER BUSHING A (1)
43 SL-4031491-SC SCREW M3X14 (4)
44 E1326-715-000 EMERGENCY SEAL (2)
45 E1311-725-000 COVER SUPPORT FL (1)
46 SM-0061201-SC SCREW (4)
47 SL-6051092-TN SCREW (1)
48 HX-0032600-0H CABLE PARTS (1)
49 E1331-725-000 COVER FUL (1)
50 SM-0061201-SC SCREW (4)
51 SL-6051092-TN SCREW (1)
52 E1332-725-000-A COVER RUR (1)
53 SM-0061201-SC SCREW (4)
54 SL-6051092-TN SCREW (1)
55 HX-0032600-0H CABLE PARTS (2)
56 E1337-725-000 MTC GUIDE COVER (1)
57 SM-0061201-SC SCREW (5)
58 E1333-725-000-A COVER RUL (1)
59 SM-0061201-SC SCREW (4)
60 SL-6051092-TN SCREW (1)
61 HX-0032600-0H CABLE PARTS (1)
62 E1434-725-000 COVER CUR (1)
63 SM-0061201-SC SCREW (4)
64 E1435-725-000 COVER CUL (1)
65 SM-0061201-SC SCREW (4)
66 E1402-725-000 COVER SUL (1)
67 SM-0061201-SC SCREW (9)
68 E1403-725-000 COVER SUR (1)
69 SM-0061201-SC SCREW (9)
70 HX-0032600-0M DOME PLUG (2)
71 E1315-725-000 PULLEY COVER (2)
72 SM-0040801-SC SCREW (8)
73 E1316-725-000 HANDLE PLATE (1)
74 SM-0061201-SC SCREW (2)
75 E5704-700-000 SEAL (1)
76 E1336-725-000 MTC SHUTTLE COVER (1)
77 SM-0040601-SC SCREW M4X0.7 L=6 (4)
78 HX-0032600-0F BUSH (1)
79 SL-6061292-TN SCREW (2)
80 HX-0035400-0G BOARD PARTS (8)
81 E1348-725-000 CONNECTOR BRACKET (1)
82 SM-0040601-SC SCREW M4X0.7 L=6 (4)
83 E1357-725-000 SIDE COVER SUPPORT (2)
84 E1330-725-000 COVER FUR (1)
