Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
更换ROTARY JOINT(L2)
Page
3-11-62
Note

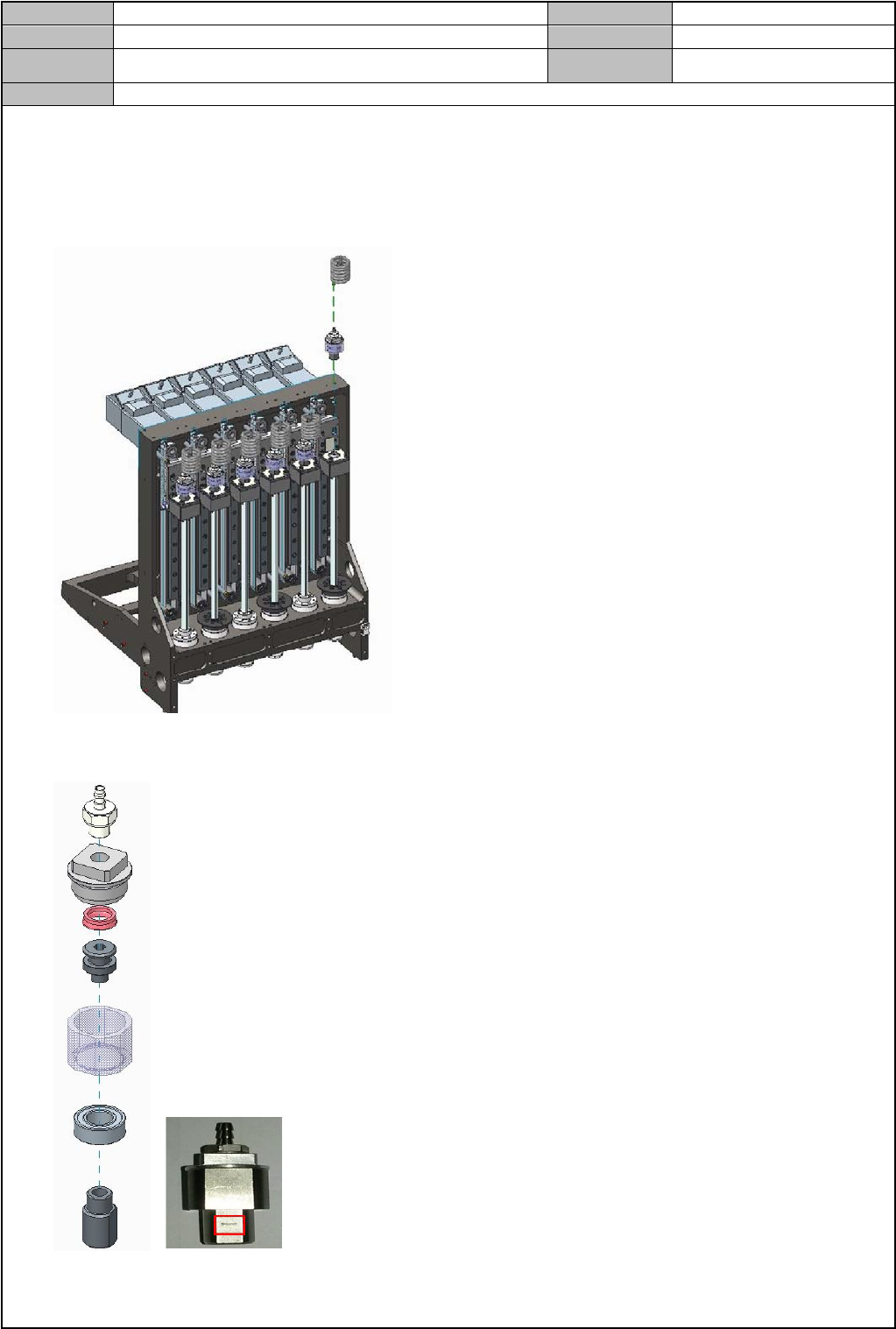

[更换 ROTARY JOINT(L2)]
1. 拆卸线圈软管和 Joint Assy
2. Joint Assy 展开图
* 组装 Y Packing 时，涂抹 HP300
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Total Pages
26
目录
[确认 JOG BOX] ................................................................................................... 2
[准备 MMI IO CHECK] ......................................................................................... 3
[MMI IO CHECK(OUTPUT)] ................................................................................ 5
[MMI IO CHECK(INPUT)] .................................................................................. 12
[MOTOR IO CHECK] ......................................................................................... 17
[LIGHT CHECK] ................................................................................................. 21
[确认 MMI 版本] .................................................................................................. 23
[安装 MMI] .......................................................................................................... 24
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
确认JOG BOX
Page
3-12-2
Note
[确认 JOG BOX]
1. 在 MMI 选择< Diagnosis > → <Jogbox>
2. 启动 Jogbox 的按钮时，确认 MMI 的 Jogbox 上接受信号后是否显示深灰色
3. 依次启动 Jogbox 的 Up/ Down 按钮、Free 按钮、方向键、Mode 按钮、Axis 按钮、Head 按钮后，
确认 MMI 上的 Jogbox LED 上有无输入信号
4. 在 MMI 上的 JogBox 窗口按下按钮后，确认 JogBox 的 LED 上有无输入信号
