Model DECAN Series Company SAMSUNG TECHWIN Module 3.12 MMI V ersion 01 Tit le MMI IO CHECK(OUTP UT) Page 3-12-1 1 Note 9. 确认 HyperT erminal 画面上是否输 出为如下 10. Sys.Setup → F6 Periph. → 点击 Tray Feeder → T ray Feeder Setting →…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MMI IO CHECK(OUTPUT)
Page
3-12-10
Note

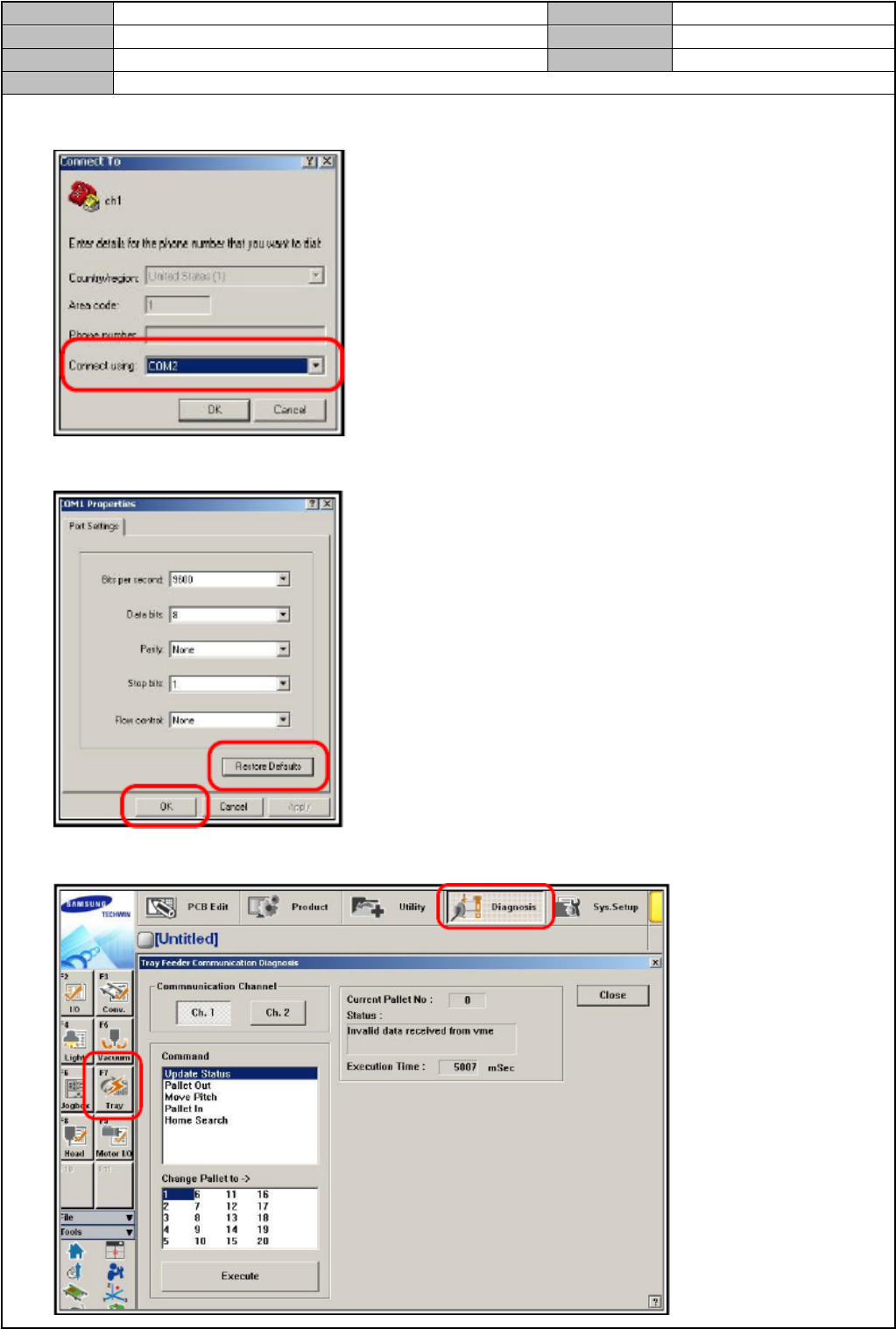

6. 选择 COM2
7. <Restore Default> → 选择<OK>
8. <Diagnosis> → <F7.Tray> → 点击<Execute>
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MMI IO CHECK(OUTPUT)
Page
3-12-11
Note
9. 确认 HyperTerminal 画面上是否输出为如下
10. Sys.Setup → F6 Periph. → 点击 Tray Feeder → Tray Feeder Setting → 将 TYPE 设定为 NONE
11. 点击 Update
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MMI IO CHECK(OUTPUT)
Page
3-12-12
Note
[MMI IO CHECK(INPUT)]
确认输入位置、等待位置、安装位置、工作结束位置、输出位置
感应入口、安装、出口传感器后，确认是否在 I/O 画面上显示
Shuttle Conveyor (Shuttle - Dual - Shuttle)
Full SingleConveyor (Single - Single - Single)
Full DualConveyor (Dual - Dual - Dual)
Left Only Shuttle Conveyor (Shuttle - Dual - Dual)
