Model DECAN Series Company SAMSUNG TECHWIN Module 3.19 ELECTRIC DEVICE V ersion 01 Tit le 组装 MOTOR DRIVER Page 3-19-27 Note [ 组装 MOT OR DRIVER] 1. 准备托架 2. 组装 Motor Driver
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
更换电源
Page
3-19-26
Note

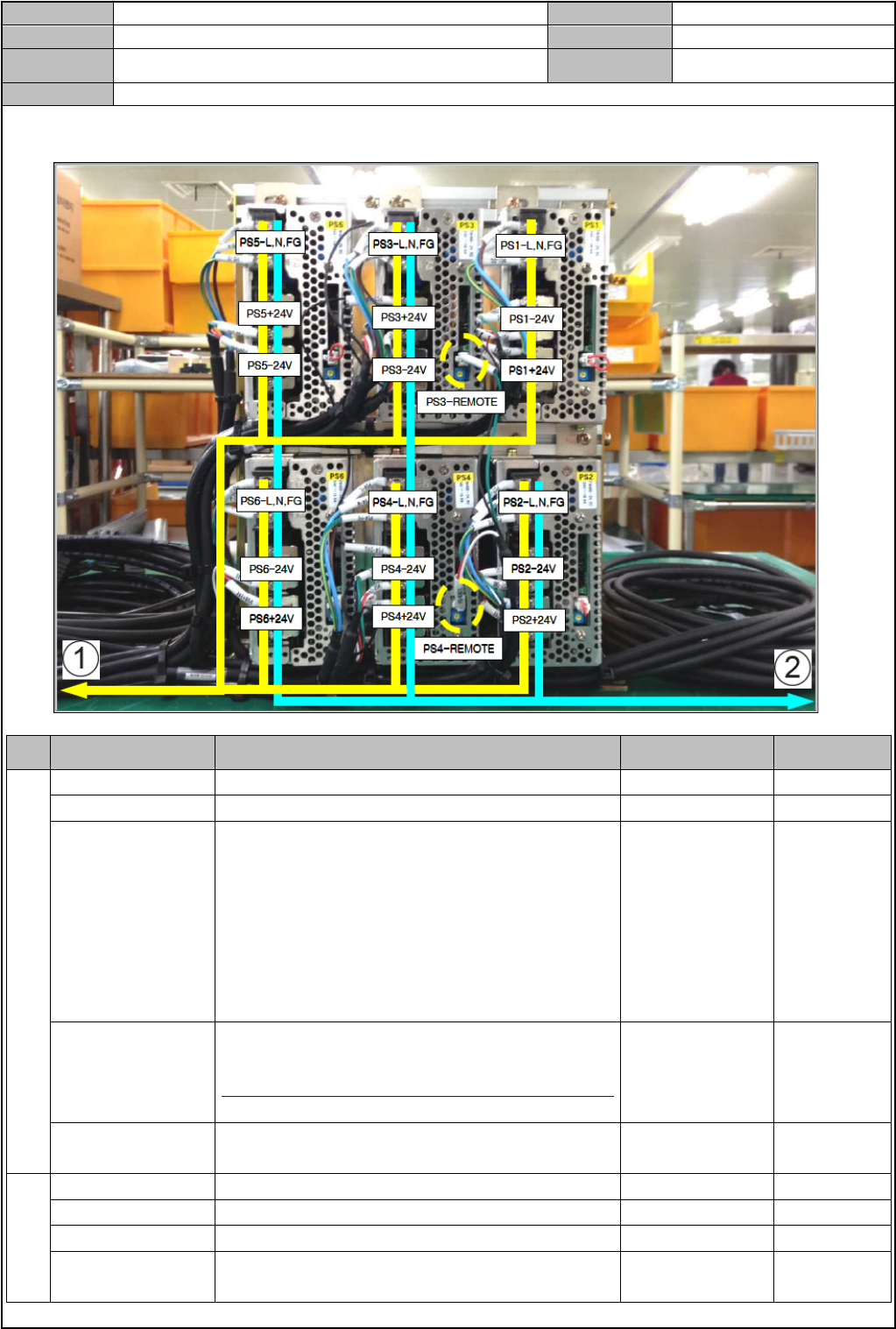

4. 电源上连接电缆
No
规格 品名
START END
1
SM511C FD004 CABLE ASSY-F LEFT FEEDER BASE PWR PS3+24V,-24G F-FB-L
SM511C FD007 CABLE ASSY-R RIGHT FEEDER BASE PWR PS4+24V,-24G R-FB-R
SM511C PW101 CABLE ASSY-PS1 PS4 AC PW T5L
PS1-L,N,FG
PS2-L,N,FG
PS3-L,N,FG
PS4-L,N,FG
PS5-L,N,FG
PS6-L,N,FG
PS3-24G
PS4-24G
T5L
PS1-24G
PS3-24G
SM511C PW112
CABLE ASSY-PS1 PS4 DC PW T6L
PS1+24V,-24G
PS2+24V,-24G
PS3-REMOTE
PS4-REMOTE
T2L
SM511C PW124 CABLE ASSY-RZ1-RZ10 DC24V PW PS6+24V,-24G
RZ12-CN5
RZ910-CN5
2
SM511C FD005 CABLE ASSY-F RIGHT FEEDER BASE PWR PS3+24V,-24G F-FB-R
SM511C FD006 CABLE ASSY-R LEFT FEEDER BASE PWR PS4+24V,-24G R-FB-L
SM48C IT005-1 CABLE ASSY-DEVICE NET POWER EXT PS2+24V,-24G DEVICE-PW
SM511C PW123 CABLE ASSY-FZ1-FZ10 DC24V PW PS5+24V,-24G
FZ12-CN5
FZ910-CN5
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
组装MOTOR DRIVER
Page
3-19-27
Note
[组装 MOTOR DRIVER]
1. 准备托架
2. 组装 Motor Driver
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
组装MOTOR DRIVER
Page
3-19-28
Note
3. 设定 Step Motor Driver 的 Dip Switch
4. 连接电缆
规格 品名
START END
SM41 SC006 MC1 ENABLE CABLE ASSY MC1/+A1,21
MC1/-A2,22
SC-CN18,
SC-CN19
SM411 PW029 SHUTTLE WIDTH PW CABLE ASSY MS1.WS1,WW1,MS2.WS2.
WW2-CN1
DP2-CN2,
3,4,5
SM471 PW007 CABLE ASSY-CP1 TB1 MC1 TB1-1A,6A CP1-2,4
SM471 PW008 CABLE ASSY-CP2 TB1 MC2 CABLE MC1-1,3,5TB1-13A,15A CP3-2,4,6
SM471 PW018 CABLE ASSY-FY1 FY2 SERVO POWER TB1-13C,15C,17C,19C,21C
PE15,16
FY1, FY2
DRV
SM471 PW019 CABLE ASSY-RY1 RY2 SERVO POWER TB1-14C,16C,18C,20C,22C
PE17,18
RY1, RY2
DRV
SM471 PW111-2 CABLE ASSY-TB1 FS1 FS2 TB1-9C,10C FS1,FS2-B
SM471 PW115 CABLE ASSY-MC1 TB1 MC1-2,4,6 TB1-17A,1
9A,21A
SM471 PW120-3 CABLE ASSY-TB1 MC1 MC1-13 TB1-11B
SM471 SC007-1 AXIO BD 1 PWR CABLE ASSY SC-CN27 AXIO#1-C
N2
SM511 PW016 LI
QI
CABLE ASSY-FX,FS SERVO POWER TB1-13B,15B,17B,19B,21B
PE11,12
FX,FS-
DRV
FX,FS-PE
SM511 PW017 LI
QI
CABLE ASSY-RX,RS SERVO POWER TB1-14B,16B,18B,20B,22B
PE13,14
RX, RS-
DRV
RX, RS-PE
SM511 PW112 CABLE ASSY-FAN POWER TB1-6D, TB1-7D FS3-B, FS
4-B
SM511 PW113 CABLE ASSY-SERVO FAN POWER TB1-8D FS5-B
SM511C VM003 CABLE ASSY-FY1 FY2 DRV COMMAND AXIO#1-CN11, AXIO#1-CN
12
FY1,2-DR
V
SM511C VM004 CABLE ASSY-RY1 RY2 DRV COMMAND AXIO#1-CN13, AXIO#1-CN
14
RY1,2-DR
V
SM511C VM005 CABLE ASSY-FX FS DRV COMMAND AXIO#1-CN15, AXIO#1-CN
16
FX,RX-DR
V
SM511C VM013 CABLE ASSY-MS1 WS1 DRV COMMAN AXIO#1-CN21, AXIO#1-CN
22
MS1,WS1-
DRV
SM511C VM014 CABLE ASSY-WW1 MS2 DRV COMMAND AXIO#1-CN23, AXIO#1-CN
24
WW1,MS1
-DRV
SM511C VM015 CABLE ASSY-WS2 WW2 DRV COMMAN
D
AXIO#1-CN25, AXIO#1-CN
26
WS2,WW2
-DRV
