Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.15 PC RACK
Version
01
Title
组装PC RACK
Page
3-15-4
Note

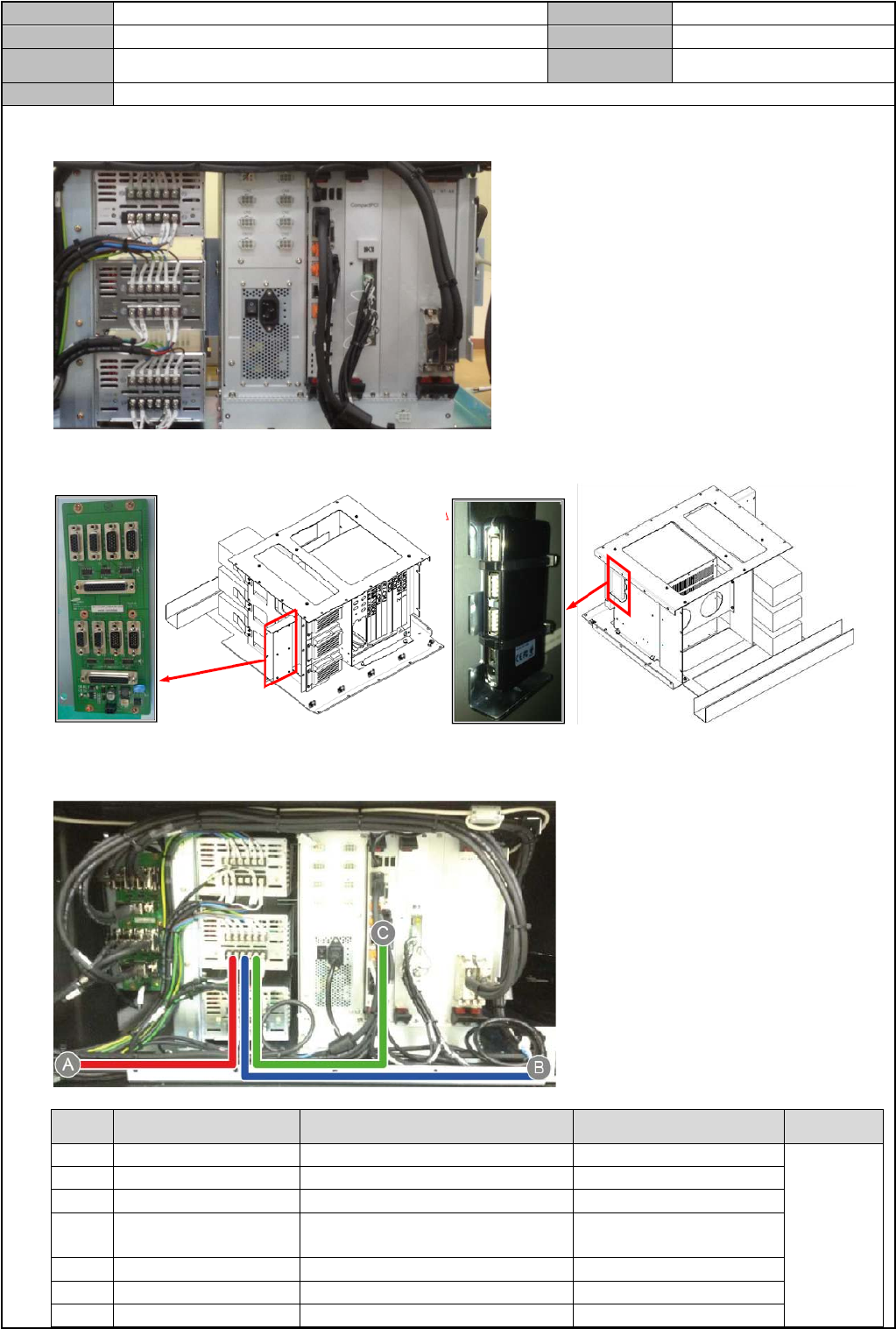

6. 将 PC Rack 和电源组装于 Rack Module 托架
7. 组装 Vision IF Board 和 USB HUB
Vision IF Board USB HUB
8. 进行电缆布线
No.
规格
START END
备注
1 SM511_PW101-1 5-FG, PS6-FG T7L-9,10
A
2 SM511_PW103 5+24V,-24G, PS6+24V,-24G T7L-5,6,7,8
3 SM511_PW109 T6L-1,2,3,4,5,6 PS3,4-L,N,FG
4 SM511_PW111 T5L-1,2,3,4,5,6
1-L,N,FG
PS2-L,N,FG
5 SM511_PW120 T7L-1,2 PS1+24V,-24G
6 SM511_PW121 T7L-3,4 PS2+24V,-24G
7 SM511_PW124 PS4+24V,-24G RZ-DRV-PWR
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.15 PC RACK
Version
01
Title
组装PC RACK
Page
3-15-5
Note
No.
规格
START END
备注
8 SM511_PW127 T6L-7,8,9,10 PS1,2+24V,-24G
A
9 SM511_PW101
PS5-L,N
PS6-L,N
T5L-7,8,9,10
PS5-GND
PS6-GND
PS1-GND
PS5-GND
P/S 内部
10 SM511_PW123 PS3+24V,-24G
FZ12-CN5
FZ910-CN5
B
11 SM511_IT005
PS2+24V
PS2-24G
DEVICE NET B/D CH1
DEVICE NET B/D CH2
DEVICE NET B/D CH3
DEVICE NET B/D CH4
C
No.
规格
START END
备注
1 SM511_VIS000 VIS-CN11 RACK-CN1 A
2 SM511_VIS012 VIS-CN4 NX1-CN1
B
3 SM511_VIS012-1 VIS-CN9 NX2-CN1
4 SM511_VIS001-1 VIS-CN1 FID1-CAM1
C
5 SM511_VIS001-2 VIS-CN2 FID1-CAM2
6 SM511_VIS005 VIS-CN3 FLY1-PW
7 SM511_VIS008 VIS-CN5 FLY1-CAM
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.15 PC RACK
Version
01
Title
组装PC RACK
Page
3-15-6
Note
No.
规格
START END
备注
1 3M CB-CE-3 PCIE-2 AXIO#2(Front)
A
2 SM511_KV003-2 SBC-VGA1 F-MON
3 SM511_PC003 PC-232 PC-232-EXT
4 SM511_VM111 SBC-LAN1 LAN-EXT
5 SM511_IT001
COM3/4(FULL IT OPTIO
N)
F-BAR
R-BAR B
6 SM511_IT004
DEVICE NET B/D CH2
DEVICE NET B/D CH3
FRONT FDR BASE RIGHT
REAR FDR BASE LEFT
A
DEVICE NET B/D CH1
DEVICE NET B/D CH4
FRONT FDR BASE LEFT
REAR FDR BASE RIGHT
B
7 SM511_AX103-1 FY-AX-EXT AX-CN2
C
8 SM511_CS051-1 AX-CN4-EXT AX-CN4
9 SM511_PC005 F-USB USB-HUB
No.
规格
标签
CPU BOX VISION IF BOARD
A SM511CVIS012-2 NX2-CN1 NX2-CN1
B SM511CVIS012 NX1-CN1 NX1-CN1
C SM48C_VIS000 VIS-CN11 RACK-CN1
