6 Repairing the X Feeder modules
6.5 Foil Disposal
48 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

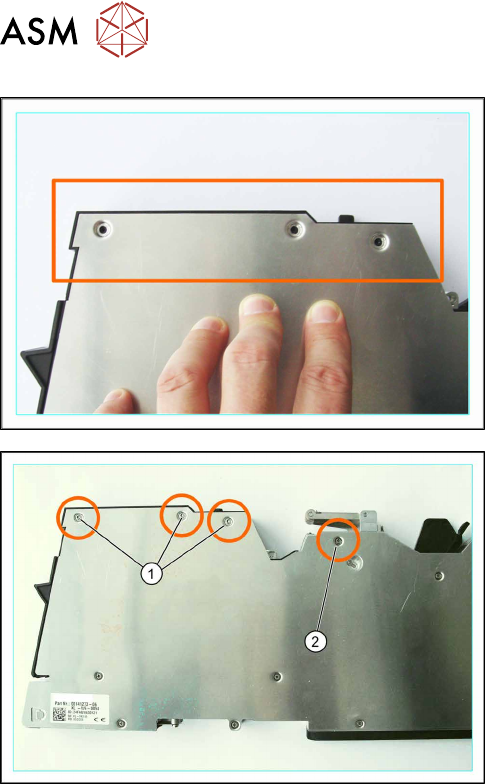

► Carefully place the feeder module down on its left
side.
► Position the foil container so that it is aligned
against the side cover.
► Loosen the screws marked in the diagram.
(1) Mushroom head cutting screw (2.5x7.5mm)
Torx
(2) Cylinder head Phillips screw (2.5x5mm)
► Fit the rocker (see 6.6.2.2 "Fitting the Rocker (4 -
88 mm)" [}70]).
6 Repairing the X Feeder modules
6.5 Foil Disposal
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 49
6.5.2 Stripping Device Foil Disposal
Required spare parts
Examples: stripping device foil disposal for different widths
Left: 4mm X
Top: 8mmX (with 1 or 2 screws), 16 and 24mmX
Bottom: 88mmX
Feeder module Item no. Module
Version <= -06
Item no. Module
Version >= -07
Designation
4 mm 03087963-xx 03087963-xx Stripping device / gear end X4
8 mm 03050581-xx 03050581-xx Stripping device / Foil disposal X8
12 mm 03042429-xx 03042429-xx Stripping device / Foil disposal X12
16 mm 03042410-xx 03096933-xx Stripping device / Foil disposal X16
24 mm 03041984-xx 03085743-xx Stripping device / Foil disposal X24
32 mm 03042453-xx 03085758-xx Stripping device / Foil disposal X32
44 mm 03042500-xx 03085171-xx Stripping device / Foil disposal X44
56 mm 03043422-xx 03085768-xx Stripping device / Foil disposal X56
72 mm 03043426-xx 03085778-xx Stripping device / Foil disposal X72
88 mm 03042234-xx 03085787-xx Stripping device / Foil disposal X88
Modules with upgrade kit
Feeder modules which contain an upgrade kit (marked with a label
on the left), can have the module version -07 stripping device fitted
as a spare part (item no.).
Required tools
●
Flat bladed (slotted) screwdriver
●
Phillips screwdriver
6.5.2.1 Removing the Stripping Device (4 mm)
► Loosen the screw on the stripping device as in-
dicated in the figure.
► Remove the stripping device.
6 Repairing the X Feeder modules
6.5 Foil Disposal
50 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017
6.5.2.2 Fitting the Stripping Device (4 mm)
► Carefully place the stripping device on the foil
disposal drive as indicated.
Make sure that the stripping device is flush with
the foil disposal drive.
► Screw the stripping device to the foil disposal
drive.
6.5.2.3 Removing the Stripping Device (8-88mm)
► First remove the foil disposal drive (see - depend-
ing on feeder module - 6.5.1 "Foil Disposal Drive
Assembly" [}37]).
► Loosen the screws marked in the figure, at the
top and bottom of the stripping device.
Depending on the width of the feeder module,
there will be up to a total of 4 screws to be
loosened at the top and bottom.
► Remove the stripping device.
6.5.2.4 Fitting the Stripping Device (8–88mm)
Depending on the width of the feeder module, there
will be either 1 or 2 screws to be loosened at the top
and bottom.
► (1) Insert the slotted screw(s) into the top of the
stripping device.
► (2) Hold the stripping device above the drilling for
the screw.
► (3) Screw the stripping device to the top of the foil
disposal drive.
This pulls the stripping device against the foil dis-
posal drive.
► Screw the stripping device to the bottom of the
foil disposal drive.
Depending on the width of the feeder module,
use 1 or 2 screws for this.
Attention:
Make sure that the stripping device is fully flush
against the foil disposal drive. If not, the tamp wheels
will not engage and the foil will not be pulled in.
► Insert the foil disposal drive again (see - depend-
ing on feeder module - 6.5.1 "Foil Disposal Drive
Assembly" [}37]).
