6 Repairing the X Feeder modules 6.5 Foil Disposal 50 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 6.5.2.2 Fitting the Stripping Device (4 mm) ► Carefully place the stripping device on the foil disposal drive as ind…
6 Repairing the X Feeder modules
6.5 Foil Disposal
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 49

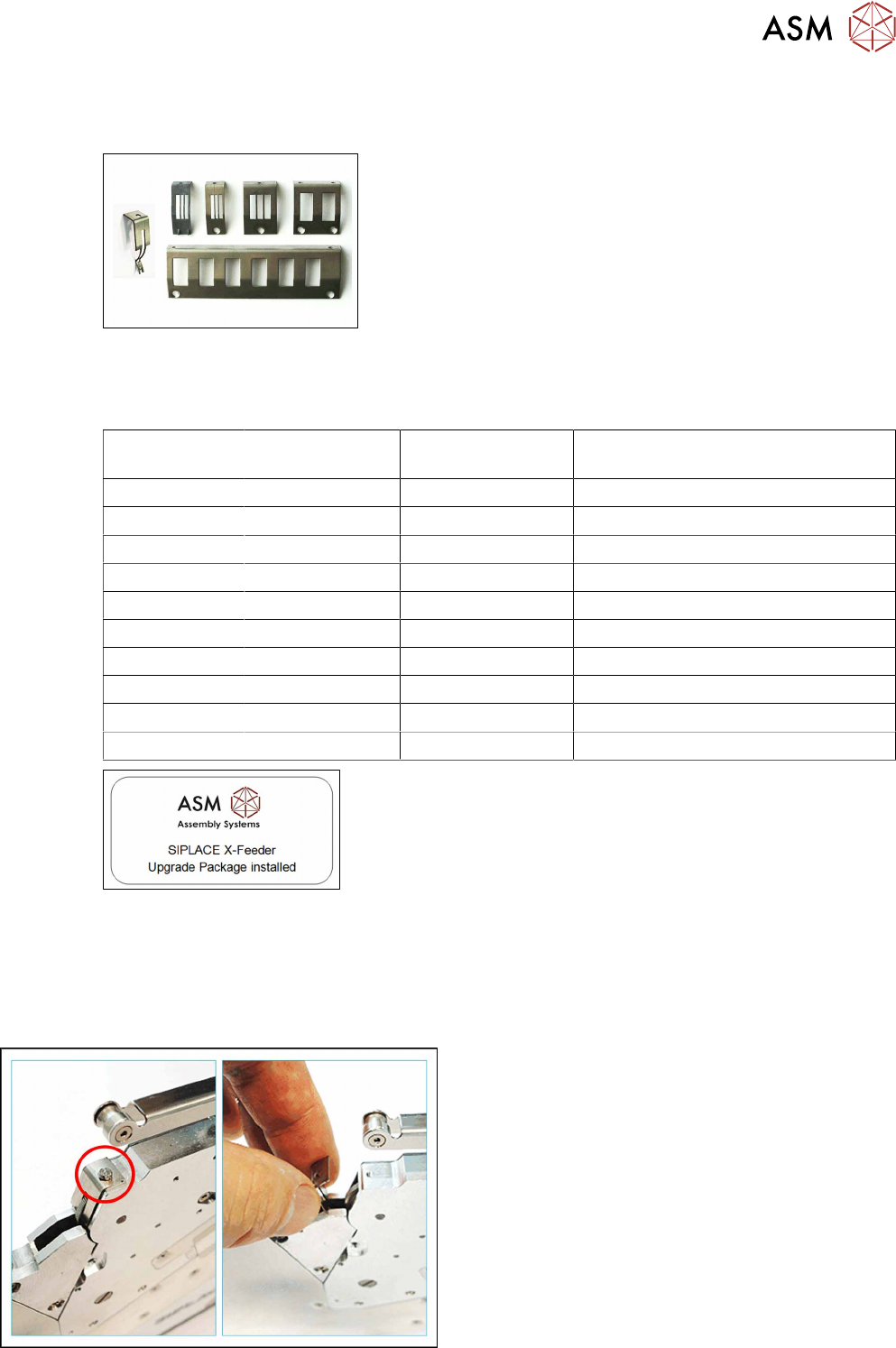

6.5.2 Stripping Device Foil Disposal
Required spare parts
Examples: stripping device foil disposal for different widths
Left: 4mm X
Top: 8mmX (with 1 or 2 screws), 16 and 24mmX
Bottom: 88mmX
Feeder module Item no. Module
Version <= -06
Item no. Module
Version >= -07
Designation
4 mm 03087963-xx 03087963-xx Stripping device / gear end X4
8 mm 03050581-xx 03050581-xx Stripping device / Foil disposal X8
12 mm 03042429-xx 03042429-xx Stripping device / Foil disposal X12
16 mm 03042410-xx 03096933-xx Stripping device / Foil disposal X16
24 mm 03041984-xx 03085743-xx Stripping device / Foil disposal X24
32 mm 03042453-xx 03085758-xx Stripping device / Foil disposal X32
44 mm 03042500-xx 03085171-xx Stripping device / Foil disposal X44
56 mm 03043422-xx 03085768-xx Stripping device / Foil disposal X56
72 mm 03043426-xx 03085778-xx Stripping device / Foil disposal X72
88 mm 03042234-xx 03085787-xx Stripping device / Foil disposal X88
Modules with upgrade kit
Feeder modules which contain an upgrade kit (marked with a label
on the left), can have the module version -07 stripping device fitted
as a spare part (item no.).
Required tools
●
Flat bladed (slotted) screwdriver
●
Phillips screwdriver
6.5.2.1 Removing the Stripping Device (4 mm)
► Loosen the screw on the stripping device as in-
dicated in the figure.
► Remove the stripping device.
6 Repairing the X Feeder modules
6.5 Foil Disposal
50 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017
6.5.2.2 Fitting the Stripping Device (4 mm)
► Carefully place the stripping device on the foil
disposal drive as indicated.
Make sure that the stripping device is flush with
the foil disposal drive.
► Screw the stripping device to the foil disposal
drive.
6.5.2.3 Removing the Stripping Device (8-88mm)
► First remove the foil disposal drive (see - depend-
ing on feeder module - 6.5.1 "Foil Disposal Drive
Assembly" [}37]).
► Loosen the screws marked in the figure, at the
top and bottom of the stripping device.
Depending on the width of the feeder module,
there will be up to a total of 4 screws to be
loosened at the top and bottom.
► Remove the stripping device.
6.5.2.4 Fitting the Stripping Device (8–88mm)
Depending on the width of the feeder module, there
will be either 1 or 2 screws to be loosened at the top
and bottom.
► (1) Insert the slotted screw(s) into the top of the
stripping device.
► (2) Hold the stripping device above the drilling for
the screw.
► (3) Screw the stripping device to the top of the foil
disposal drive.
This pulls the stripping device against the foil dis-
posal drive.
► Screw the stripping device to the bottom of the
foil disposal drive.
Depending on the width of the feeder module,
use 1 or 2 screws for this.
Attention:
Make sure that the stripping device is fully flush
against the foil disposal drive. If not, the tamp wheels
will not engage and the foil will not be pulled in.
► Insert the foil disposal drive again (see - depend-
ing on feeder module - 6.5.1 "Foil Disposal Drive
Assembly" [}37]).
6 Repairing the X Feeder modules
6.5 Foil Disposal
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 51
6.5.3 Knurled Tamp Wheel
Required spare parts
Example: knurled tamp wheel 8 mm
Feeder
mod-
ule
Item no. Module
Version <= -06
Item no. Module
with upgrade
kit
Item no. Module
Version <= -06
Designation
4 mm 03082356-xx 03082356-xx 03082356-xx Tamp wheel knurled assy. X4
8 mm 03042326-xx 03042326-xx 03042326-xx Knurled tamp wheel assembly, /
foil disposal, X8
12 mm 03042426-xx 03042426-xx 03042426-xx Knurled tamp wheel assembly, /
foil disposal, X12
16 mm 03042412-xx 03117039-xx
03117048-xx
03117039-xx Knurled tamp wheel assembly, /
foil disposal, X16
24 mm 03041973-xx 03117040-xx
03117050-xx
03117040-xx Knurled tamp wheel assembly,
X24
32 mm 03042451-xx 03117041-xx
03117051-xx
03117041-xx Knurled tamp wheel assembly,
X32
44 mm 03042498-xx 03117043-xx
03117053-xx
03117043-xx Knurled tamp wheel assembly,
X44
56 mm 03043421-xx 03117044-xx
03117054-xx
03117044-xx Knurled tamp wheel assembly,
X56
72 mm 03043428-xx 03117045-xx
03117061-xx
03117045-xx Knurled tamp wheel assembly,
X72
88 mm 03042233-xx 03117046-xx
03117062-xx
03117046-xx Knurled tamp wheel assembly,
X88
Modules with upgrade kit:
Feeder modules which contain an upgrade kit (marked with a label
on the left), can have the module version -07 tamp wheel (drive
side) fitted as a spare part (item no.).
You must also replace the stuffing gear for the rocker opposite with
a module -07 version.
Required tools
●
Flat bladed (slotted) screwdriver
●
Phillips screwdriver
●
Tweezers
