Interval Save Time (Hour) Set the interval time that outputs the feeder ID individual
log file per hour. When "0" is set, interval save is not
performed.
When reaching the interval save time during
auto-running, file is output after stopping auto-running.
When changing this value and tapping "OK" button, the
current interval save timer is reset and the interval save
timer is restarted with new interval time.
4.2 Setting in “Unit log” screen
Close [ID log setting] screen and return to [Unit Log Setting] screen.
When outputting the feeder ID daily log file, set output path of the feeder ID daily log file to
“Server Path” in the “Feeder ID” field. By tapping [Browse] button and opening [Browse
Folder] screen, you can specify the folder path.
When “Server Path” is empty, the feeder ID daily log file is not output.
4.3 Setting in “Setting Detail History” screen
Tap [Setup]-[Software Setting]-[History]–[Unit log] button and open [Setting Detail History]
screen. If needed, perform the setting related to history. (This setting also influences
histories other than feeder)
Product Engineering Division
SMT Section
Robotics Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50281
14/15

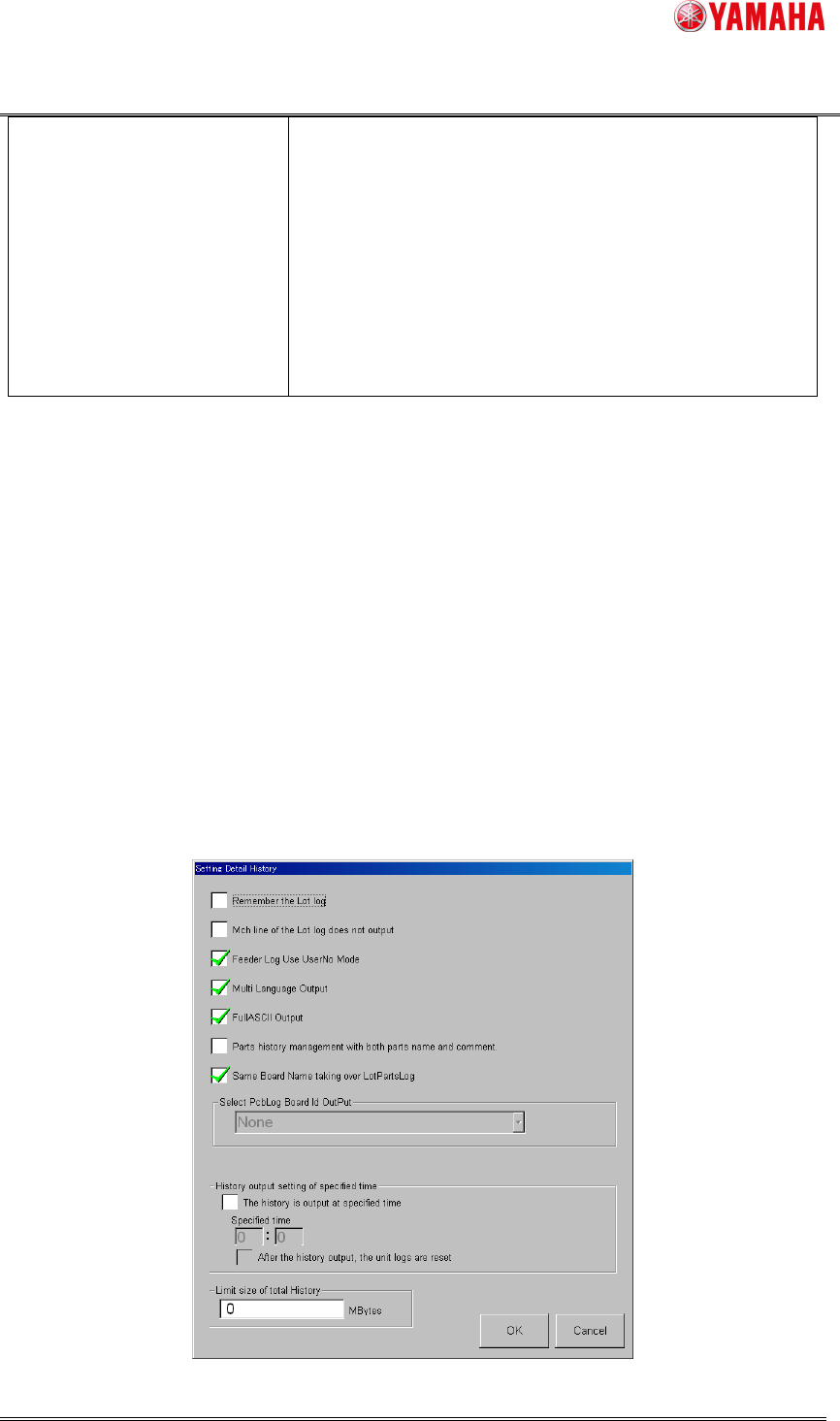

Fig.4.3 “Setting Detail History” screen
Table4.2 Setting items of “Setting Detail History” screen (Only items related to feeder ID log)
Item Explanation
Feeder Log Use
User No Mode
This is the setting of the output form when feeder set number is
output to a file.
- Checked: “Set No.” field is saved start from “1” (User No.).
- Unchecked: “Set No.” field is saved start from “0” (Soft No.).
Multi Language
Output
This is the setting of whether a file is outputted in multilingual mode.
- Checked: File is output in multilingual mode.
- Unchecked: File is not output in multilingual mode.
Limit size of total
History
When you want to set a limit on the total amount of operation history
data to be saved, enter limit size.
No limit is placed when set to "0".
This is applied to the feeder ID daily log file only.
5. Error Message
Error messages displayed by this function are as follows.
Table5.1 Error message
Error
Number
Title Causes and measures
12691 Feeder ID log file access
error
< Cause >
It is impossible to access to the folder specified in
“Server Path” of “ID log setting” screen. The specified
folder path might be incorrect.
< Measures >
Set an effective path to “Server Path”.
If the ID log management is set to "invalidity",
production is able to continue. However, counters such
as feeding times, pick error etc. are not counted.
Product Engineering Division
SMT Section
Robotics Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50281
15/15
12692 Feeder ID log file access
error
< Cause >
It is impossible to access to the feeder ID individual log
file on the devices (such as external HDD). The
specified folder path might be incorrect.
< Measures >
Set an effective path to “Server Path”.
If the ID log management is set to "invalidity",
production is able to continue. However, counters such
as feeding times, pick error etc. are not counted.
Error
Number
Title Causes and measures
12693 Failed to write to the
“FEEDER ID LOG” file.
< Cause >
The feeder ID log file cannot be saved because the
disk is full.
< Measures >
Make some space to save the feeder ID Log file.
* Except when saving by screen operation, "Ea12355:
Failed to write the report file” is output to error log
instead of this error.
12694 Failed to write to the
“FEEDER ID LOG” file.
< Cause >
The feeder ID log file cannot be saved because the file
is “Read Only”.
< Measures >
Release the write-protection of the media, or make the
file writable.
* Except when saving by screen operation, "Ea12355:
Failed to write the report file” is output to error log
instead of this error.
12695 Failed to write to the
“FEEDER ID LOG” file.
< Cause >
The feeder ID log file cannot be saved.
< Measures >
Find the cause and make it writable.
* Except when saving by screen operation, "Ea12355:
Failed to write the report file” is output to error log
instead of this error.
