Accessories Tape Splicing Tool for SMD Tape Connections Accessories for the Accessories 106 User Manual X Feeder Modules SIPLACE Family 6.4.7 Accessories for the Accessories For optimum tape splicin g, you can order the …
Accessories
Connecting the Tapes Tape Splicing Tool for SMD Tape Connections
User Manual X Feeder Modules SIPLACE Family 105

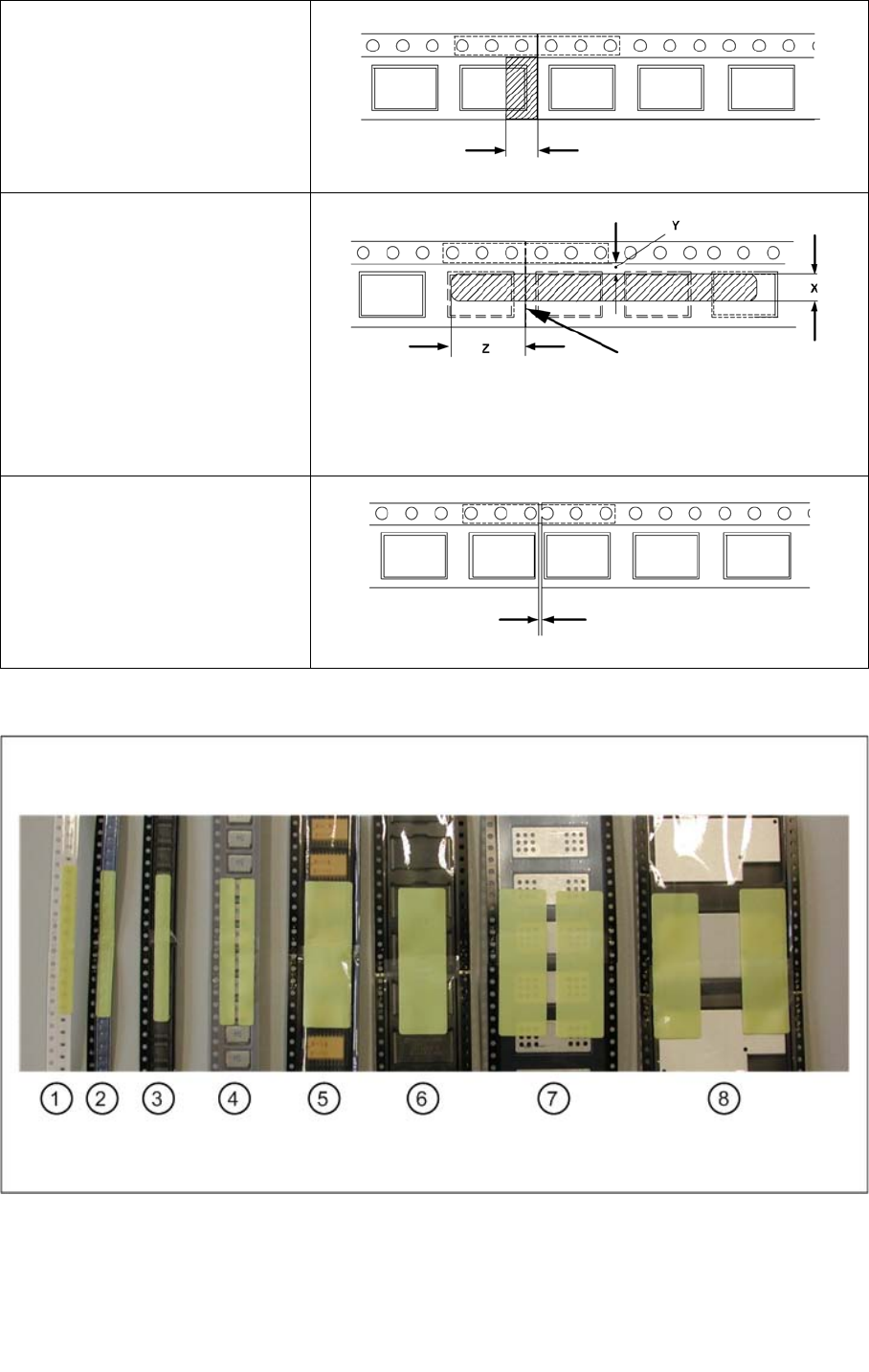

6.4.6.4 Examples of Correct Splice Connections
The cover foil overlap is missing.
The adhesive strip is not positioned
correctly.
X: adhesive strip is too narrow
Y: distance to perforation is too large
Z: adhesive strip not centered
The distance between the tape
pockets is too small.
Legend:
1 8 mm paper tape 5 24 mm blister tape
2 8 mm blister tape 6 32 mm blister tape
3 12 mm blister tape 7 44 mm blister tape
4 16 mm blister tape 8 56 mm blister tape
Accessories
Tape Splicing Tool for SMD Tape Connections Accessories for the Accessories
106 User Manual X Feeder Modules SIPLACE Family
6.4.7 Accessories for the Accessories
For optimum tape splicing, you can order the following items:
▪ SIPLACE Operator Kit [ 00349303-xx]
The Operator Kit contains 1 leather case, 1 pair SMD tweezers, 1 small slotted screwdriver, 1 small
Phillips screwdriver, 1 pair scissors and 1 brush.
▪ Tray for tape connector [00362492-xx]
▪ Splice tool holder [00362493-xx]
▪ Splice Cart [03073452-xx]
The documentation for correct splicing of tapes is also available as a poster or job guide
▪ Job Poster "Splicing the Carrier Tape" (Deutsch: [00192460-xx], English: [00192461-xx], other
languages on request)
▪ Job Guide "Feeder Modules" (Deutsch: [00191256-xx], English: [00191257-xx], other languages on
request)
