CP14 Head Part Exchange - Replacing the DP Drive en.pdf - 第17页

E-by SIPLACE CP14 Returning Aperture Ring Part Exchange 1/2 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: Wear Part: Consum ables: 1. If the …

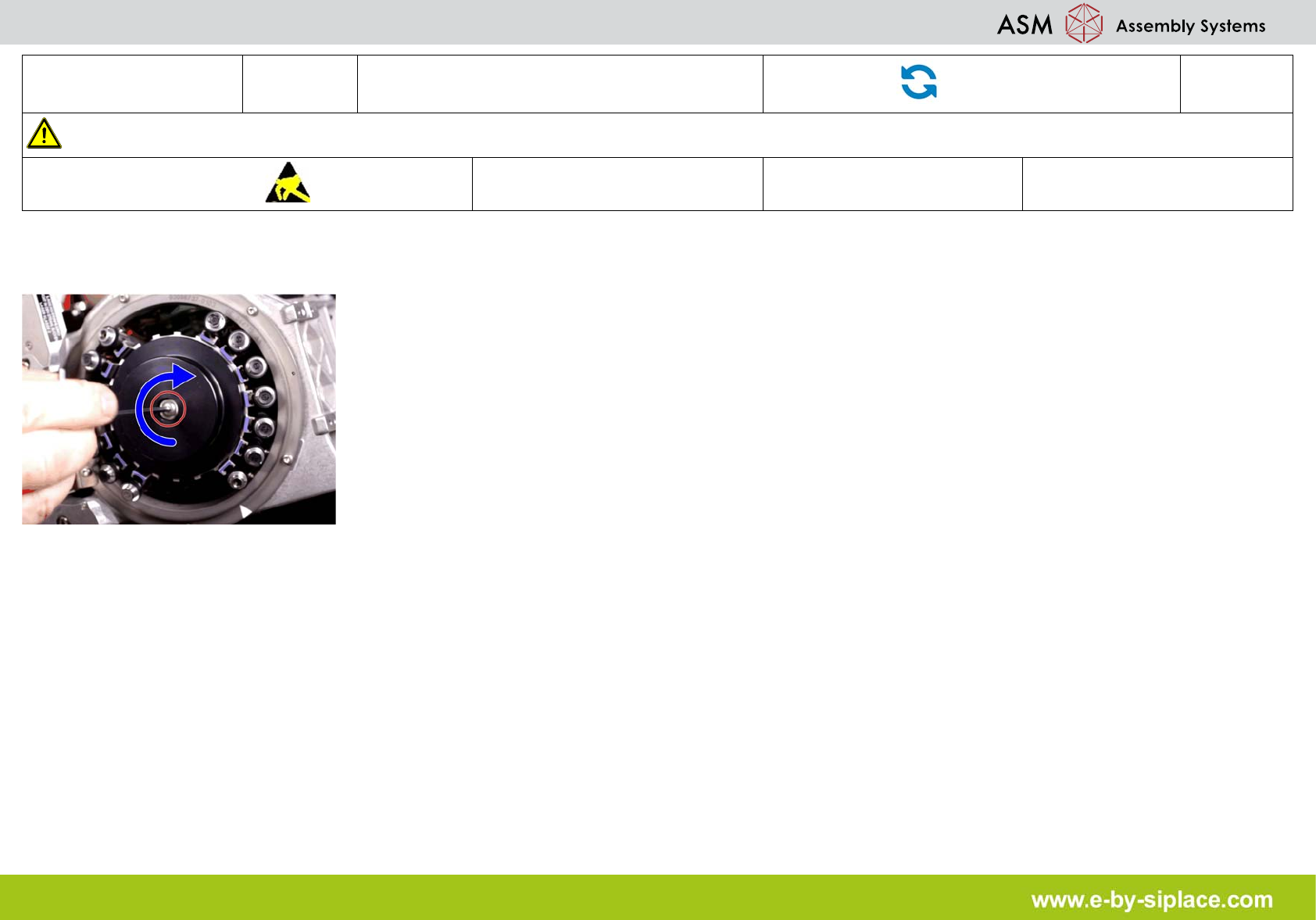

E-by SIPLACE CP14 Inserting the DP Drive

Part Exchange

2/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

7. Remove the DP change tool. 8. Coat the hose from inside with ethanol. This

makes fitting to the star carrier easier. The

nipple is not directly visible.

9. CAUTION! Take care that hose is not bent

or damaged. Use tweezers to connect hose

(2) with DP drive (1).

10. Press the board onto the connector. 11. Fit the two brackets (1) next to the board

with a torque of 0.1 Nm.

E-by SIPLACE CP14 Returning Aperture Ring

Part Exchange

1/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

1. If the O-ring is damaged, replace it with a

new one.

2. Correctly position the seal disk on the aper-

ture ring. Make sure all openings are aligned.

3. Position the aperture ring (with seal disk)

correctly onto locating pins in the star carrier.

4. Tighten the screws to a torque of 0.25+0.05

Nm.

5. Aperture ring only: Fix the aperture ring with

three fastening screws. Hand-tighten the

screws.

6. Grease the O-ring. To do this, use a clean-

ing stick coated with "Isoflex Topas 5051 50

ml (green)".

E-by SIPLACE CP14 Returning the Aperture Ring

Part Exchange

2/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

7. Refit the cover. Hand-tighten the screw fas-

tening the cover.
