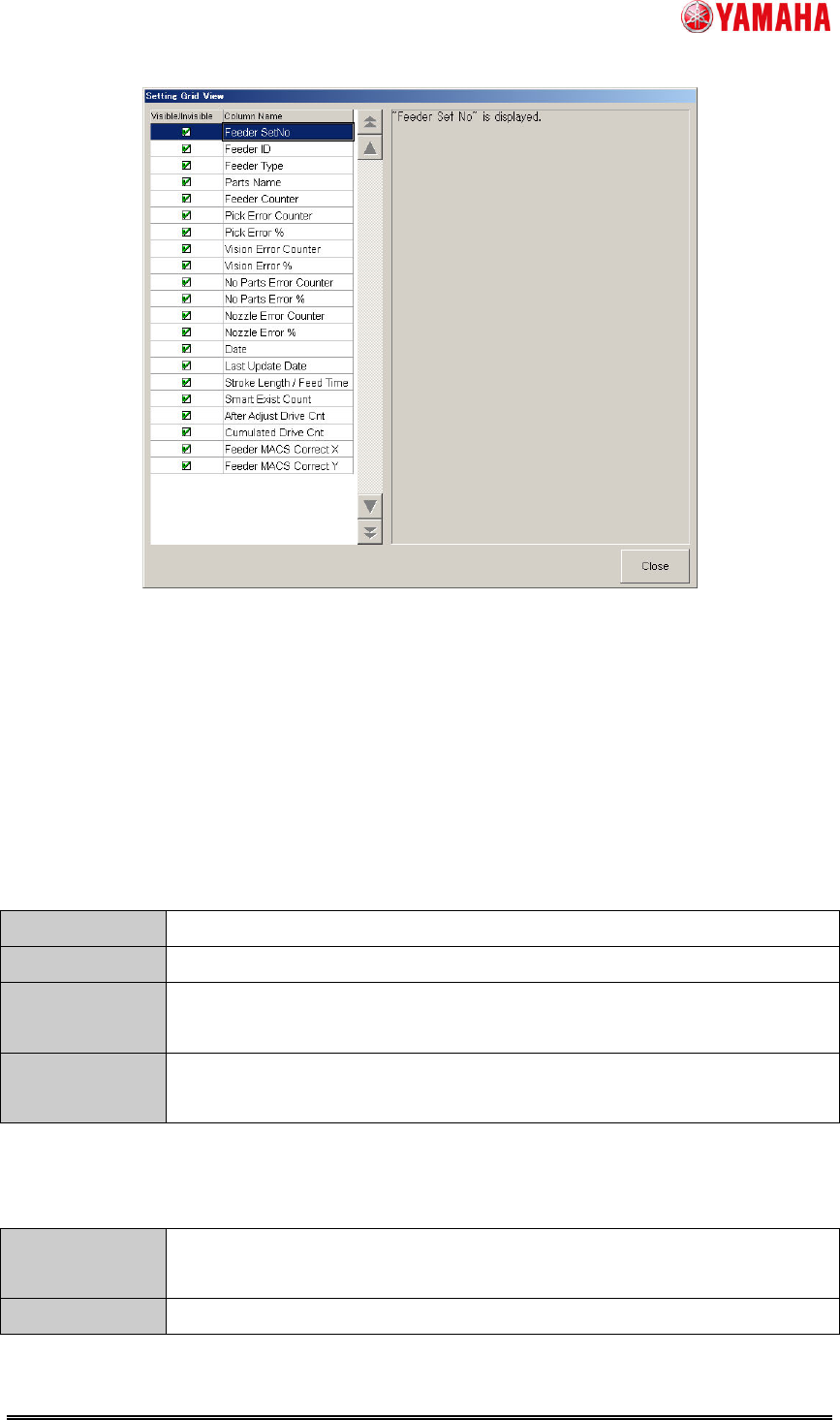

Fig.3.4 “Setting Grid View” screen
3.2 Feeder ID log file
The feeder ID log date is output to the following files automatically.
3.2.1 Feeder ID individual log file
History data of each feeder is output to the feeder ID individual log file (One file for each
feeder).
Contents
Feeder ID log data of each feeder
Output timing
When feeder is detached or machine is turned off.
Save path
Path specified in “feeder ID individual log” at “ID log setting” screen.
([Software Setting] - [History] tab - [Unit Log] button - [Log setting] button)
File name
(Feeder ID)_log.csv
Example: SSY-012-0001_log.csv
3.2.2 Feeder ID daily log file
History data of all used feeders is output day by day to the feeder ID daily log file.
Contents
Feeder ID log data of all feeders used on that day (Including the feeders
which are not set to this machine at the time of a file output)
Output timing
When machine is turned off or just after date changed.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50281
7/13
Save path
Path specified in “Unit log Setting” screen
([Software Setting] - [History] tab - [Unit Log] button)
File name
FeederIDLog_(Machine serial number)_(Date).csv
(例) FeederIDLog_Y11111_20130608.csv
3.2.3 Feeder ID log backup file
History data of feeders set to this machine is output to the feeder ID log backup file.
Contents
Feeder ID log data of all feeders set to this machine.
Output timing
When machine is turned off or just after date changed.
Save path
D:¥Machine¥My History
File name
FeederIDLog_local.csv
3.3 Feeder ID log file format
The format of the feeder ID log is as follows.
The file format is the same among the feeder ID individual log file, the feeder ID daily log
file, the feeder ID log backup file and the file saved by the [log save] button.
Table3.2 Feeder ID log file format
No.
Item name
E
Header section First line
1 Version Version of file format. Example: “V3.03”
2 Type of feeder set number
” [Soft]” is output when “Feeder SetNo” (No.12) is
output by soft no. ” [User]” is output when it is output
by user no. (See ”Setting Detail History” screen of
4.3 about setting method)
3 Multi-language notation
When multi-language mode: “MultiLanguage”
When not multi-language mode: Nothing is output
Item name section Second line
4 Language
When multi-language mode: “EN”(When English)
When not multi-language mode: Nothing is output
5 Item name of data section
Item names of data section (No.6~No.47) are
output.
Data section
After third line
When outputting plural feeder data, plural lines are
outputted.
6 Language
When multi-language mode: “EN”(When English)
When not multi-language mode: Nothing is output
7 Feeder ID Feeder ID is output.
8 Feeder Type Name Feeder type is output by name.
9 Feeder Type Feeder type is output by type number.
10 Parts Name Parts name attached to the feeder is output.
11 Machine No Serial number of the mounter is output.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50281
8/13
No.
Item name
Explanation
12 Feeder SetNo Set position number of attached feeder is output.
13 Cart No Cart number of attached feeder is output.
14 Cart Set No
Set position number of attached feeder in cart is
output. (Relative position in cart)
15 Location 0 fixed (Not in use)
16 Use Status 0 fixed (Not in use)
17 [user] Count
User mode: Number of times of feeder drive is
output.
18 [user] Pick Error User mode: Number of pick error is output.
19 [user] Parts Error User mode: Number of vision error is output.
20 [user] NoParts Error User mode: Number of no-parts error is output.
21 [user] Nozzle Error User mode: Number of nozzle error is output.
22 [user] Date
User mode: Date when measurement was started is
output.
23 [user] Last Update Date User mode: Last update date is output.
24 [user] Stroke Length / Feed Time
User mode: Distance of the tape sent by the feeder
(In case of a multi stick feeder, feeding time) is
output.
25 [user] Smart Exist Count
User mode: Number of feeder attachment times is
output.
26 [user] After Adjust Drive Cnt
User mode: Number of times of feeder drive after
adjusting by SS Tune-Up Station is output.
27 [Maintenance] Count
Maintenance mode: Number of times of feeder drive
is output.
28 [Maintenance] Pick Error Maintenance mode: Number of pick error is output.
29 [Maintenance] Parts Error Maintenance mode: Number of vision error is output
30 [Maintenance] NoParts Error
Maintenance mode: Number of no-parts error is
output
31 [Maintenance] Nozzle Error
Maintenance mode: Number of nozzle error is
output.
32 [Maintenance] Date
Maintenance mode: Date when measurement was
started is output.
33 [Maintenance] Last Update Date Maintenance mode: Last update date is output.
34
[Maintenance] Stroke Length /
Feed Time
Maintenance mode: Distance of the tape sent by the
feeder (In case of a multi stick feeder, feeding time)
is output.
35 [Maintenance] Smart Exist Count
Maintenance mode: Number of feeder attachment
times is output.
36
[Maintenance] After Adjust Drive
Cnt
Maintenance mode: Number of times of feeder drive
after adjusting by SS Tune-Up Station is output.
37 [total] Count
Total mode: Number of times of feeder drive is
output.
38 [total] Pick Error Total mode: Number of pick error is output.
39 [total] Parts Error Total mode: Number of vision error is output
40 [total] NoParts Error Total mode: Number of no-parts error is output.
41 [total] Nozzle Error Total mode: Number of nozzle error is output.
42 [total] Date
Total mode: Date when measurement was started is
output.
