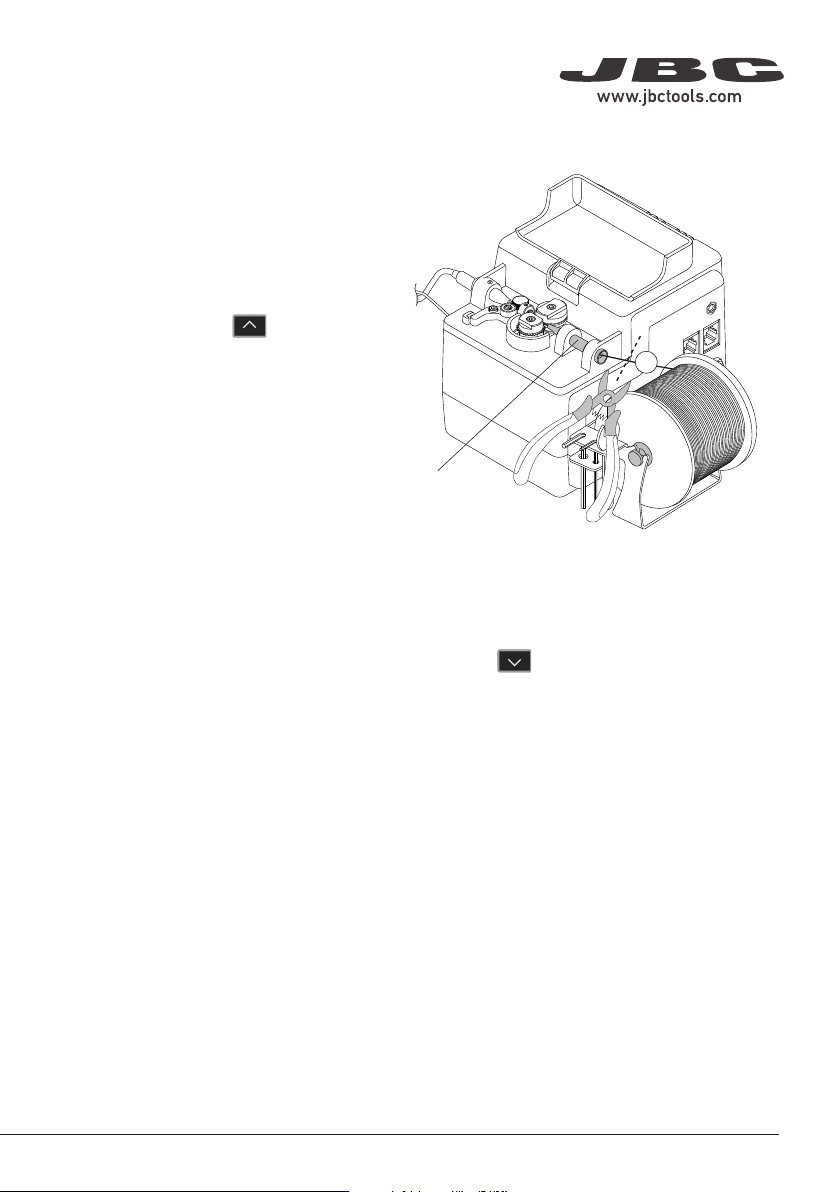

Solder-Wire Unloading
To unload solder wire with perforation that has
already passed through the guide tube, cut
the wire between the solder reel and the inlet
nozzle (1).
To extract the wire out of the tube, hold the tool
on your hand and press until the wire stops
moving forward.
Grasp the wire coming out of the outlet nozzle
with a pliers and pull from it until it is completely
out.
With Solder Wire Perforation
1
With Solder Wire Perforation
When using a guide kit without solder wire perforation, press until the wire is completely wound
on the solder reel to unload the solder wire. It is best to rotate the reel by hand as the wire is being
pulled back in order to keep it neatly arranged on the reel.
Or, If preferred, proceed as described before for perforated solder wire unloading.
Inlet
Nozzle
9
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
Notes
10
GSF
Guide Kits for SF280
With Perforation:
Ref.: GSF08V-B wire Ø 0.8 mm / Ø 0.032 in
Ref.: GSF10V-B wire Ø 1.0 mm / Ø 0.040 in
Ref.: GSF12V-B wire Ø 1.2 mm / Ø 0.047 in
Ref.: GSF15V-B wire Ø 1.5 mm / Ø 0.059 in
Ref.: GSF16V-B wire Ø 1.6 mm / Ø 0.063 in
Without Perforation:
GSF04D-B for wire Ø 0.38 - 0.40 mm / Ø 0.015 - 0.016 in
GSF05D-B for wire Ø 0.46 - 0.56 mm / Ø 0.018 - 0.022 in
GSF06D-B for wire Ø 0.60 - 0.64 mm / Ø 0.023 - 0.025 in
GSF07D-B for wire Ø 0.70 - 0.78 mm / Ø 0.028 - 0.031 in
GSF08D-B for wire Ø 0.80 - 0.82 mm / Ø 0.032 - 0.033 in
GSF10D-B for wire Ø 0.90 - 1.10 mm / Ø 0.036 - 0.044 in
GSF12D-B for wire Ø 1.14 - 1.27 mm / Ø 0.045 - 0.051 in
GSF15D-B for wire Ø 1.50 - 1.57 mm / Ø 0.060 - 0.062 in
GSF16D-B for wire Ø 1.60 - 1.63 mm / Ø 0.063 - 0.065 in
GSF18D-B for wire Ø 1.80 mm / Ø 0.073 in
- Guide Tube Length: 126 cm / 49.6 in
- Package Dimensions: 245 x 185 x 45 mm
(L x W x H) 9.65 x 7.28 x 1.77 in
Complies with CE standards.
ESD safe
Specifications
Total Net Weight: Package Weight:
108 g / 0.24 lb 200 g / 0.44 lb
108 g / 0.24 lb 200 g / 0.44 lb
94 g / 0.21 lb 186 g / 0.41 lb
94 g / 0.21 lb 186 g / 0.41 lb
94 g / 0.21 lb 186 g / 0.41 lb
104 g / 0.23 lb 196 g / 0.43 lb
104 g / 0.23 lb 196 g / 0.43 lb
104 g / 0.23 lb 196 g / 0.43 lb
104 g / 0.23 lb 196 g / 0.43 lb
104 g / 0.23 lb 196 g / 0.43 lb
90 g / 0.20 lb 182 g /0.40 lb
90 g / 0.20 lb 182 g /0.40 lb
90 g / 0.20 lb 182 g /0.40 lb
90 g / 0.20 lb 182 g /0.40 lb
