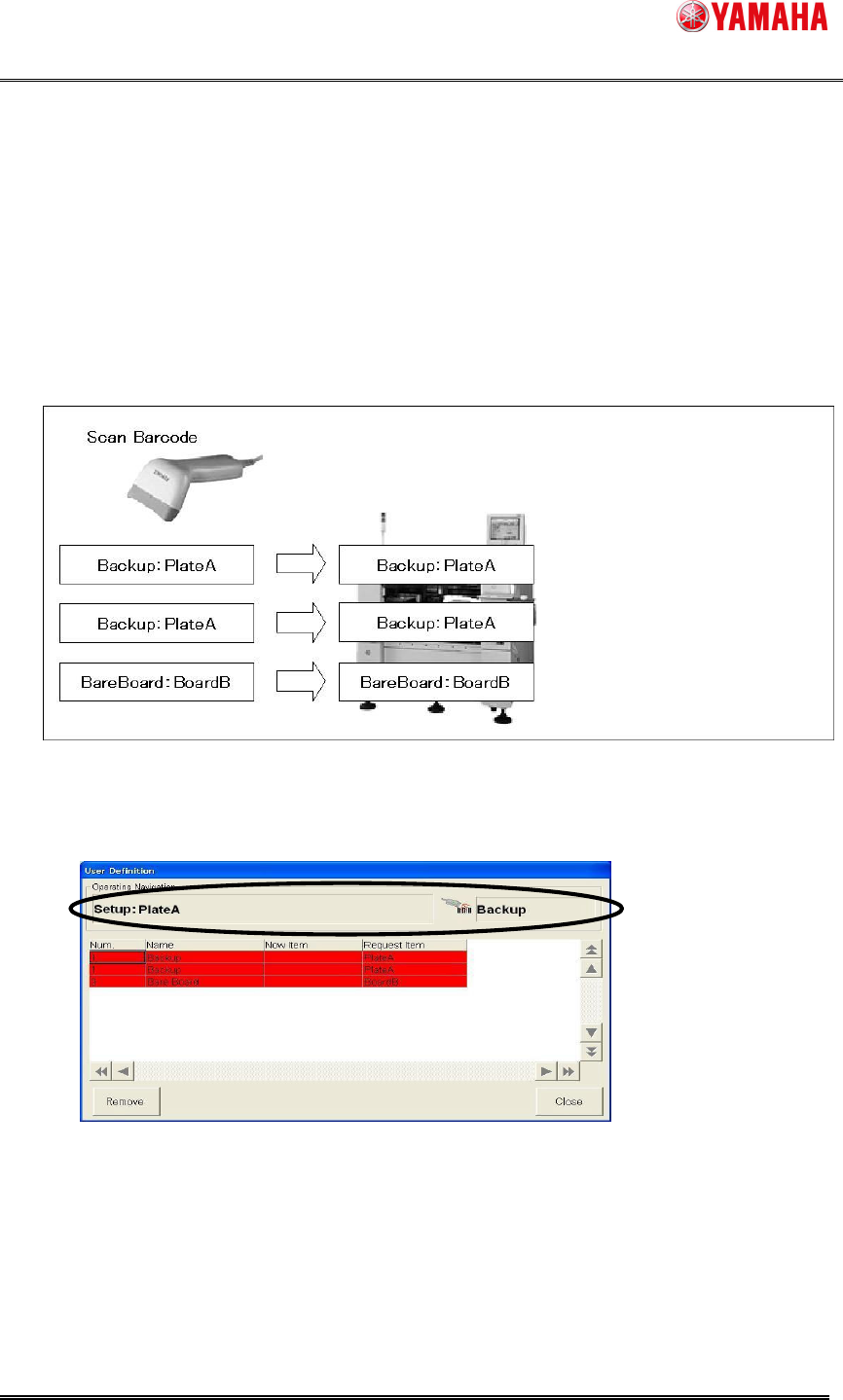

4.2 Setup work of “User Definition”
4.2.1 Setup work of necessary item
When a necessary item exists, the item is setup, and the barcode of the item is scanned
with the barcode reader.
Ex.1: When you setup the following. ( In the machine for Twin push-up )
It is two as for item "PlateA" of “User Definition _ name” "Backup".
It is one as for item "BoardB" of “User Definition _ name” "Bare Board".
Step1. Two "PlateA" of "Backup" is setup.
1. Check the content displayed in the [User Definition] dialog.
2. Setup two "PlateA" according to the content.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50064
6/12

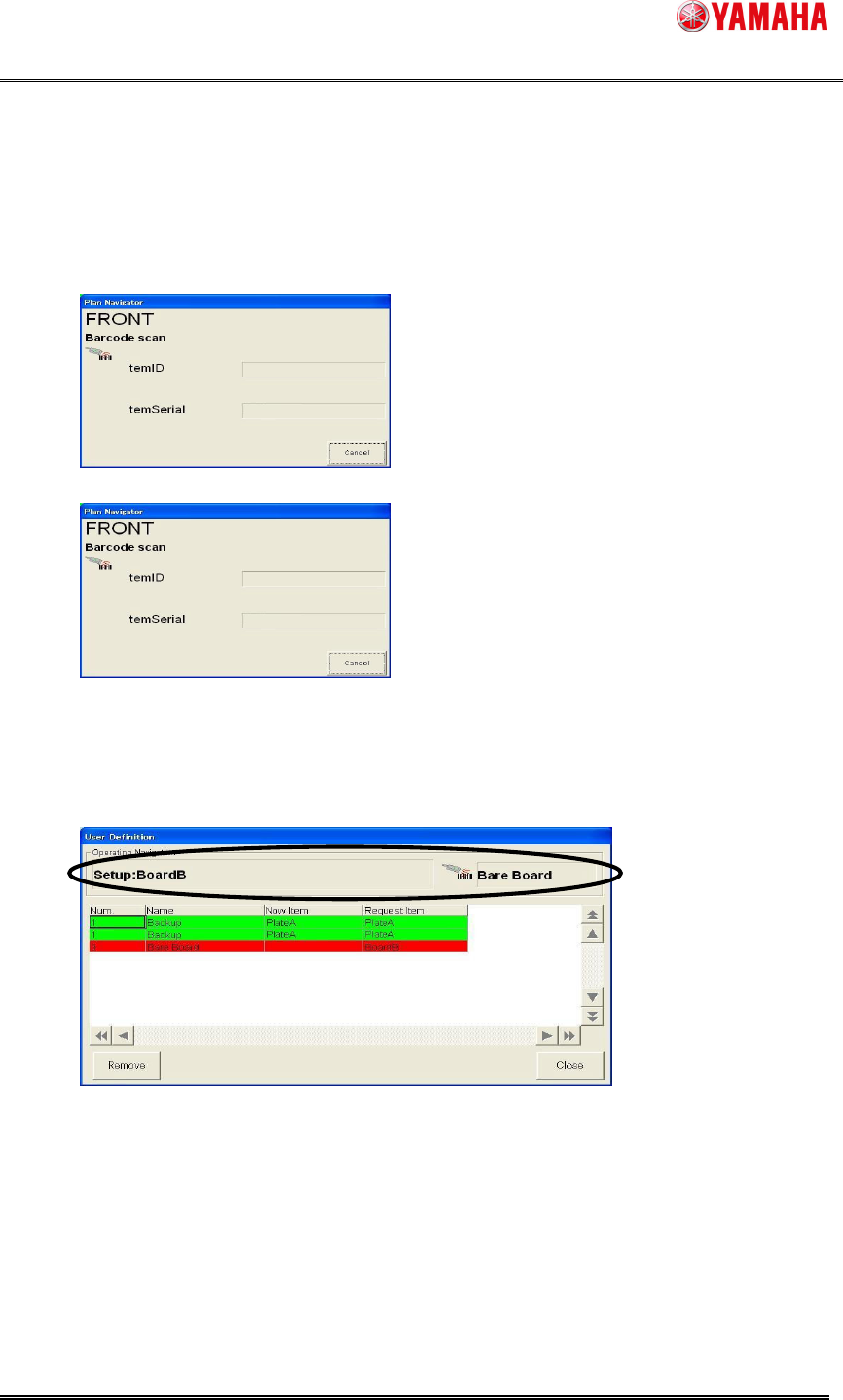

Step2. Scan the barcode of "PlateA"* with the barcode reader.
*Append the barcode that means "PlateA" beforehand.
*The scan is continuously needed when the same two or more “User Definition _
name” are registered.
1. Scan the first piece of “PlateA” when work is completed.
2. Scan the second piece of “PlateA”.
3. Setup of "Backup" is completed.
Step3. One "BoardB" of "Bare Board" is setup.
1. Check the content displayed in the [User Definition] dialog.
2. Setup one "BoardB" according to the content.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50064
7/12

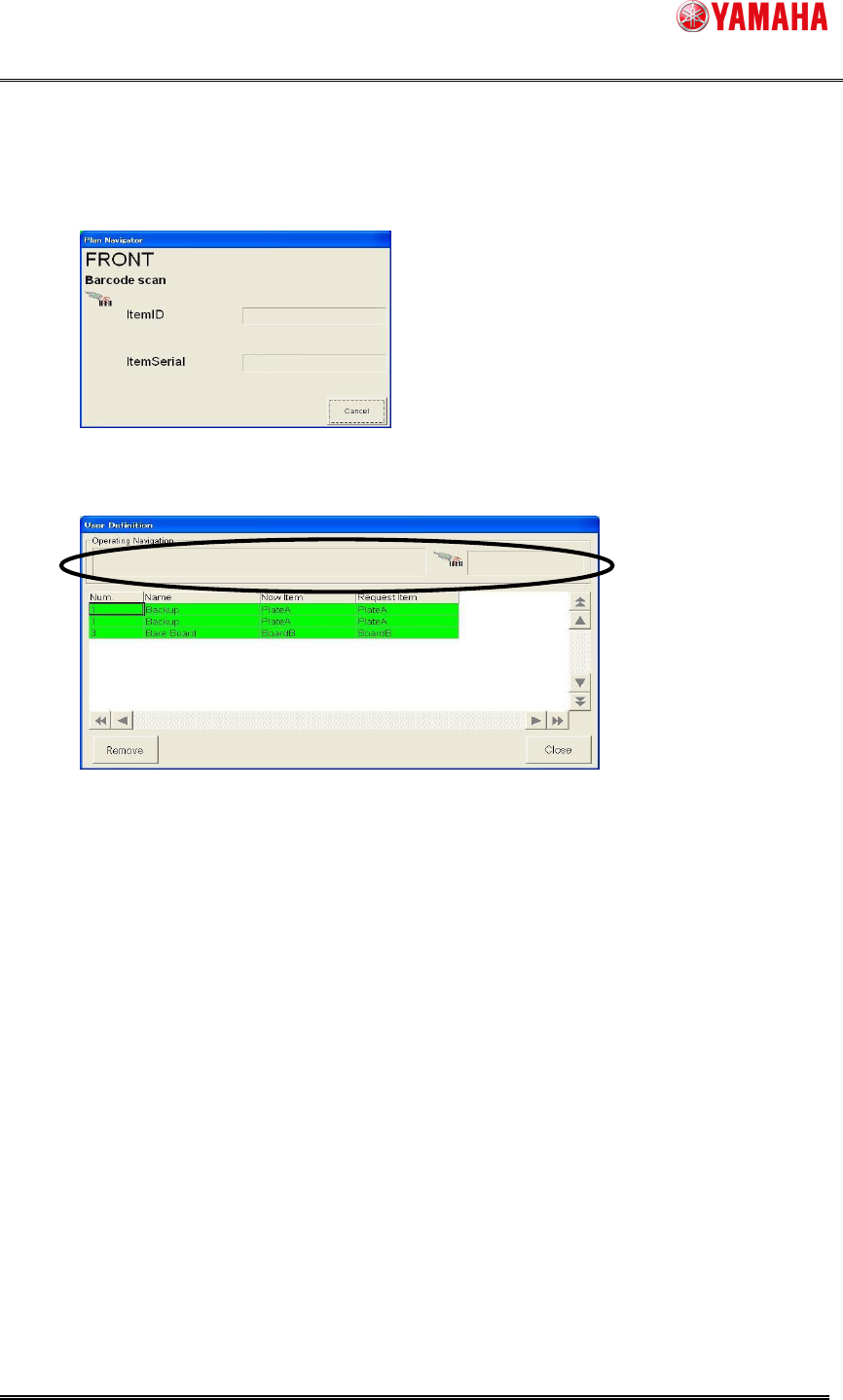

Step4. Scan the barcode of "BoardB"* with the barcode reader.
*Append the barcode that means "BoardB" beforehand.
1. Scan “BoardB” when work is completed.
Step5. The operating navigation is not displayed, and setup is completed.
