M1plus_maintenancePL.pdf - 第17页
No. Part No. Part Name Qty Remarks Drawing Name Drawing No. 1 LG0-M34A0-00X SOCKET,COUPLER 60 2 LG0-M34H0-00X BOARD,FBD 1 3 LG0-M34H1-00X BOARD,FBC 2 CFB WAGON STD LG0-M3700-100 1/3 2 3 1 CFB Wagon

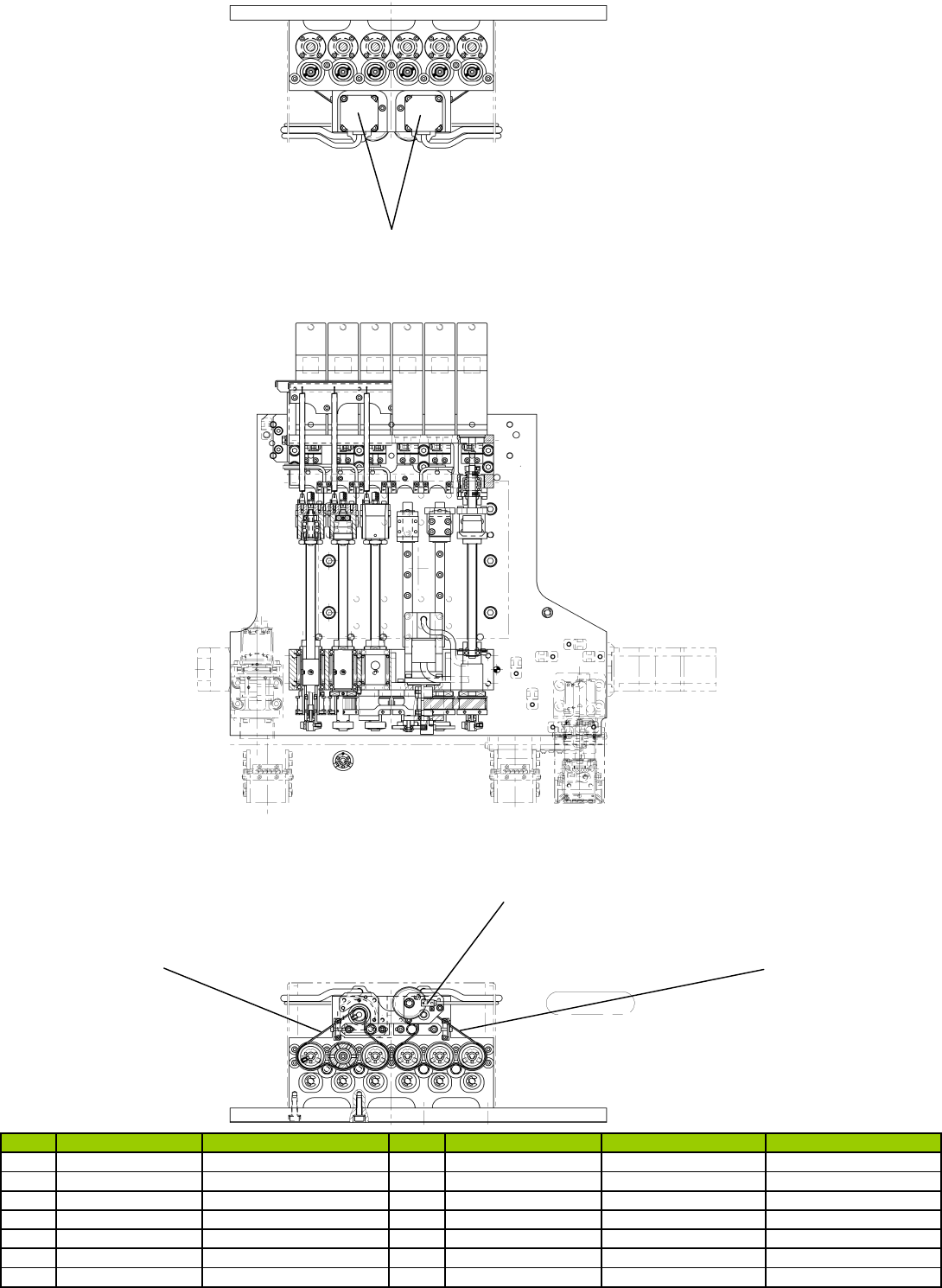

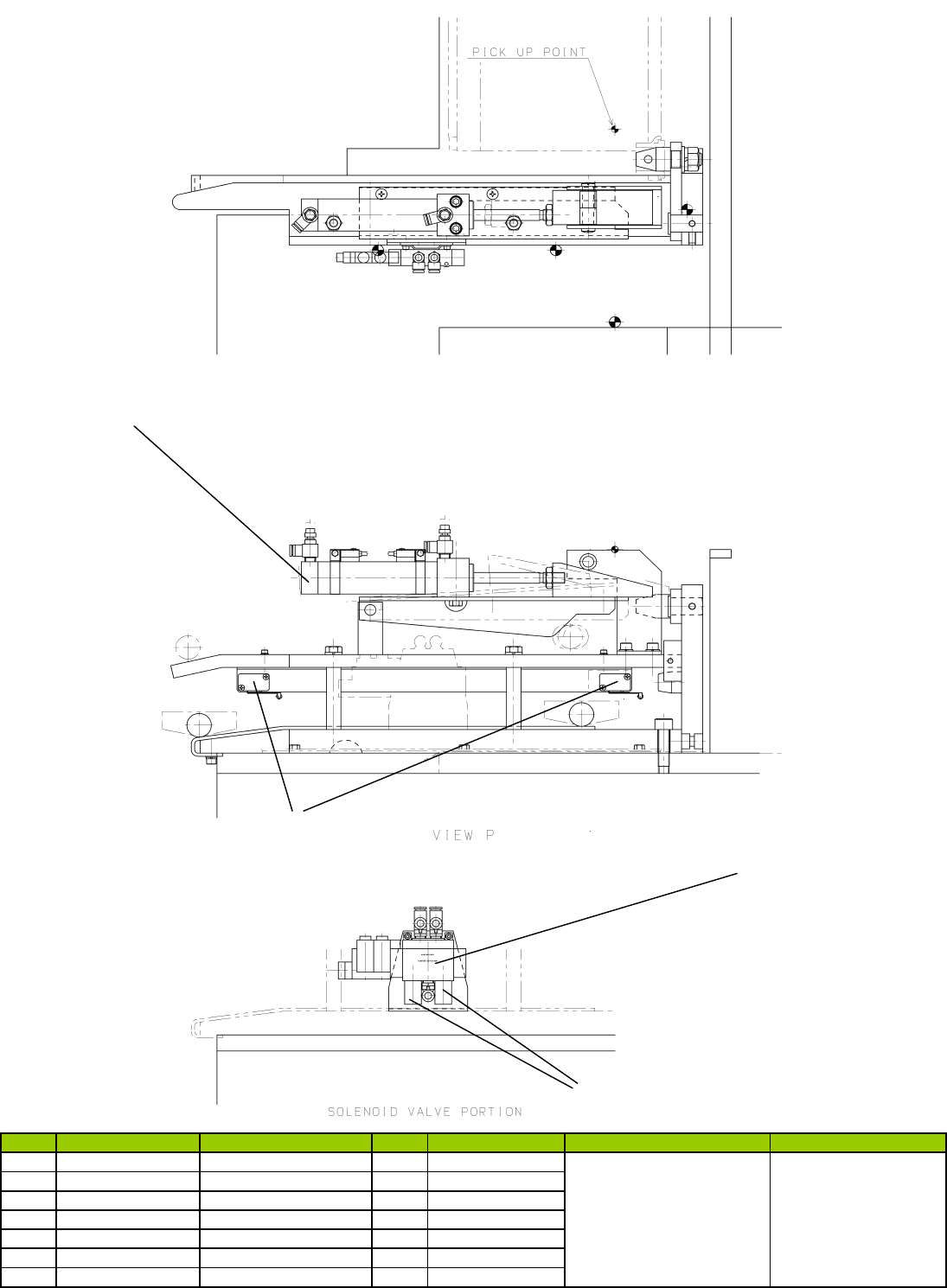

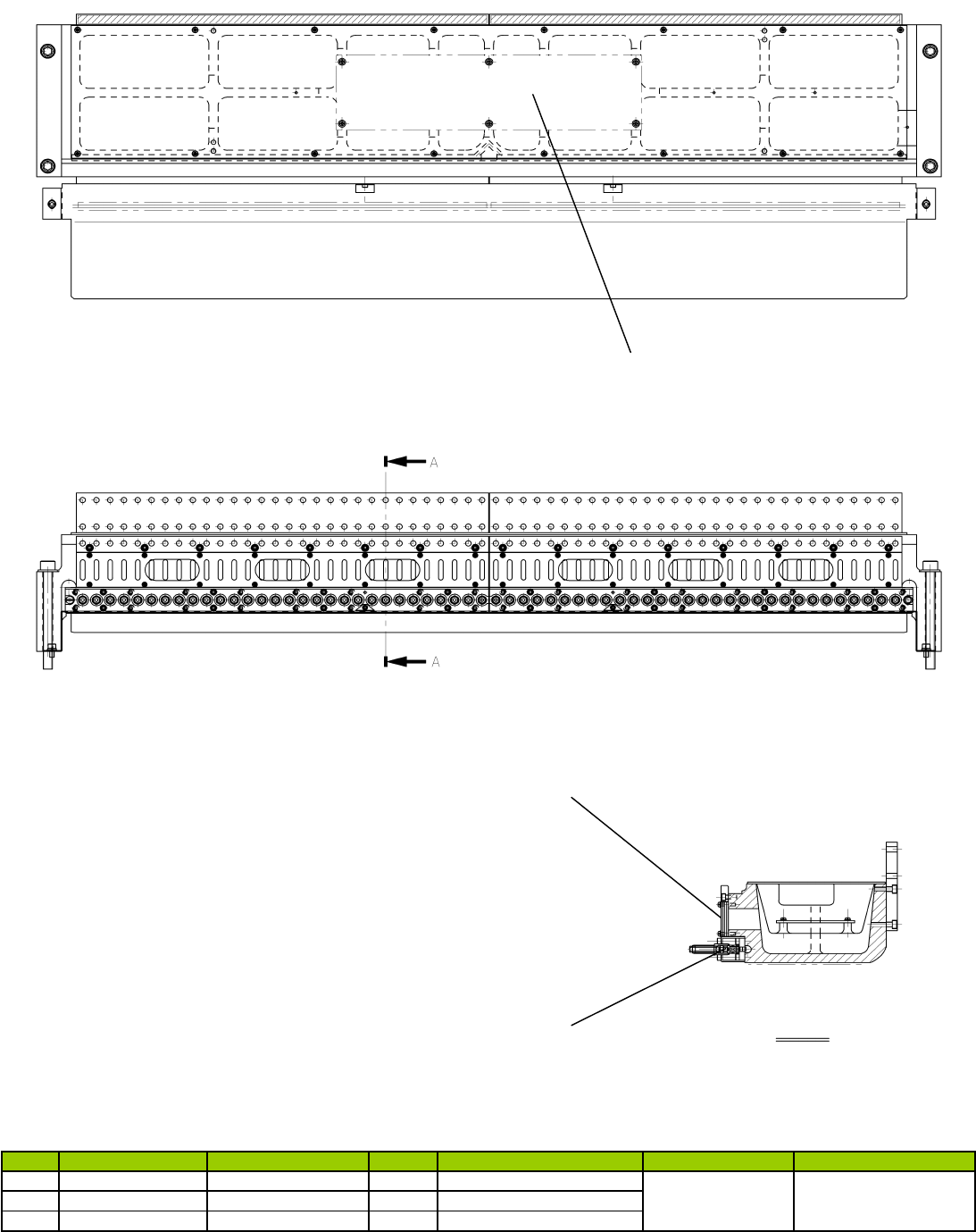

No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LC0-M34A5-00X CYL.,ASSY. 1
2
LG0-M34A6-00X CYL. 1
3
LC0-M34KB-00X SENSOR,CYL.ASSY. 2
4
LC0-M34A7-00X VALVE,ASSY. 1
5
LG0-M34A8-00X SOLENOID VALVE 1
6
LG0-M34AE-00X SILENCER 2
7
LG0-M34H4-00X MICRO SWITCH 2
FEEDER BANK CFB TYPE LG0-M3400-300 2/2
1 (2、3)
4 (5)
6
7
Feeder Bank(CFB Type)
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG0-M34A0-00X SOCKET,COUPLER 60
2
LG0-M34H0-00X BOARD,FBD 1
3
LG0-M34H1-00X BOARD,FBC 2
CFB WAGON STD LG0-M3700-100 1/3
2
3
1
CFB Wagon
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG0-M71CB-00X BELT R 2 HEAD SEC (R-AXIS) LC0-M7100-000 2/3
2
LC0-M71K6-00X SENSOR ASSY. 1 R1-ORG.SENSOR HEAD SEC (R-AXIS) LC0-M7100-000 2/3
3
LG0-M71H2-00X PHOTO SENSOR 1
4
LC0-M71K9-00X SENSOR ASSY. 1 R2-ORG.SENSOR HEAD SEC (R-AXIS) LC0-M7100-000 2/3
5
LG0-M71H4-00X PHOTO SENSOR 1
6
LC0-M8612-00X R-AXIS MOTOR ASSY. 2
7
90K55-3U1KK0 MOTOR ASSY. 2 HEAD SEC (R-AXIS) LC0-M7100-000 2/3
1 1
2 (3)、4 (5)
6 (7)
Head(R-axis)
