No. Part No. Part Name Qty Remarks Drawing Name Drawing No. 1 LG1-M26AE-50X CYLINDER ASSY1 1 Plate,Clamp Y-AXIS SEC LG1-M2650-000 2 LG1-M26A0-00X AIR CYLINDER 1 Plate,Clamp 3 LG1-M26A7-00X BELT,TIMING 2 Slider(Hook)/Shut…
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG1-M11K0-50X SV ASSY. 1 SV1(Pallet Stopper Off)
2
LG1-M11K1-50X SV ASSY. 1 SV2(Pallet Clamp Off)
3
LG1-M11K2-50X SV ASSY. 1 SV3(Hook Up)
4
LG0-M90AK-00X MUFFLER 2 BASE SEC LG1-M1150-000
5
LG0-M13H1-00X SWITCH,SAFETY 1 BASE SEC LG1-M1150-000
6
LG0-M13A7-00X MG.CATCH 1 BASE SEC LG1-M1150-000
1、2、3
4
5
6
MX-20D(Base)
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG1-M26AE-50X CYLINDER ASSY1 1 Plate,Clamp Y-AXIS SEC LG1-M2650-000
2
LG1-M26A0-00X AIR CYLINDER 1 Plate,Clamp
3
LG1-M26A7-00X BELT,TIMING 2 Slider(Hook)/Shuttle Y-AXIS SEC LG1-M2650-000
4
LG1-M26AF-50X CYLINDER ASSY2 1 Hook Y-AXIS SEC LG1-M2650-000
5
LG1-M26A8-00X AIR CYLINDER 1 Hook
6
LG1-M26M0-00X MOTOR ASSY. 2 Slider(Hook)/Shuttle Y-AXIS SEC LG1-M2650-000
7
LG1-M41K5-50X SENSOR ASSY. 1 PH7(Shuttle ORG.) Y-AXIS SEC LG1-M2650-000
8
LG1-M41K1-50X SENSOR ASSY. 1 PH5(Hook ORG.) Y-AXIS SEC LG1-M2650-000
9
LG1-M41K8-50X SENSOR ASSY. 1 PH11(Shuttle Detect) Y-AXIS SEC LG1-M2650-000
4 (5) 8 7
1 (2)
3
6
9
MX-20D(Y-axis)
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG1-M17AJ-50X CYLINDER ASSY. 1 Z-AXIS SEC LG1-M1750-000
2
LG1-M17A0-00X AIR CYLINDER 1
3
LG1-M17AA-00X BELT,TIMING 1 B150S5M1055(Endless)
4
LG1-M17A9-00X BELT,TIMING 1 B150S5M350(Endless)
5
LG1-M17M0-00X MOTOR ASSY. 1
6
LG1-M17K2-500 LIMIT SWITCH ASSY. 1 LS2

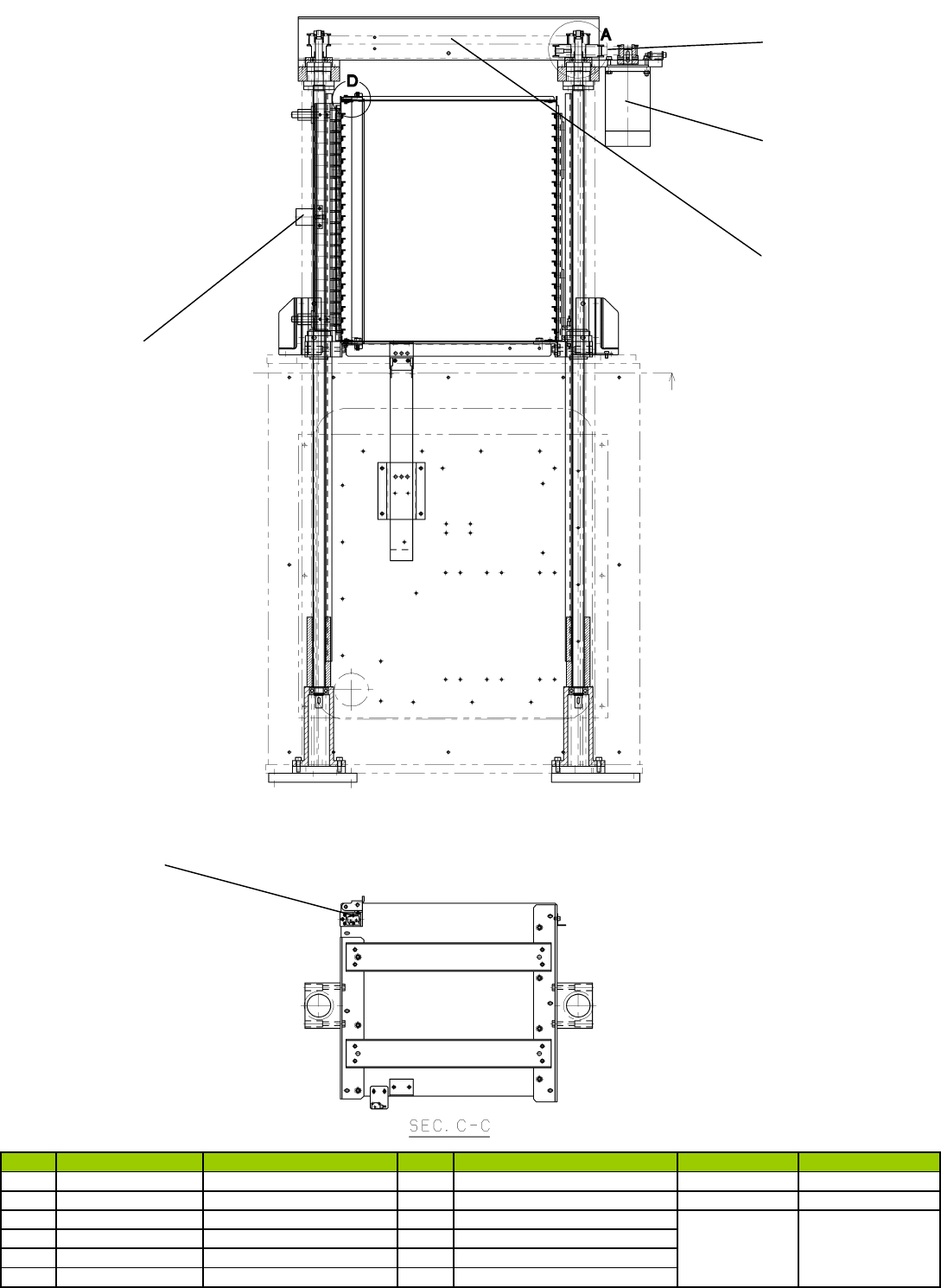

Z-AXIS SEC LG1-M1750-000
4
5
3
1 (2)
6
MX-20D(Z-axis)
