No. Part No. Part Name Qty Remarks Drawing Name Drawing No. 1 LC1-M13H4-00X SAFETY SW ASSY. 2 M1plus COVER ASSY 4/4 LC0-M1300-000 4/4 2 K93-M1388-00X MG.CATCH 4 No Switch 3 KL3-M1348-10X GAS SPRING 4 M1plus COVER ASSY 3/…

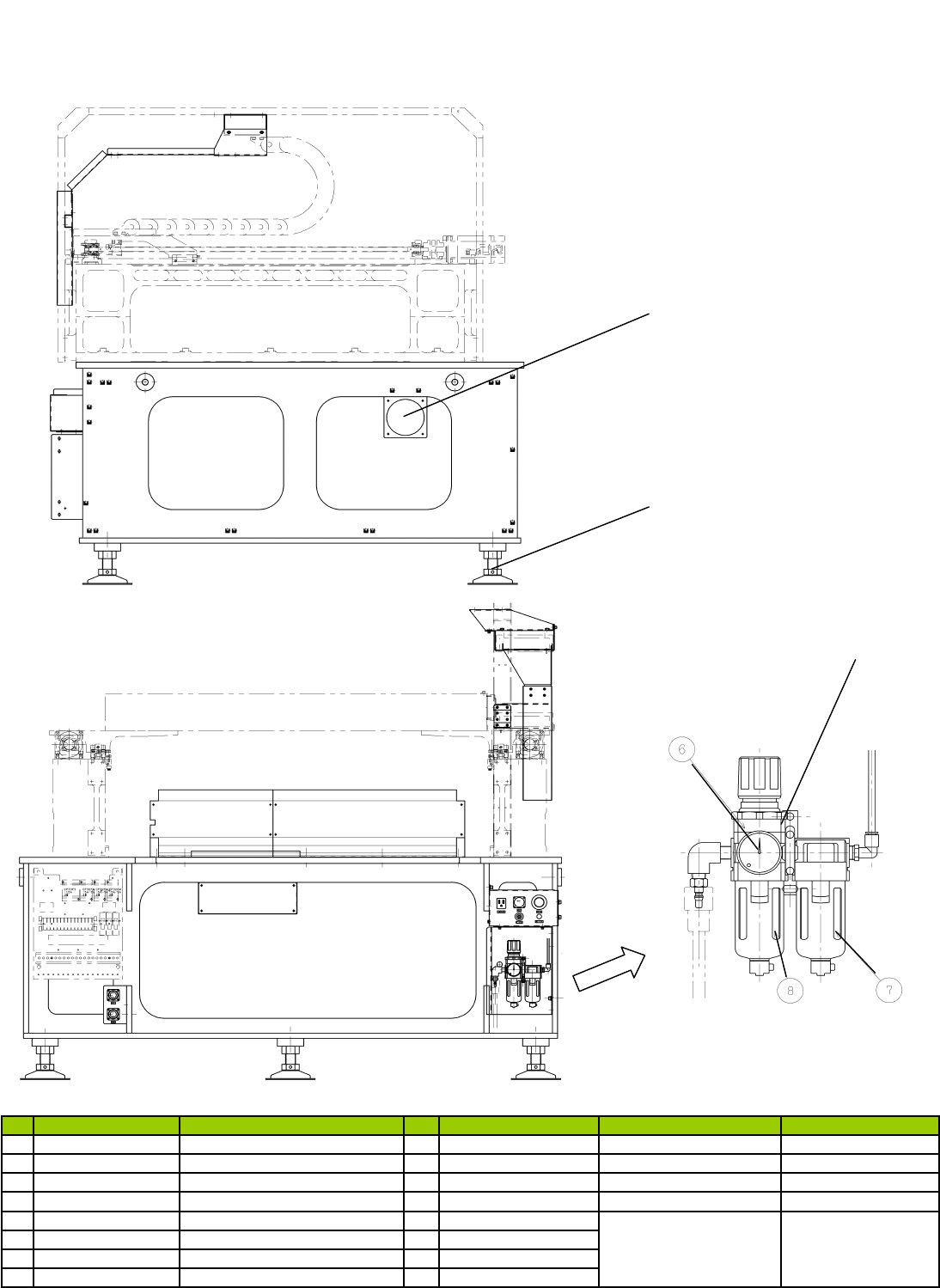

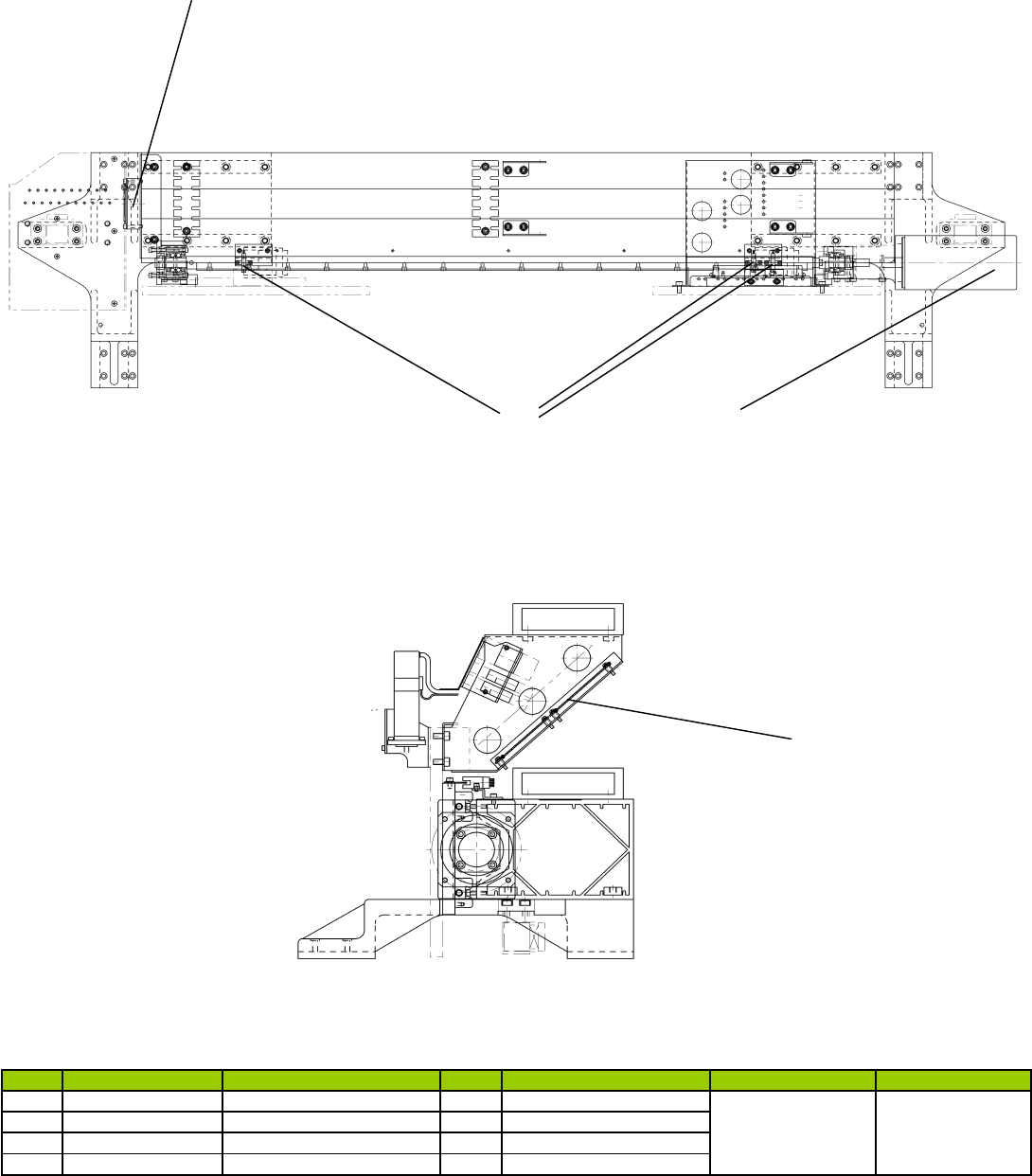

No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LC0-M11K7-00X FAN ASSY. 2 ELE BOX 0LG0M4XXX-111
2
LG0-M11AR-00X LEVELING BOLT ASSY. 6 M1plus BASE ASSY 1/2 LC0-M1100-000 1/2
3
4
5
LG0-M11C0-10X REGURATOR ASSY. 1
6
LG0-M11K4-00X PRESSURE GAUGE ASSY. 1
7
LG0-M86A2-10X FILTER ELEMENT 1 MIST SEPARATOR
8
LG0-M86A2-00X FILTER ELEMENT 1 AIR FILTER
REGURATOR ASSY LG0-M11C0-100
1
2
5
6
78

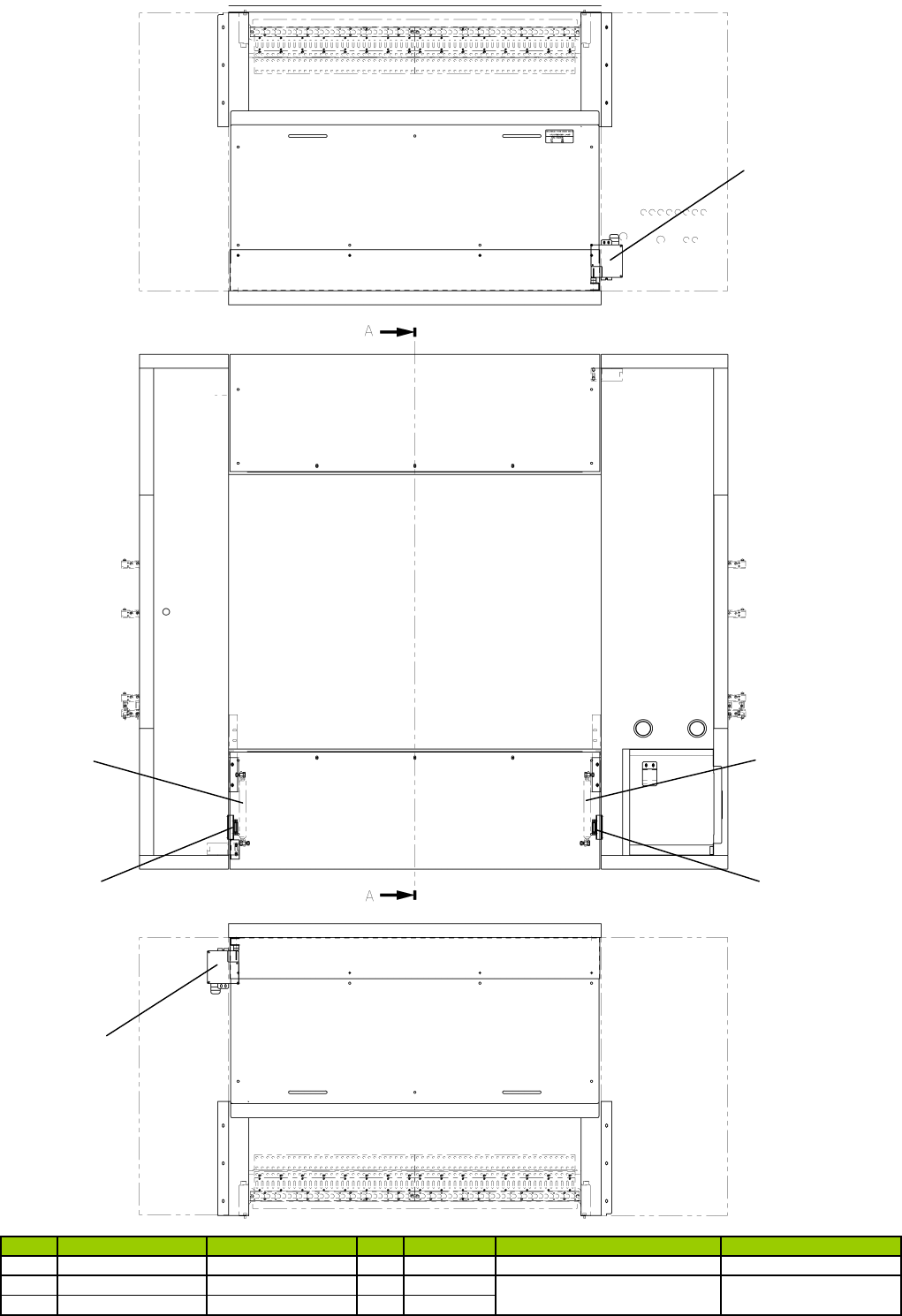

Base section
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LC1-M13H4-00X SAFETY SW ASSY. 2 M1plus COVER ASSY 4/4 LC0-M1300-000 4/4
2
K93-M1388-00X MG.CATCH 4 No Switch
3
KL3-M1348-10X GAS SPRING 4
M1plus COVER ASSY 3/4 LC0-M1300-000 3/4
1
1
3
2
3
2
Cover Section
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LC0-M22K6-00X FAN ASSY. 1
2
LC0-M22M0-00X MOTOR ASSY. 1
3
LG0-M71H1-10X BOARD,HIO7-1 1
4
LG0-M22H0-00X PHOTO SENSOR 3 X-Y ORG.,OR.
X-AXIS ASSY LC0-M2200-000
1
4
2
3
X-axis
