No. Part No. Part Name Qty Remarks Drawing Name Drawing No. 1 LG8-M180C-00X HOOK 1 2 LG8-M1811-00X STOPPER 1 3 LG8-M18A1-00X CYLINDER ASSY. 1 4 LG8-M18A8-00X BRG. 2 5 LG8-M18A6-00X BELT 3 1 6 LG8-M18K1-00X SENSOR,PH ASSY…
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG8-M18A4-00X BELT 1 1
2
LG8-M18AA-00X SPRING 2
3
LG8-M18AB-00X BRG. 2
4
LG8-M18A5-00X BELT 2 1
5
LG8-M18K6-00X SV ASSY. 1 Hook Lock
6
LG8-M180K-00X GUIDE,PALETTE RF 1
7
LG8-M180L-00X GUIDE,PALETTE RR 1
8
LG8-M180M-00X GUIDE,PALETTE LF 1
9
LG8-M180N-00X GUIDE,PALETTE LR 1
10
90K55-4W1K30 MOTOR,SERVO ASSY. 1 Hook axis
11
LG8-M18K7-00X SENSOR,PH ASSY. 1 PALLET SENSOR(Interlock)
12
LG8-M18K2-01X SENSOR,PH ASSY. 1 HOOK ORG.
HOOK AXIS
ASSY
LG8-M1800-010
1/2
2
3 4
8 9
6 5 7
10
1 11 12

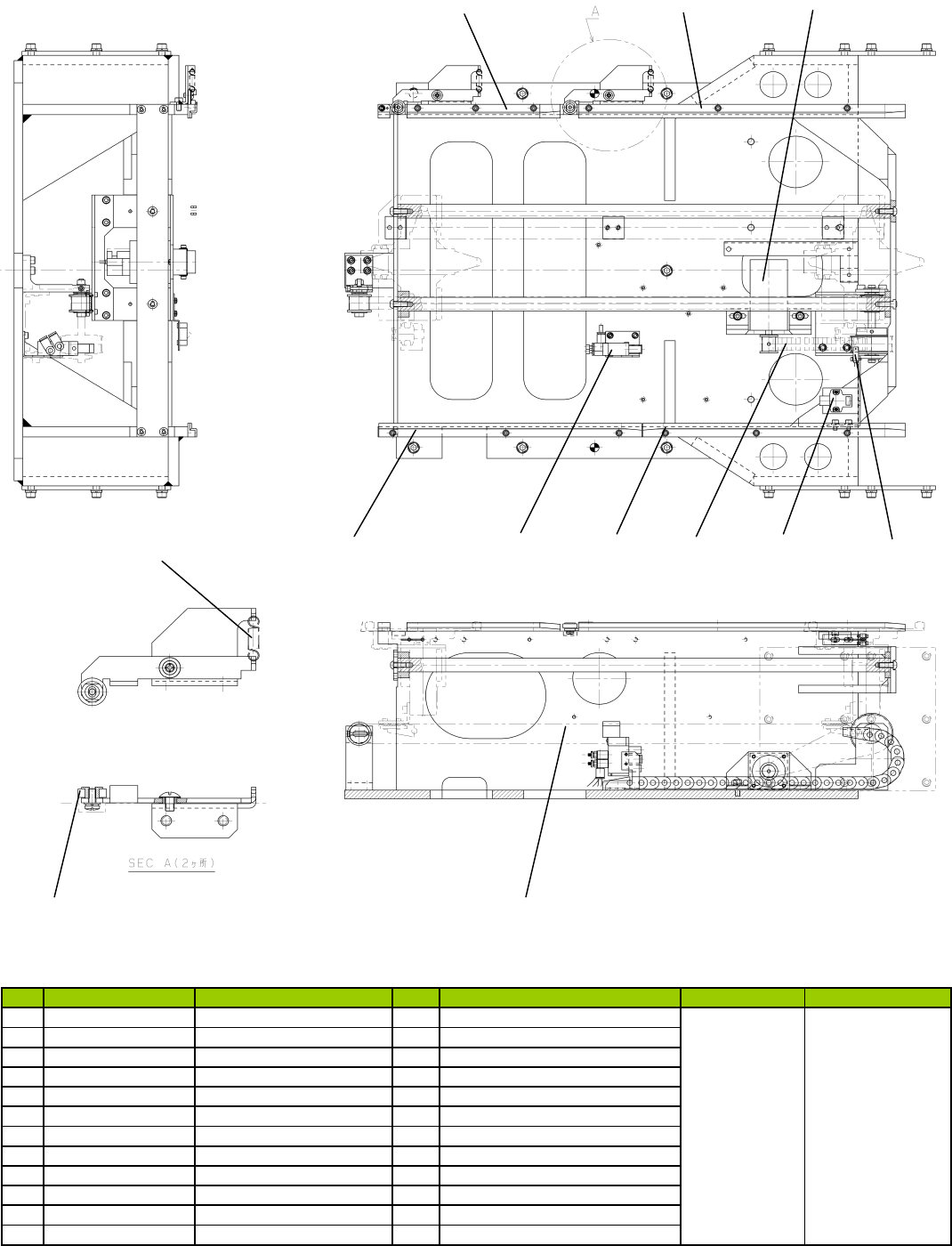

MXR-20(Hook axis 1 of 2)
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG8-M180C-00X HOOK 1
2
LG8-M1811-00X STOPPER 1
3
LG8-M18A1-00X CYLINDER ASSY. 1
4
LG8-M18A8-00X BRG. 2
5
LG8-M18A6-00X BELT 3 1
6
LG8-M18K1-00X SENSOR,PH ASSY. 1 PALLET SENSOR(Hook side)
7
LG8-M18K5-00X SENSOR,CYL.ASSY. 1 Hook Lock/Unlock
MXR-20 HOOK
ASSY
LG8-M1800-010
2/2
3 7
6
2
4 1
5

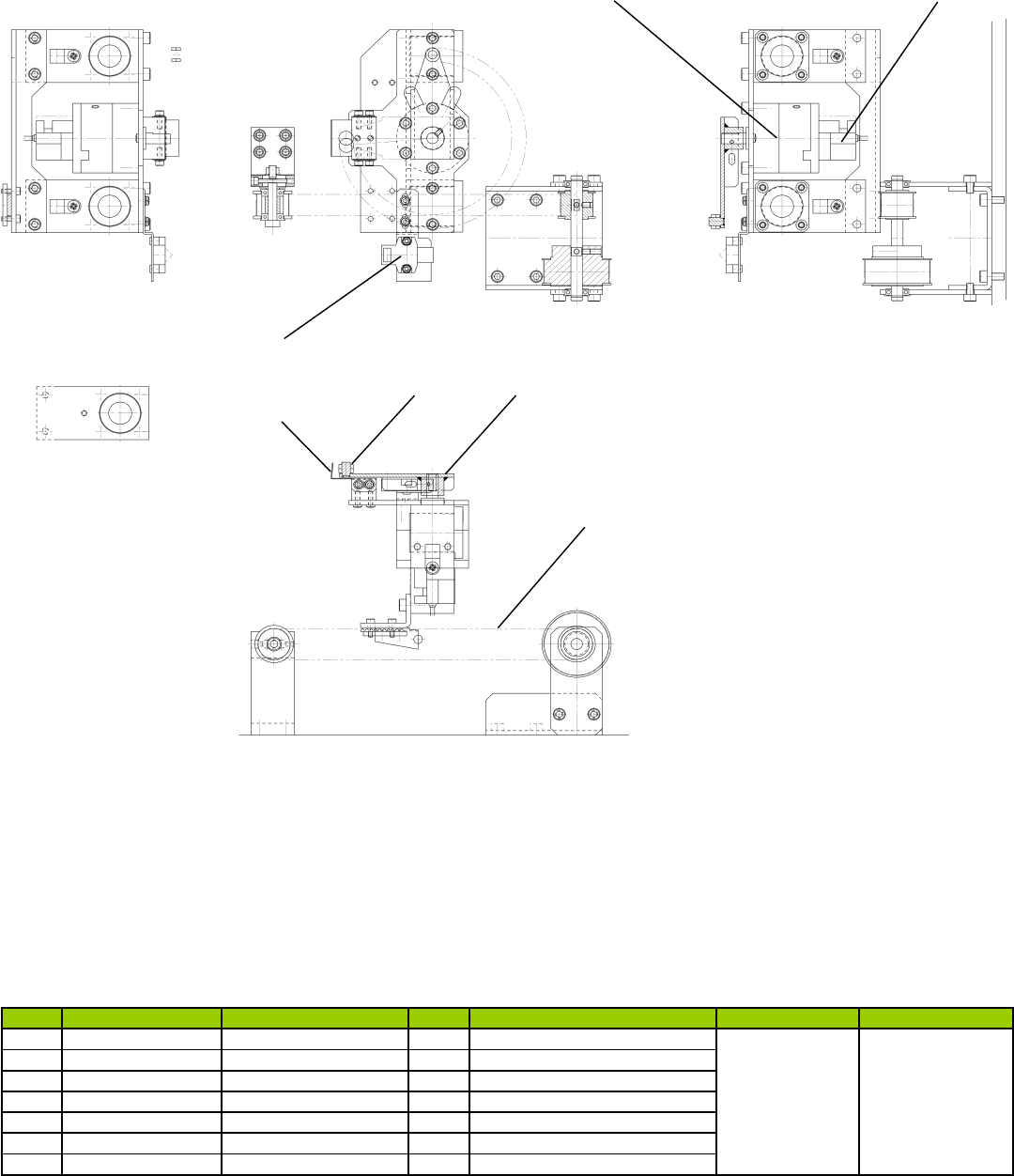

MXR-20(Hook axis 2 of 2)
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG8-M13K1-00X SV ASSY. 1 Cover Lock
2
LG8-M17K4-00X SV ASSY. 1 Stocker Open/Close
3
LG8-M41H1-11X BOARD,ATST-1 1
4
LG0-M41H2-00X SERVO DRIVER 3 2
5
LG0-M42HG-00X RELAY 1
CONTROL BOX ASSY LG8-M4100-000
3
5
1
4
2
MXR-20(Control Box)
