Page SAMSUNG TECHWIN 39 SM481 X-Y Frame Ass’y(3/4) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J70541 1 15A COVER BKT 1 2 FC09-002206 A BKT SIDE COVER 1 1 3 J66061021A BALL SCREW 1 4 EP…
Page
SAMSUNG TECHWIN
38
SM481
X-Y Frame Ass’y(3/4)
3
14
1
2
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
Page
SAMSUNG TECHWIN
39
SM481
X-Y Frame Ass’y(3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70541115A COVER BKT 1
2 FC09-002206A BKT SIDE COVER 1 1
3 J66061021A BALL SCREW 1
4 EP08-000139 SERVO MOTOR 1
5 J6612036A COUPLING 1
6 FC07-000386A SQ80 Y MOTOR BLOCK 1
7 J6601124A SUPPORT UNIT 1
8 FC29-001533A STOPPER Y BS F 1
9 J72541012A STOPPER Y B SCREW 1
10 FC07-000528A BLOCK Y BS EXT 1
11 J71541087B STOPPER EXT Y BS 1
12 J70541120C BS REAR SUPPORT 1
13 J67191018A OIL SEAL 2
14 J70541121B BRG INNER SPACER 2
15 J66011036A ANGULAR BEARING 1
16 J70541122B BRG OUTER SPACER 1
17 J70541119B BRG SUPPORT X 1
18 J70541123C BEARING COVER Y 1
19 J6608003A BEARING NUT 1
Page
SAMSUNG TECHWIN
40
SM481

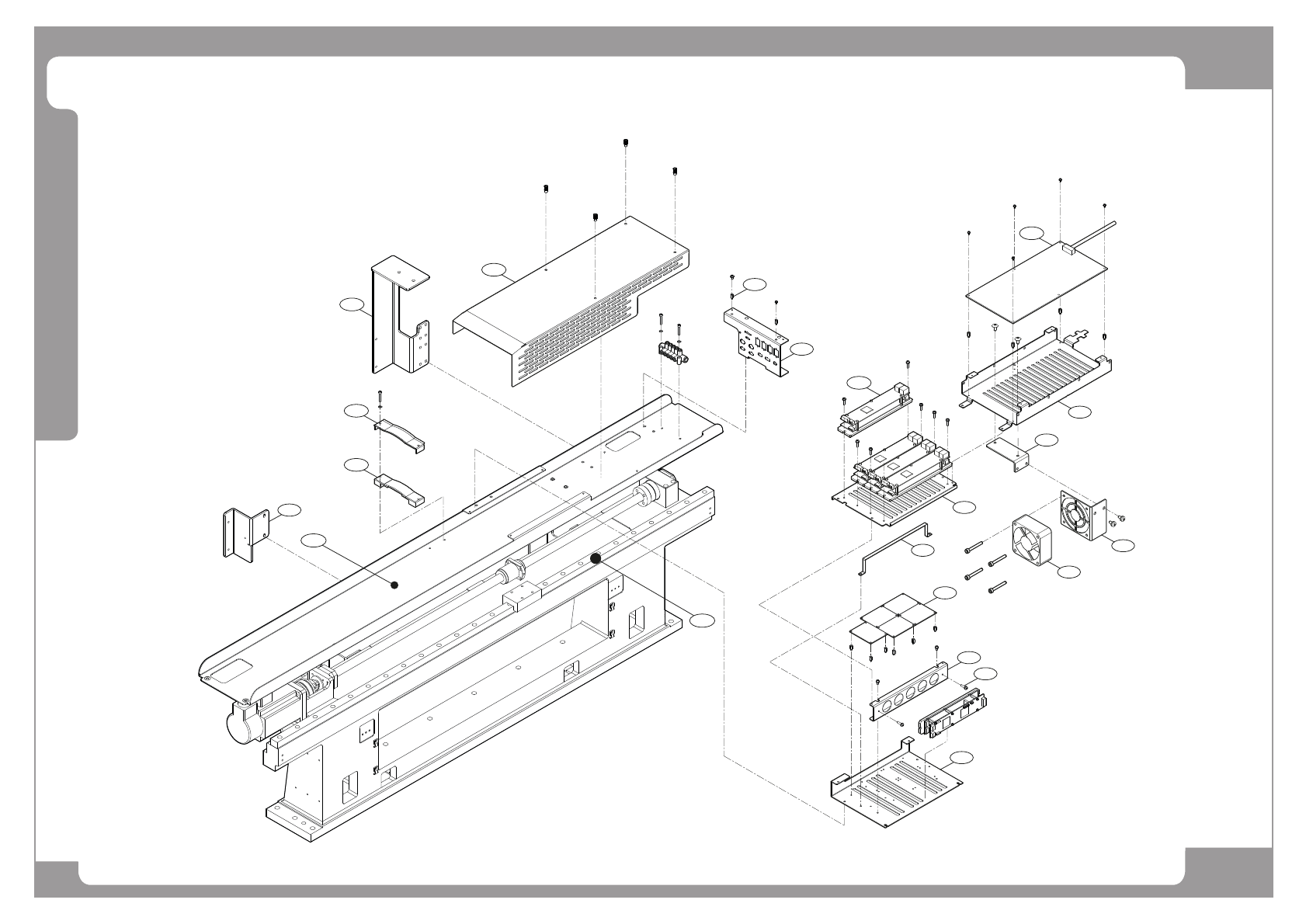

X-Y Frame Ass’y(4/4)
22
7
8
11
12
13
1
21
10
3
2
4
5
9
14
15
16
17
19
18
20
