Page SAMSUNG TECHWIN 61 SM481 Head Ass’y(3/5) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005340 A P RESSURE SENSOR BOARD 1 2 J67081017 A SUCT ION FIL TER 10 3 HP06-000074 STRAIGHT…
Page
SAMSUNG TECHWIN
60
SM481

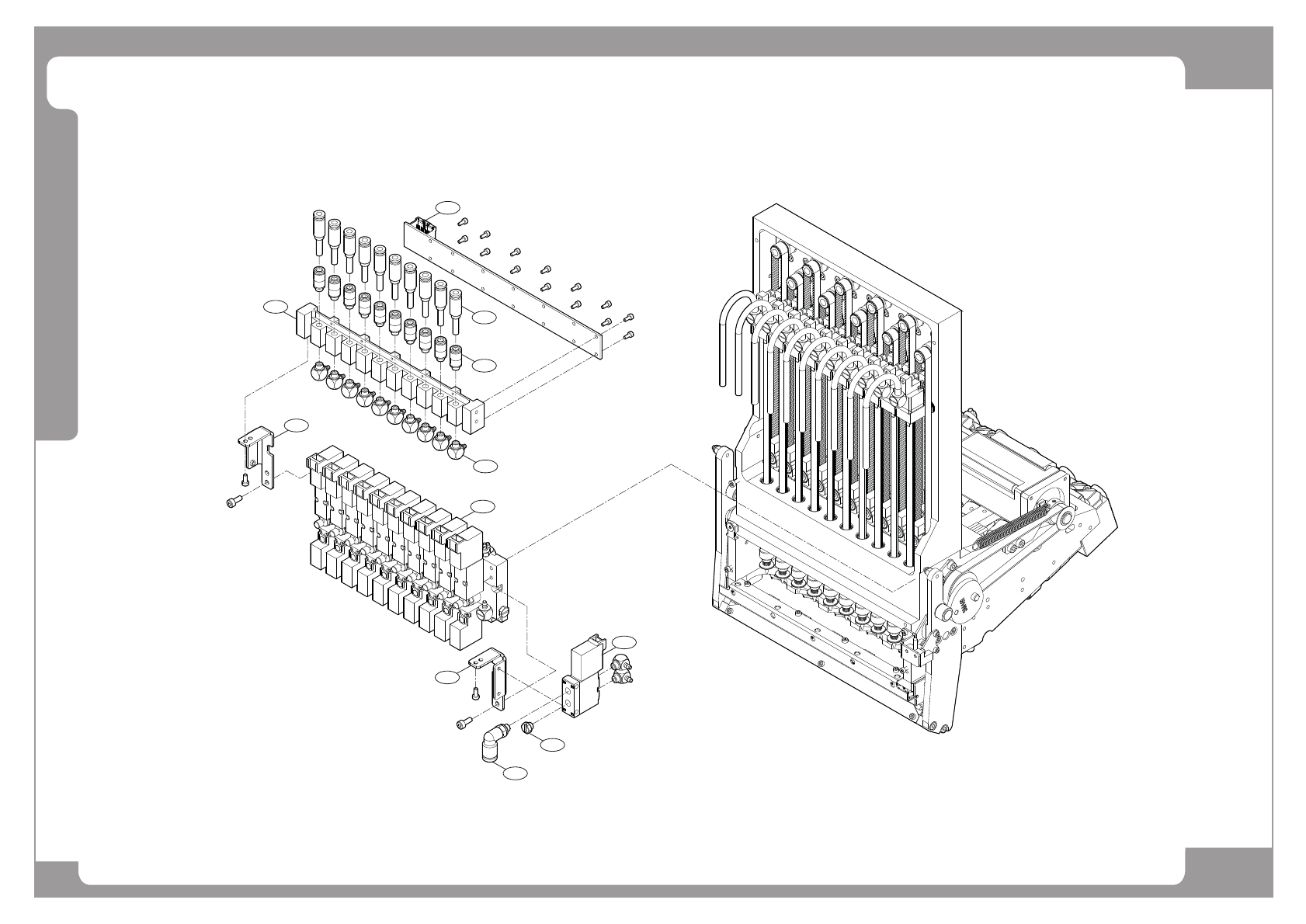

Head Ass’y(3/5)
1
2
8
6
9
3
10
11
4
7
5
Page
SAMSUNG TECHWIN
61
SM481
Head Ass’y(3/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005340A PRESSURE SENSOR BOARD 1
2 J67081017A SUCTION FILTER 10
3 HP06-000074 STRAIGHT FITTING 10
4 HP09-000328A P_SENSOR_BLOCK 1
5 J6711046A BOB ELBOW FITTING 10
6 FC09-001523A MANIFOLD_PLATE_2 1
7 HP09-000129 HEAD_AIR_MODULE 1
8 FC09-001522A MANIFOLD_PLATE_1 1
9 HP14-000344 OVER BLOW VALVE 1
10 J6712015A PLUG_FITTING 1
11 J67111192A ELBOW_FITTING 1
Page
SAMSUNG TECHWIN
62
SM481

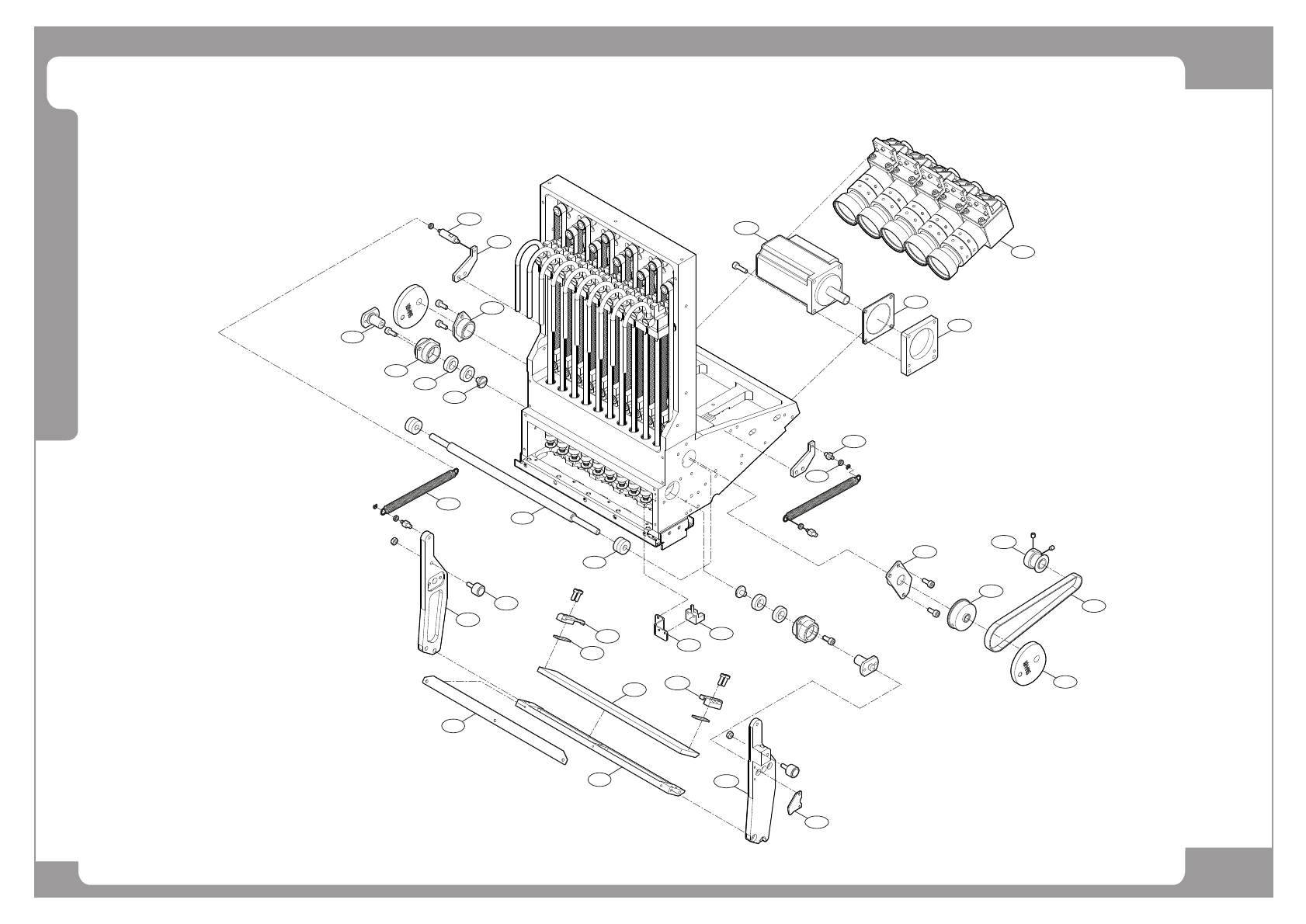

Head Ass’y(4/5)
27
3
4
19
6
7
5
28
26
30
31
1
32
20
16
15
21
14
24
23
33
2
22
25
29
11
13
12
10
9
8
17
18
