MODEL HS-G300L 1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE HL-2 list-1 101 630162041 1 BLOCK 1 864HL-100-001 21 1G5630 102 6301314143 PLA TE 1 864HL-100-002 21 1D9982 103 6301257631 PIN,GUIDE 6 864…
MODEL HS-G300L
0712-002
HL-2 illust-2
102
BLOCK4
104
103
104
103
101
105
178
152
105
178
152
185
185
185
164
・
174
・
175
163
131
134
160
133
132
132
135
151
139
182
・
166
・
167
136
137
157
106
121
124
145
123
178
・
166
・
167
153
155
122
121
158
184
183
116
118
119
116
116
114
114
117
112
167
151
・
166
・
167
154
・
168
・
169
1
17
167
115
113
113
151
・
166
・
167

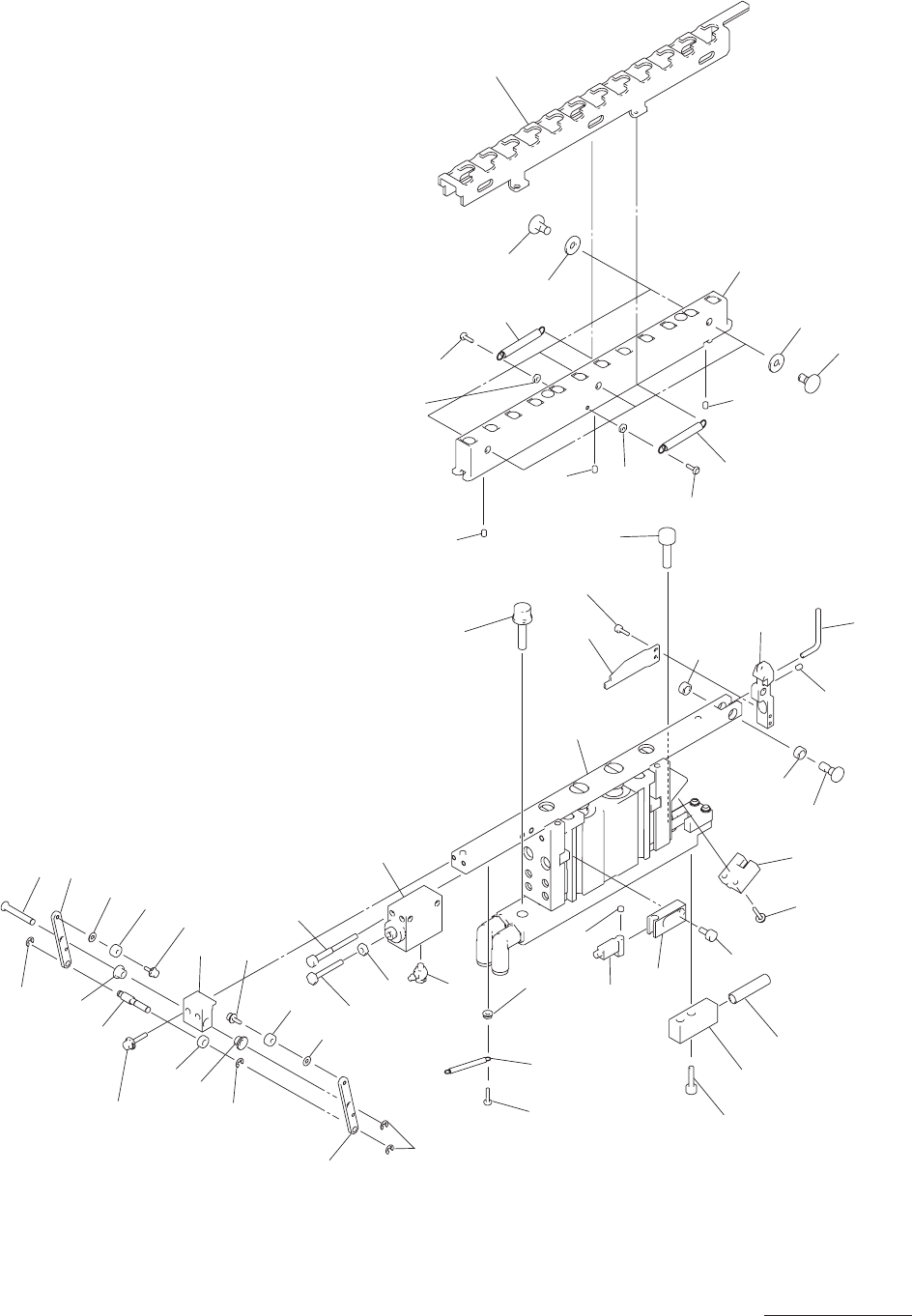

ノズルストッカ
1,4 NOZZLE STOCKER 1,4
Fig. HL-2
ノズルストッカ
Nozzle Stocker
MODEL HS-G300L
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
HL-2 list-1
101 6301620411 BLOCK 1 864HL-100-001 211G5630
102 6301314143 PLATE 1 864HL-100-002 211D9982
103 6301257631 PIN,GUIDE 6 864HL-100-003 216F0867
104 6300305678 BUSH,BEARING 6 864HL-100-004 222A0072
105 6300017915 SPRING,TENSION 2 864HL-100-005 222N0067
106 6301287577 MECH PARTS(MAGNET) 1 864HL-100-006 226J1958
112 6301267210 GUIDE 1 864HL-100-012 212A2061
113 6300769265 BUSH,BEARING 2 864HL-100-013 222A0129
114 6301257655 LEVER 2 864HL-100-014 216S2617
115 6301257662 PIN,HINGE 1 864HL-100-015 216D0439
116 4110009304 RING E 2 4 864HL-100-016 221K0095
117 6300069457 BEARING,RADIAL 2 864HL-100-017 222D0131
118 6300775679 BEARING,RADIAL 1 864HL-100-018 222D0308
119 6301257679 PIN,HINGE 1 864HL-100-019 216D0440
121 6301258744 CYLINDER 1 864HL-100-021 224C0535
122 6300465556 PIPE FITTINGS 1 864HL-100-022 225F0253
123 6300017434 SPRING,TENSION 1 864HL-100-023 222N0019
124 6301257686 BRACKET 1 864HL-100-024 211F8213
131 6301266909 BLOCK 1 864HL-100-031 211G3505
132 6301256474 BUSH,BEARING 2 864HL-100-032 222A0151
133 6301257709 PIN,HINGE 1 864HL-100-033 216D0441
134 6301400778 LEVER 1 864HL-100-034 216S2914
135 6301267227 PLATE 1 864HL-100-035 211D9588
136 6301257730 BRACKET 1 864HL-100-036 211F8214
137 6300022704 SPRING,COMP 1 864HL-100-037 222M0657
139 6300971439 SENSOR,PHOTO 1 B0922 864HL-100-039 23G10070
145 6301281131 CYLINDER 1 B0918 864HL-100-045 224C0544
151 6300007466 BOLT,HEX-SCT 4 M2X6 864HL-100-501 221A0001
152 4110392604 SCR PAN 2X6 2 864HL-100-502 221E0483
153 4111406300 SCR PAN 2X8 1 864HL-100-503 221E0484
154 6300007480 BOLT,HEX-SCT 2 M2.5X12 864HL-100-504 221A0003
155 6300007503 BOLT,HEX-SCT 2 M3X6 864HL-100-505 221A0005
157 6300007534 BOLT,HEX-SCT 2 M3X12 864HL-100-507 221A0008
158 6300007589 BOLT,HEX-SCT 2 M3X30 864HL-100-508 221A0013
160 6300081053 SET SCREW 1 M3X3 SET 864HL-100-510 221C0026
163 6300007763 BOLT,HEX-SCT 1 M5X16 864HL-100-513 221A0031
164 6300007770 BOLT,HEX-SCT 1 M5X20 864HL-100-514 221A0032
166 4111412509 WASHER SPR 2 5 864HL-100-516 221H0276
167 4111413605 WASHER V 2X5X0.3 7 864HL-100-517 221H0307
168 4111416606 WASHER SPR 2.5 2 864HL-100-518 221H0279
169 4111413803 WASHER V 2.5X6.5X0.5 2 864HL-100-519 221H0310
174 4111416705 WASHER SPR 5 1 864HL-100-524 221H0287
175 4111414107 WASHER V 5X10X1 1 864HL-100-525 221H0318
178 4111409301 NUT HEX 2 3 864HL-100-528 221F0096
182 4111129001 SCR PAN 2X10 2 864HL-100-532 221E0479
183 4111410000 NUT HEX 3 1 864HL-100-533 221F0100
184 4111424205 BOLT HEX 3X20 1 864HL-100-534 221B0151
185 6300008890 SET SCREW 6 M3X6 SET 864HL-100-535 221C0002
HL-2
GXH-3J 1Unit/1Machine
GXH-3
2Unit/1Machine
